Parts Diagrams |
21008
21008
26004
26004
26004A
26004A
26004A
26004A
26004B
26004B
26004B
26004B
26004C
26004D
26004D
26031
26031A
26031B
26031C
26031D
26031E
27034
27034
27034
27034
27034
27034
92072
92072
92072

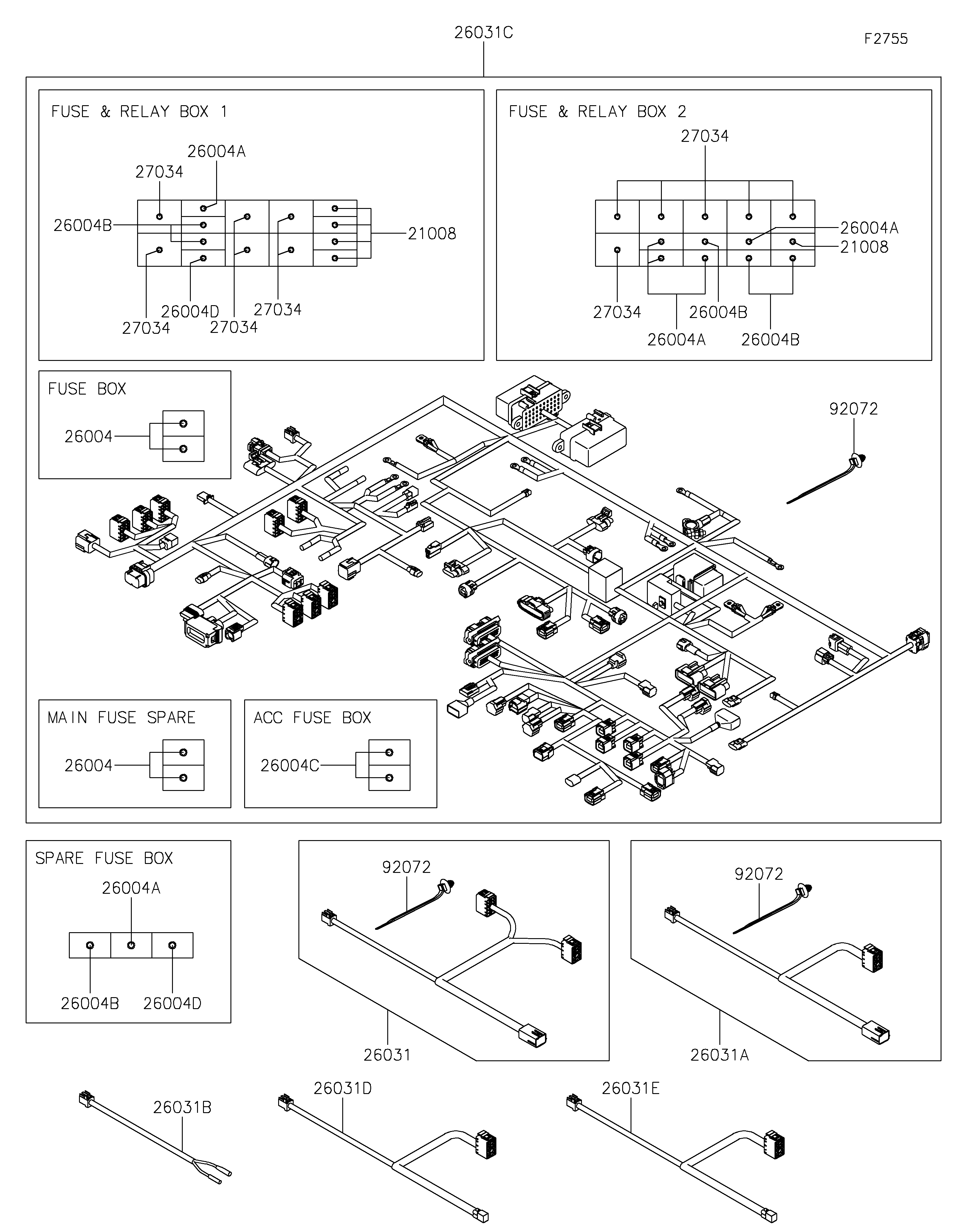

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BREAKER,20A | 21008 | 21008-0017 | 5 | ||
| FUSE-ASSY,SLOW-BLOW,70A | 26004 | 26004-0030 | 4 | ||
| FUSE-ASSY,20A | 26004A | 26004-0033 | 6 | ||
| FUSE-ASSY,10A | 26004B | 26004-0034 | 6 | ||
| FUSE-ASSY,40A | 26004C | 26004-0035 | 2 | ||
| FUSE-ASSY,30A | 26004D | 26004-0043 | 2 | ||
| HARNESS,SUB,DOOR,LH | 26031 | 26031-3942 | 1 | ||
| HARNESS,SUB,DOOR,RH | 26031A | 26031-4015 | 1 | ||
| HARNESS,SUB,ROOM LIGHT | 26031B | 26031-4076 | 1 | ||
| HARNESS,MAIN | 26031C | 26031-4185 | 1 | ||
| HARNESS,SUB,DOOR,RR,LH | 26031D | 26031-4187 | 1 | ||
| HARNESS,SUB,DOOR,RR,RH | 26031E | 26031-4188 | 1 | ||
| RELAY | 27034 | 27034-0013 | 12 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | AR |
| BREAKER,20A | |
| REF # | 21008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY,SLOW-BLOW,70A | |
| REF # | 26004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY,20A | |
| REF # | 26004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY,10A | |
| REF # | 26004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY,40A | |
| REF # | 26004C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY,30A | |
| REF # | 26004D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HARNESS,SUB,DOOR,LH | |
| REF # | 26031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,SUB,DOOR,RH | |
| REF # | 26031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,SUB,ROOM LIGHT | |
| REF # | 26031B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 26031C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,SUB,DOOR,RR,LH | |
| REF # | 26031D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,SUB,DOOR,RR,RH | |
| REF # | 26031E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY | |
| REF # | 27034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BAND,OS170-FT7(BLACK) | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
