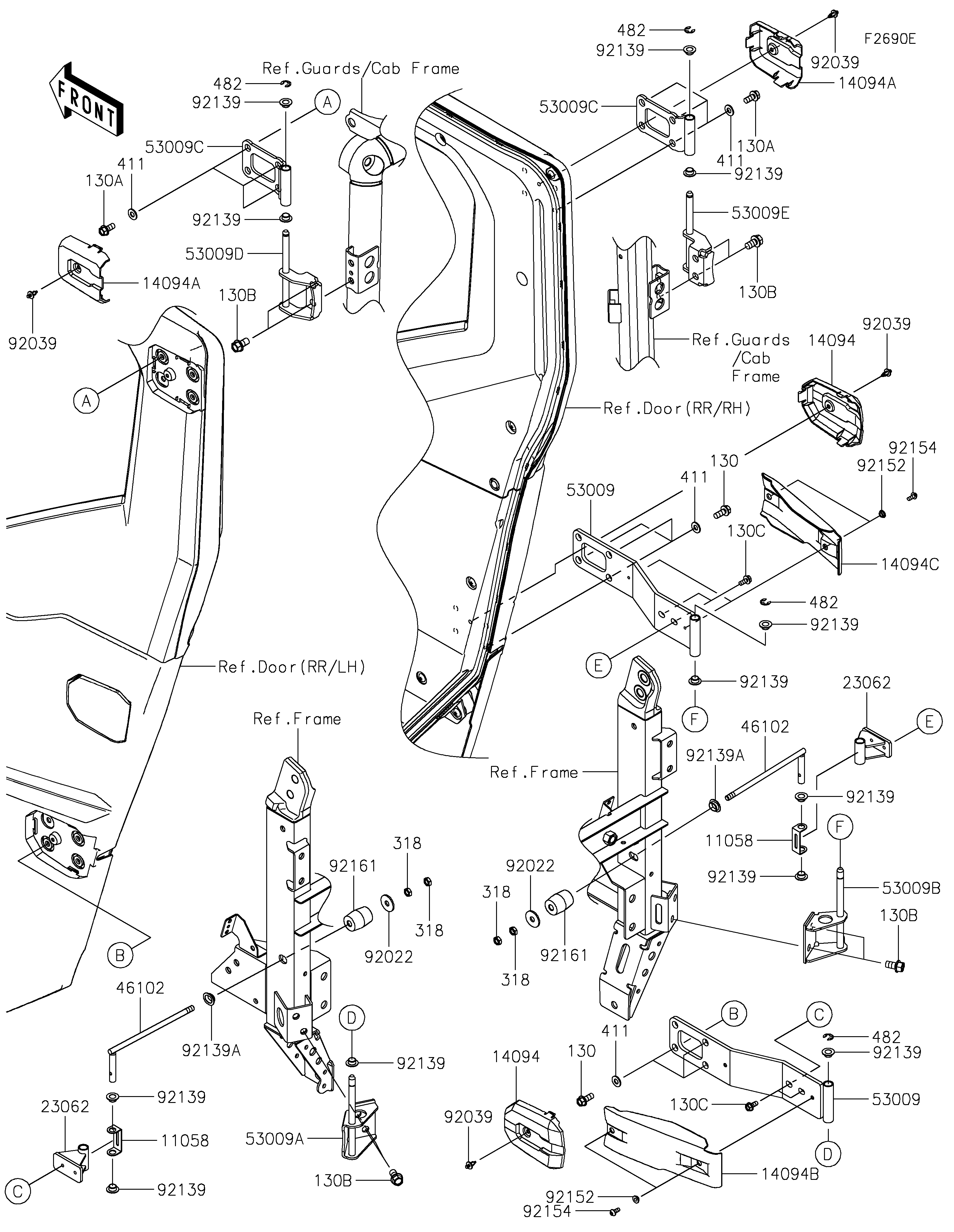

2025 RIDGE XR CREW - Door(RR/Hinge)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
14094
14094
14094A
14094A
14094B
14094C
23062
23062
46102
46102
53009
53009
53009A
53009B
53009C
53009C
53009D
53009E
92022
92022
92039
92039
92039
92039
92139
92139
92139
92139
92139
92139
92139
92139
92139
92139
92139
92139
92139A
92139A
92152
92152
92154
92154
92161
92161
130
130
130A
130A
130B
130B
130B
130B
130C
130C
318
318
318
318
411
411
411
411
482
482
482
482
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STOPPER 11058 11058-4217 2
COVER,RR DOOR,LWR 14094 14094-0217 2
COVER,RR DOOR,UPP 14094A 14094-0224 2
COVER,RR DOOR,HINGE ARM,LH 14094B 14094-0227 1
COVER,RR DOOR,HINGE ARM,RH 14094C 14094-0228 1
BRACKET-COMP,STOPPER 23062 23062-1554 2
ROD,RR DOOR STOPPER 46102 46102-0692 2
HINGE,RR DOOR,LWR 53009 53009-0328 2
HINGE,RR DOOR,LWR,LH 53009A 53009-0329 1
HINGE,RR DOOR,LWR,RH 53009B 53009-0330 1
HINGE,RR DOOR,UPP 53009C 53009-0332 2
HINGE,RR DOOR,UPP,LH 53009D 53009-0348 1
HINGE,RR DOOR,UPP,RH 53009E 53009-0349 1
WASHER,9X28X2.3 92022 92022-1632 2
RIVET 92039 92039-0068 4
BUSHING 92139 92139-0230 12
BUSHING 92139A 92139-1289 2
COLLAR 92152 92152-2899 4
BOLT,SOCKET,5X12 92154 92154-0917 4
DAMPER 92161 92161-2643 2
BOLT-FLANGED,8X20 130 130BA0820 6
BOLT-FLANGED,8X18 130A 130BB0818 6
BOLT-FLANGED 130B 130BB1018 8
BOLT-FLANGED,6X14 130C 130CA0614 4
NUT-HEX-SMALL,8MM 318 318AA0800 4
WASHER-PLAIN,8MM 411 411AA0800 12
CIRCLIP-TYPE-E,8MM 482 482EB8000 4
