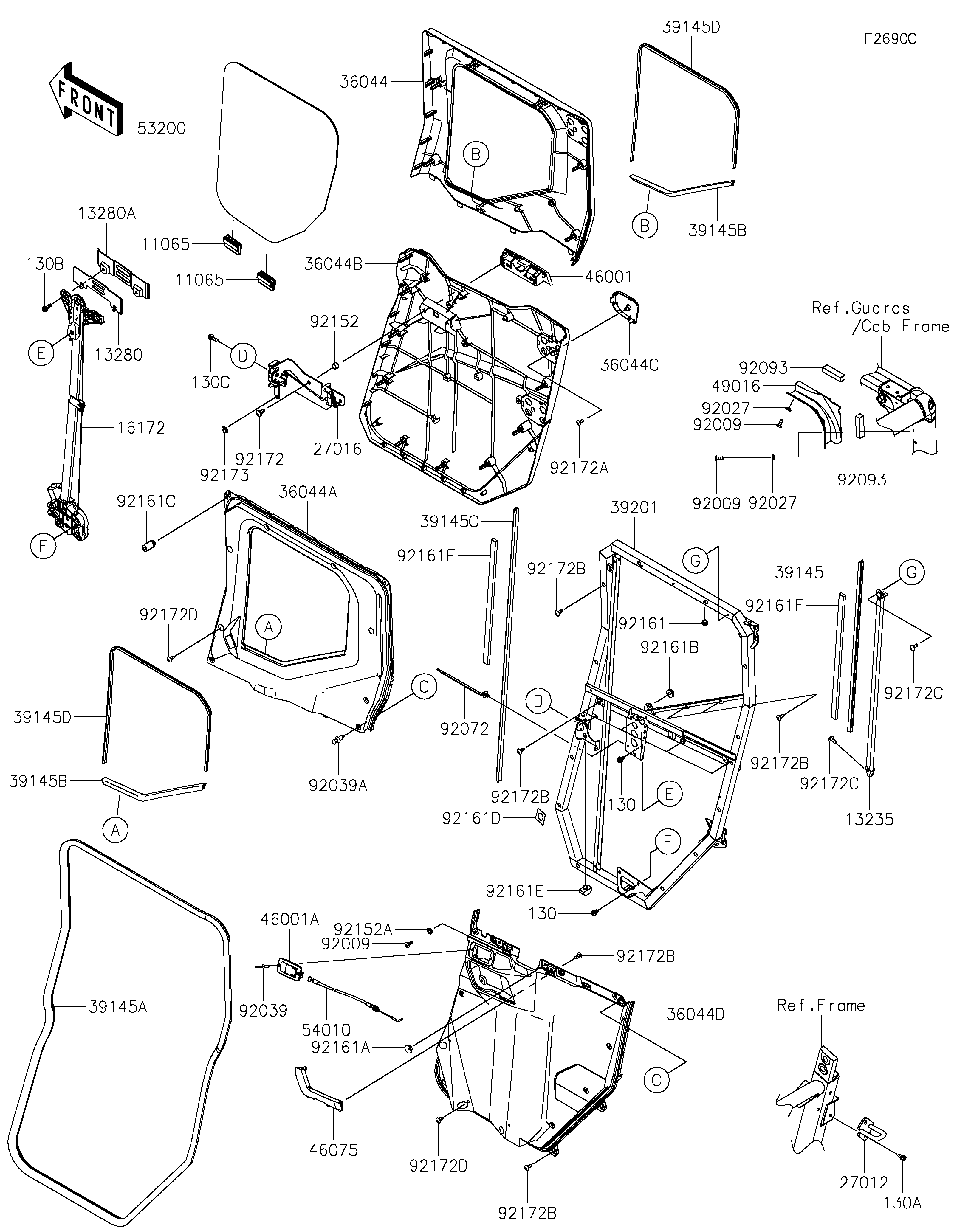

2025 RIDGE XR CREW - Door(RR/RH)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
13235
13235
13280
13280
13280A
13280A
16172
16172
27012
27012
27016
27016
36044
36044
36044A
36044A
36044B
36044B
36044C
36044C
36044D
36044D
39145
39145
39145A
39145A
39145B
39145B
39145B
39145B
39145C
39145C
39145D
39145D
39145D
39145D
39201
39201
46001
46001
46001A
46001A
46075
46075
49016
49016
53200
53200
54010
54010
92009
92009
92009
92009
92009
92009
92027
92027
92027
92027
92039
92039
92039A
92039A
92072
92072
92093
92093
92093
92093
92152
92152
92152A
92152A
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161E
92161E
92161F
92161F
92161F
92161F
92172
92172
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172C
92172C
92172C
92172C
92172D
92172D
92172D
92172D
92173
92173
130
130
130
130
130A
130A
130B
130B
130C
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WINDOW ACTUATOR 11065 11065-1432 2
GUIDE-COMP,WINDOW RAIL,RH 13235 13235-0017 1
HOLDER,WINDOW,INNER 13280 13280-1342 1
HOLDER,WINDOW,OUTER 13280A 13280-1343 1
ACTUATOR,WINDOW,RH 16172 16172-0564 1
HOOK,FULL DOOR 27012 27012-0926 1
LOCK-ASSY,RR DOOR,RH 27016 27016-0112 1
PANEL-DOOR,RR,RH,UPP,OUTER 36044 36044-0018 1
PANEL-DOOR,RR,RH,UPP,INNER 36044A 36044-0024 1
PANEL-DOOR,RR,RH,LWR,OUTER,EBY 36044B 36044-0026-H8 1
PANEL-DOOR,RR,HINGE,RH,EBONY 36044C 36044-0028-H8 1
PANEL-DOOR,RR,RH,LWR,INNER 36044D 36044-0030 1
TRIM-SEAL,FULL DOOR,RAIL,RR 39145 39145-0747 1
TRIM-SEAL,RR FULL DOOR 39145A 39145-0784 1
TRIM-SEAL,RR WINDOW,LWR 39145B 39145-0786 2
TRIM-SEAL,RR FULL DOOR,RAIL,FR 39145C 39145-0787 1
TRIM-SEAL,RR WINDOW,UPP 39145D 39145-0818 2
FRAME-COMP-DOOR,RR,RH 39201 39201-0014 1
HANDLE-ASSY,DOOR,OUTER 46001 46001-0017 1
HANDLE-ASSY,DOOR,INNER 46001A 46001-0026 1
GRIP,RR DOOR,INNNER,RH 46075 46075-0695 1
COVER-SEAL,RR DOOR,RH 49016 49016-0717 1
WINDOW,RR,GLASS 53200 53200-0002 1
CABLE,RR DOOR HANDLE 54010 54010-0675 1
SCREW,TAPPING,6X16 92009 92009-1166 5
COLLAR,L=4.6 92027 92027-1168 2
RIVET,4.0X17.5 92039 92039-0703 2
RIVET 92039A 92039-0776 2
BAND,OS170-FT7(BLACK) 92072 92072-1414 1
SEAL,WINDOW,CORNER 92093 92093-0811 2
COLLAR,6.5X8.5X5.5 92152 92152-0612 2
COLLAR,6.3X9.5X4.1 92152A 92152-1571 3
DAMPER 92161 92161-1084 3
DAMPER 92161A 92161-1531 2
DAMPER,6X19X5.6 92161B 92161-1911 1
DAMPER 92161C 92161-2612 1
DAMPER 92161D 92161-2613 14
DAMPER 92161E 92161-2618 1
DAMPER,20X550X10 92161F 92161-2649 2
SCREW,6X16 92172 92172-0236 2
SCREW,TAPPING,5X14 92172A 92172-0265 1
SCREW,6X16 92172B 92172-0284 9
SCREW,TAPPING,6X16 92172C 92172-0739 2
SCREW,TAPPING,6X16 92172D 92172-1470 19
CLAMP 92173 92173-2863 1
BOLT-FLANGED,6X10 130 130BA0610 3
BOLT-FLANGED,6X14 130A 130BA0614 2
BOLT-FLANGED,6X18 130B 130BA0618 2
BOLT-FLANGED,6X22 130C 130BA0622 2
