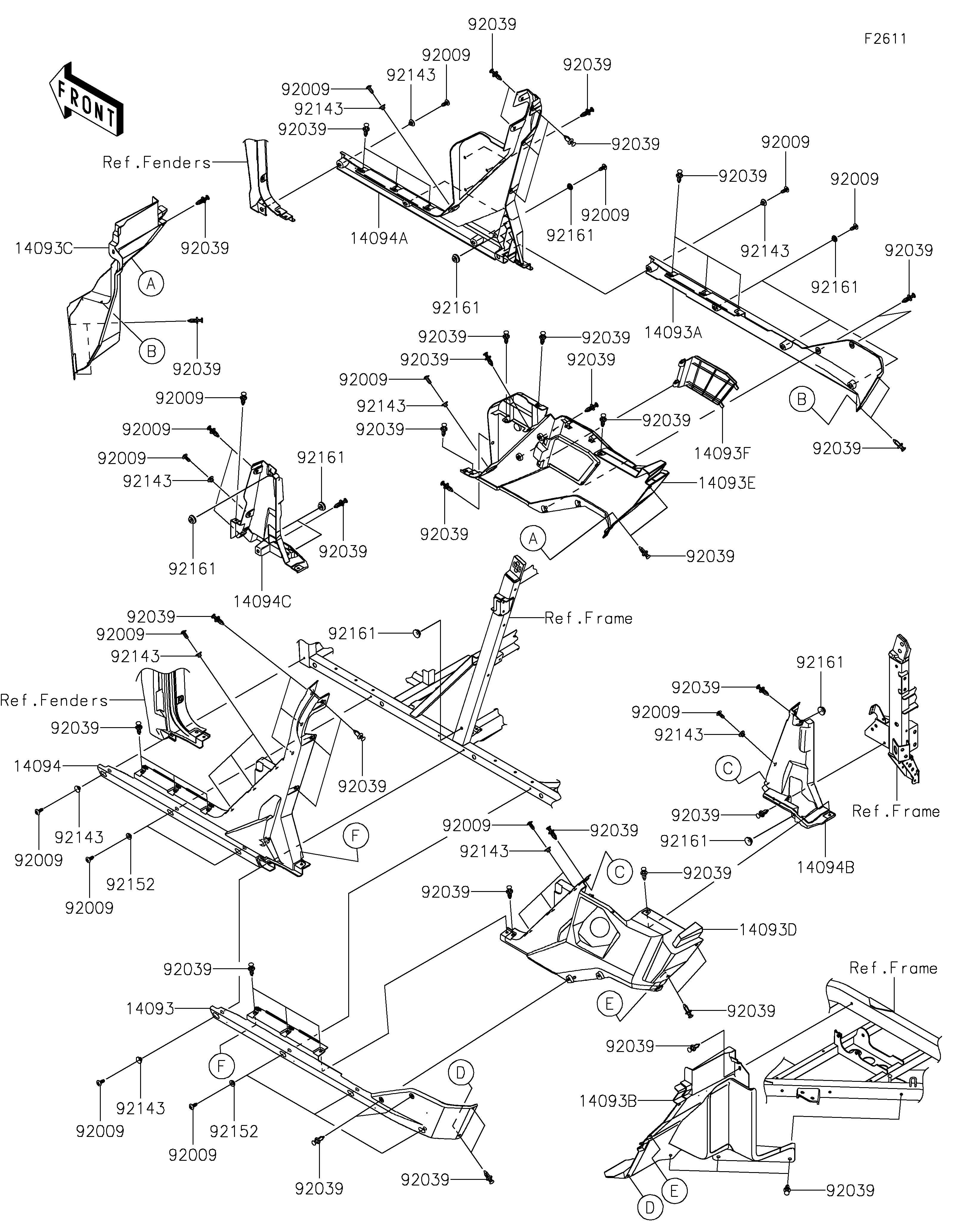

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
14093
14093A
14093B
14093C
14093D
14093E
14093F
14094
14094A
14094B
14094C
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92152
92152
92161
92161
92161
92161
92161
92161
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE GUARD,LH,LWR,BLACK | 14093 | 14093-1331-6Z | 1 | ||
| COVER,SIDE GUARD,RH,LWR,BLACK | 14093A | 14093-1332-6Z | 1 | ||
| COVER,RR MUDGUARD,LH | 14093B | 14093-1335 | 1 | ||
| COVER,RR MUDGUARD,RH | 14093C | 14093-1336 | 1 | ||
| COVER,SIDE,LH,LWR | 14093D | 14093-1343 | 1 | ||
| COVER,SIDE,RH,LWR | 14093E | 14093-1344 | 1 | ||
| COVER,BATTERY | 14093F | 14093-1345 | 1 | ||
| COVER,B-PILLAR,LH | 14094 | 14094-0166 | 1 | ||
| COVER,B-PILLAR,RH | 14094A | 14094-0167 | 1 | ||
| COVER,C-PILLAR,LH | 14094B | 14094-0225 | 1 | ||
| COVER,C-PILLAR,RH | 14094C | 14094-0226 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 24 | ||
| RIVET | 92039 | 92039-0776 | 61 | ||
| COLLAR | 92143 | 92143-1057 | 13 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 11 | ||
| DAMPER | 92161 | 92161-1531 | 8 |
| COVER,SIDE GUARD,LH,LWR,BLACK | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE GUARD,RH,LWR,BLACK | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RR MUDGUARD,LH | |
| REF # | 14093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RR MUDGUARD,RH | |
| REF # | 14093C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,LH,LWR | |
| REF # | 14093D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,RH,LWR | |
| REF # | 14093E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,BATTERY | |
| REF # | 14093F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,B-PILLAR,LH | |
| REF # | 14094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,B-PILLAR,RH | |
| REF # | 14094A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,C-PILLAR,LH | |
| REF # | 14094B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,C-PILLAR,RH | |
| REF # | 14094C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 24 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 61 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
