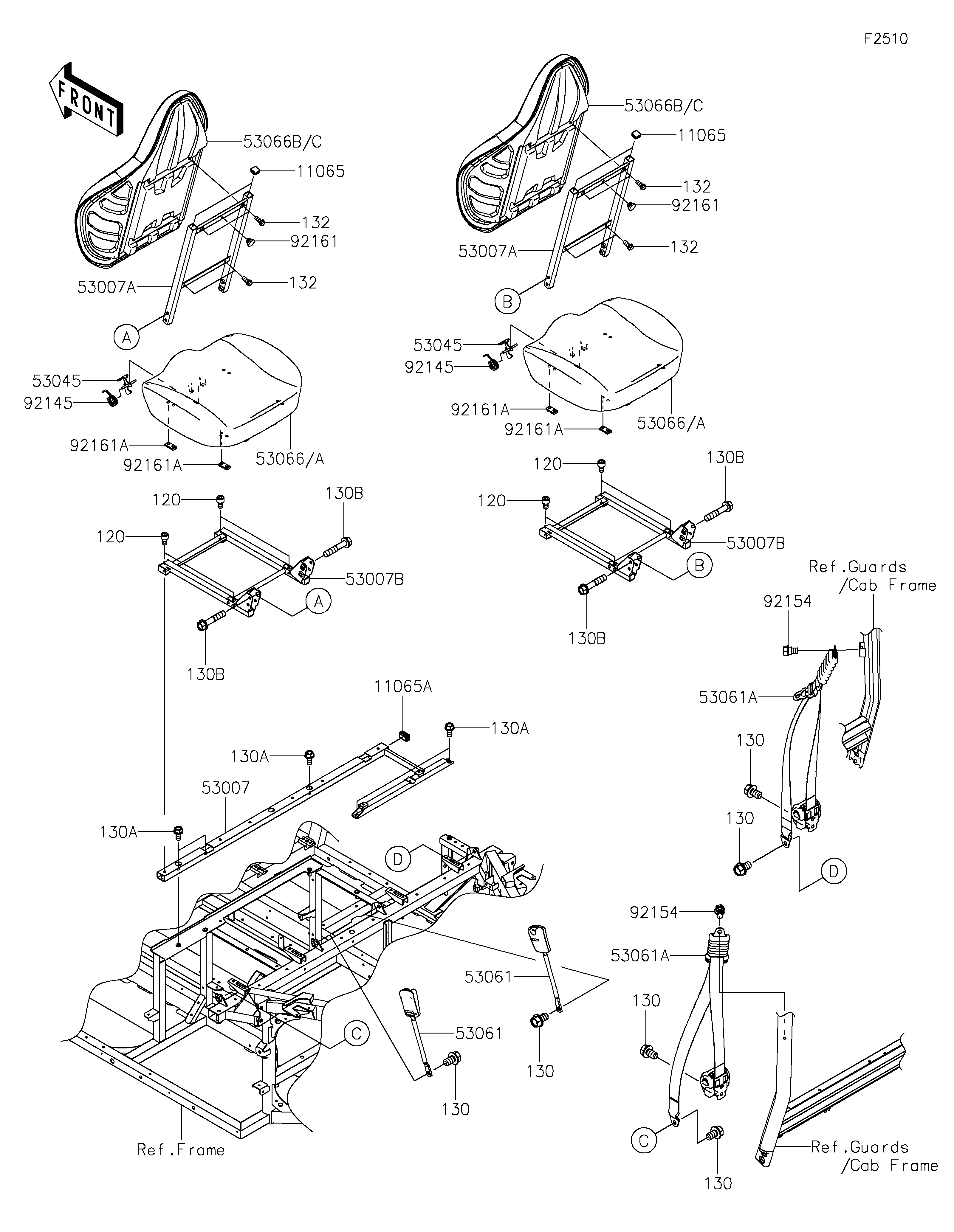

2025 RIDGE XR CREW - Seat(Rear)

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065A
53007
53007A
53007A
53007B
53007B
53045
53045
53061
53061
53061A
53061A
53066
53066
53066A
53066A
53066B
53066B
53066C
53066C
92145
92145
92154
92154
92161
92161
92161A
92161A
92161A
92161A
120
120
120
120
130
130
130
130
130
130
130A
130A
130A
130B
130B
130B
130B
132
132
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0901 4
CAP 11065A 11065-0907 1
FRAME-SEAT 53007 53007-0455 1
FRAME-SEAT,BACK,DRIVER 53007A 53007-0461 2
FRAME-SEAT,RR BOTTOM 53007B 53007-0495 2
HOOK-ASSY 53045 53045-0019 2
BELT-SEAT,BUCKLE,PASSENGER 53061 53061-0358 2
BELT-SEAT,LH/RH 53061A 53061-0378 2
SEAT-ASSY,BOTTOM,BLACK+SIL 53066 53066-0878-55P 2
SEAT-ASSY,BOTTOM,BLACK+GRN+SIL 53066A 53066-0878-71Y 2
SEAT-ASSY,BACK,BLACK+SIL+SIL 53066B 53066-0951-41H 2
SEAT-ASSY,BACK,BLK+GRN+SIL+GRN 53066C 53066-0951-71X 2
SPRING,SEAT LATCH 92145 92145-0022 2
BOLT,FLANGED,10X16 92154 92154-7395 2
DAMPER 92161 92161-1084 2
DAMPER,SEAT 92161A 92161-1489 8
BOLT-SOCKET,8X14 120 120CA0814 8
BOLT-FLANGED,12X20 130 130BA1220 6
BOLT-FLANGED,8X16 130A 130CA0816 5
BOLT-FLANGED,10X50 130B 130CA1050 8
BOLT-FLANGED-SMALL,6X14 132 132BB0614 8
