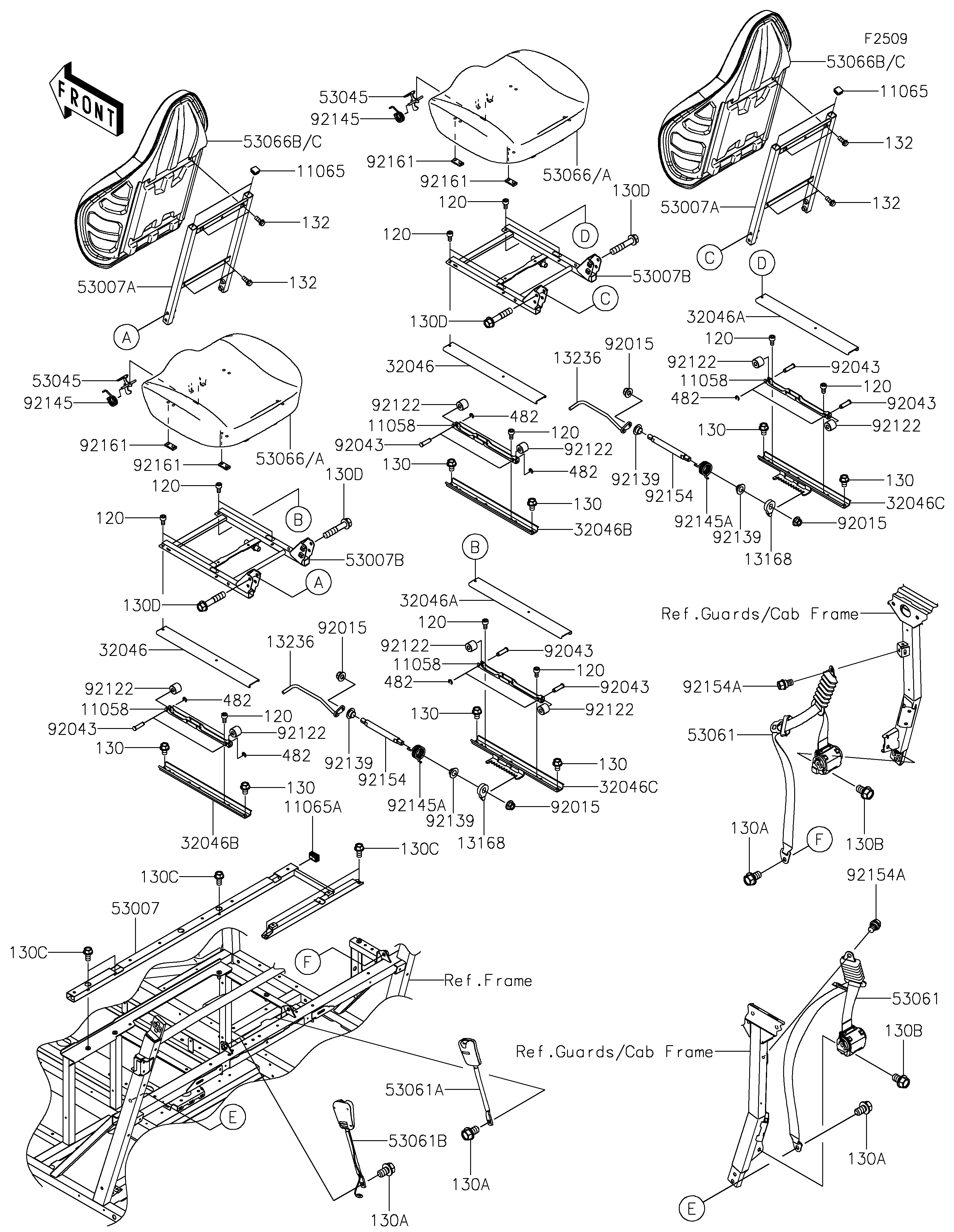

2025 RIDGE XR CREW - Seat(Front)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
11058
11058
11065
11065
11065A
13168
13168
13236
13236
32046
32046
32046A
32046A
32046B
32046B
32046C
32046C
53007
53007A
53007A
53007B
53007B
53045
53045
53061
53061
53061A
53061B
53066
53066
53066A
53066A
53066B
53066B
53066C
53066C
92015
92015
92015
92015
92043
92043
92043
92043
92043
92043
92122
92122
92122
92122
92122
92122
92122
92122
92139
92139
92139
92139
92145
92145
92145A
92145A
92154
92154
92154A
92154A
92161
92161
92161
92161
120
120
120
120
120
120
120
120
120
120
130
130
130
130
130
130
130
130
130A
130A
130A
130A
130B
130B
130C
130C
130C
130D
130D
130D
130D
132
132
132
132
482
482
482
482
482
482
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT RAIL 11058 11058-0250 4
CAP 11065 11065-0901 4
CAP 11065A 11065-0907 1
LEVER,STOP 13168 13168-0883 2
LEVER-COMP,SEAT SLIDE 13236 13236-0851 2
BRACKET-SEAT,UPP RAIL,LH 32046 32046-0481 2
BRACKET-SEAT,UPP RAIL,RH 32046A 32046-0482 2
BRACKET-SEAT,LWR RAIL,LH 32046B 32046-0483 2
BRACKET-SEAT,LWR RAIL,RH 32046C 32046-0484 2
FRAME-SEAT 53007 53007-0455 1
FRAME-SEAT,BACK,DRIVER 53007A 53007-0461 2
FRAME-SEAT,FR BOTTOM 53007B 53007-0504 2
HOOK-ASSY 53045 53045-0019 2
BELT-SEAT,RETRACTOR,L=2650 53061 53061-0346 2
BELT-SEAT,BUCKLE,PASSENGER 53061A 53061-0358 1
BELT-SEAT,BUCKLE,DRIVER 53061B 53061-0365 1
SEAT-ASSY,BOTTOM,BLACK+SIL 53066 53066-0878-55P 2
SEAT-ASSY,BOTTOM,BLACK+GRN+SIL 53066A 53066-0878-71Y 2
SEAT-ASSY,BACK,BLACK+SIL+SIL 53066B 53066-0951-41H 2
SEAT-ASSY,BACK,BLK+GRN+SIL+GRN 53066C 53066-0951-71X 2
NUT,8MM 92015 92015-1432 4
PIN 92043 92043-0991 8
ROLLER 92122 92122-0572 8
BUSHING 92139 92139-0230 4
SPRING,SEAT LATCH 92145 92145-0022 2
SPRING,ADJUST LEVER 92145A 92145-1858 2
BOLT,ADJUST LEVER 92154 92154-3923 2
BOLT,FLANGED,10X16 92154A 92154-7395 2
DAMPER,SEAT 92161 92161-1489 8
BOLT-SOCKET,6X12 120 120CA0612 16
BOLT-FLANGED,8X12 130 130AA0812 8
BOLT-FLANGED,12X20 130A 130BA1220 4
BOLT-FLANGED,12X20 130B 130BB1220 2
BOLT-FLANGED,8X16 130C 130CA0816 5
BOLT-FLANGED,10X50 130D 130CA1050 8
BOLT-FLANGED-SMALL,6X14 132 132BB0614 8
CIRCLIP-TYPE-E,4MM 482 482J4000 8
