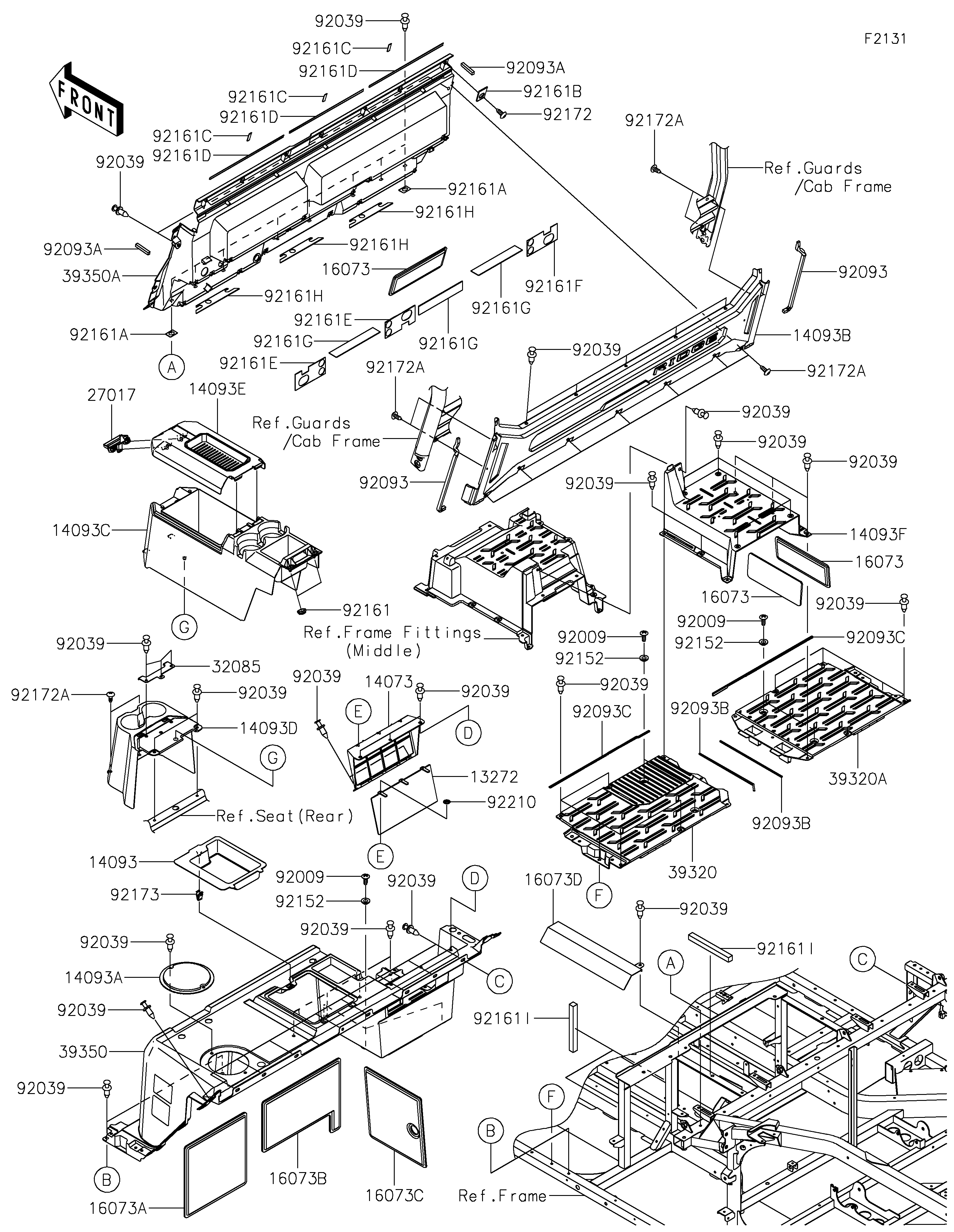

2025 RIDGE XR CREW - Frame Fittings(Rear)
13272
13272
14073
14073
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
14093D
14093D
14093E
14093E
14093F
14093F
16073
16073
16073
16073
16073
16073
16073A
16073A
16073B
16073B
16073C
16073C
16073D
16073D
27017
27017
32085
32085
39320
39320
39320A
39320A
39350
39350
39350A
39350A
92009
92009
92009
92009
92009
92009
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92093
92093
92093
92093
92093A
92093A
92093A
92093A
92093B
92093B
92093B
92093B
92093C
92093C
92093C
92093C
92152
92152
92152
92152
92152
92152
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161C
92161C
92161C
92161C
92161D
92161D
92161D
92161D
92161D
92161D
92161E
92161E
92161E
92161E
92161F
92161F
92161G
92161G
92161G
92161G
92161G
92161G
92161H
92161H
92161H
92161H
92161H
92161H
92161I
92161I
92161I
92161I
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92173
92173
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,VENT FLAP | 13272 | 13272-4095 | 1 | ||
| DUCT,VENT | 14073 | 14073-1921 | 1 | ||
| COVER,TRAY | 14093 | 14093-1333 | 1 | ||
| COVER,HOLE | 14093A | 14093-1334 | 1 | ||
| COVER,RR | 14093B | 14093-1353 | 1 | ||
| COVER,CENTER CONSOLE | 14093C | 14093-1418 | 1 | ||
| COVER,CNT CONSOLE,BOTTOM | 14093D | 14093-1419 | 1 | ||
| COVER,CNT CONSOLE,TOP | 14093E | 14093-1420 | 1 | ||
| COVER,TUNNEL,CNT | 14093F | 14093-1479 | 1 | ||
| INSULATOR,FR TUNNEL&BACK PANEL | 16073 | 16073-0947 | 3 | ||
| INSULATOR,SEAT PANEL,LH | 16073A | 16073-0967 | 1 | ||
| INSULATOR,SEAT PANEL,CNT | 16073B | 16073-0968 | 1 | ||
| INSULATOR,SEAT PANEL,RH | 16073C | 16073-0969 | 1 | ||
| INSULATOR | 16073D | 16073-0984 | 1 | ||
| LOCK,CENTER CONSOLE | 27017 | 27017-0571 | 1 | ||
| STOPPER,CNT CONSOLE | 32085 | 32085-0933 | 1 | ||
| FLOOR,PANEL,LH | 39320 | 39320-0001 | 1 | ||
| FLOOR,PANEL,RH | 39320A | 39320-0002 | 1 | ||
| PANEL,UNDER SEAT | 39350 | 39350-0010 | 1 | ||
| PANEL,BACK | 39350A | 39350-0013 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 7 | ||
| RIVET | 92039 | 92039-0776 | 64 | ||
| SEAL,10X10X395 | 92093 | 92093-0780 | 2 | ||
| SEAL,10X10X60 | 92093A | 92093-0786 | 2 | ||
| SEAL,3X5X310 | 92093B | 92093-0818 | 2 | ||
| SEAL,3X5X500 | 92093C | 92093-0819 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 7 | ||
| DAMPER,7.8X30X11 | 92161 | 92161-1953 | 2 | ||
| DAMPER | 92161A | 92161-2613 | 2 | ||
| DAMPER | 92161B | 92161-2626 | 4 | ||
| DAMPER,12X36X1.5 | 92161C | 92161-2627 | 3 | ||
| DAMPER,10X370X1.5 | 92161D | 92161-2628 | 3 | ||
| DAMPER | 92161E | 92161-2629 | 2 | ||
| DAMPER | 92161F | 92161-2630 | 1 | ||
| DAMPER,38X220X1.5 | 92161G | 92161-2631 | 3 | ||
| DAMPER | 92161H | 92161-2632 | 3 | ||
| DAMPER,20X200X20 | 92161I | 92161-2633 | 3 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 4 | ||
| SCREW,TAPPING,6X16 | 92172A | 92172-1470 | 13 | ||
| CLAMP | 92173 | 92173-1423 | 1 | ||
| NUT | 92210 | 92210-1796 | 3 |
