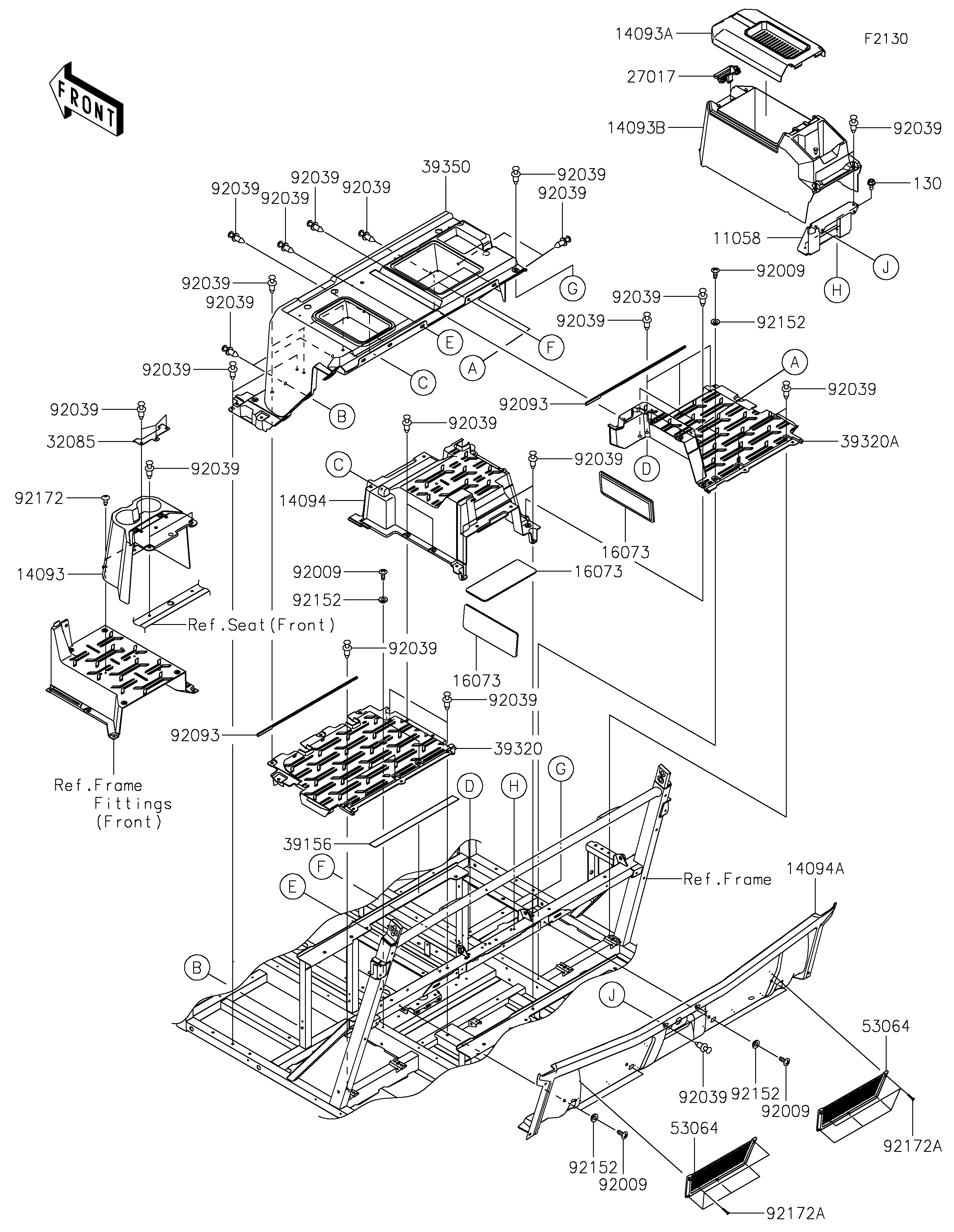

2025 RIDGE XR CREW - Frame Fittings(Middle)

DOWNLOAD PDF
SELECT A NEW PART
11058
14093
14093A
14093B
14094
14094A
16073
16073
16073
27017
32085
39156
39320
39320A
39350
53064
53064
92009
92009
92009
92009
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92093
92093
92152
92152
92152
92152
92172
92172A
92172A
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-1819 1
COVER,CNT CONSOLE,BOTTOM 14093 14093-1419 1
COVER,CNT CONSOLE,TOP 14093A 14093-1420 1
COVER,CENTER CONSOLE,FR 14093B 14093-1534 1
COVER,MID CENTER TUNNEL 14094 14094-0165 1
COVER,FR SEAT BACK 14094A 14094-0169 1
INSULATOR,FR TUNNEL&BACK PANEL 16073 16073-0947 3
LOCK,CENTER CONSOLE 27017 27017-0571 1
STOPPER,CNT CONSOLE 32085 32085-0933 1
PAD,420X30X1 39156 39156-2930 1
FLOOR,MID,LH 39320 39320-0010 1
FLOOR,MID,RH 39320A 39320-0011 1
PANEL,UNDER SEAT 39350 39350-0044 1
NET-CARGO 53064 53064-0022 2
SCREW,TAPPING,6X16 92009 92009-1166 8
RIVET 92039 92039-0776 44
SEAL,3X5X500 92093 92093-0819 2
COLLAR,6.3X9.5X4.1 92152 92152-1571 8
SCREW,6X16 92172 92172-0284 2
SCREW,3X14 92172A 92172-1544 10
BOLT-FLANGED,6X12 130 130BA0612 2
