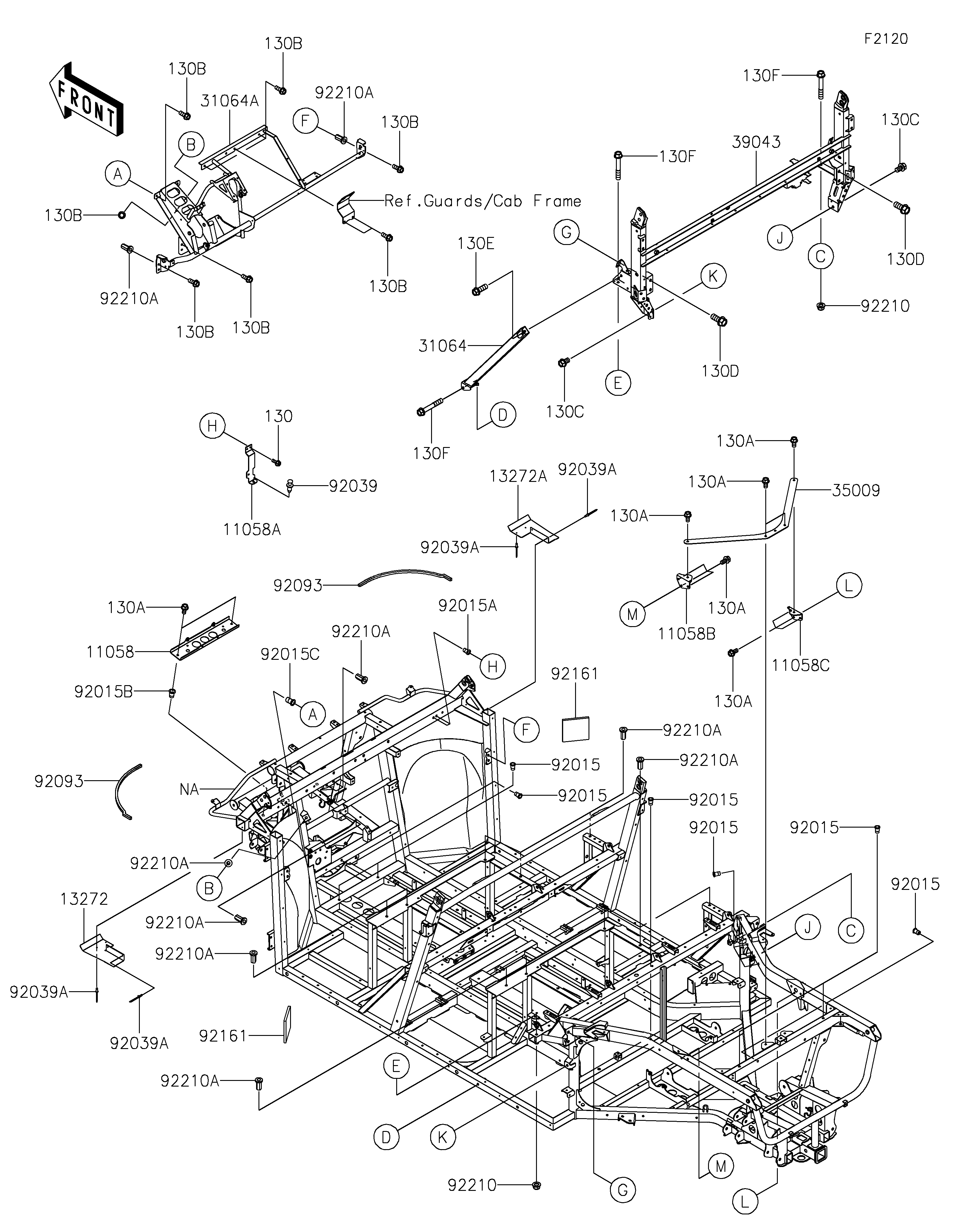

Parts Diagrams |
11058
11058A
11058B
11058C
13272
13272A
31064
31064A
35009
39043
92015
92015
92015
92015
92015
92015
92015A
92015B
92015C
92039
92039A
92039A
92039A
92039A
92093
92093
92161
92161
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
130
130A
130A
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
130B
130C
130C
130D
130D
130E
130F
130F
130F
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RADIATOR | 11058 | 11058-0119 | 1 | ||
| BRACKET,HVAC,RH | 11058A | 11058-0278 | 1 | ||
| BRACKET,FRAME,RR UPPER,LH | 11058B | 11058-1488 | 1 | ||
| BRACKET,FRAME,RR UPPER,RH | 11058C | 11058-1489 | 1 | ||
| PLATE,MUD GUARD,LH | 13272 | 13272-4466 | 1 | ||
| PLATE,MUD GUARD,RH | 13272A | 13272-4467 | 1 | ||
| PIPE-COMP,TANK SIDE | 31064 | 31064-0748 | 1 | ||
| PIPE-COMP,DASHBOARD | 31064A | 31064-0750 | 1 | ||
| BRACE | 35009 | 35009-0050 | 1 | ||
| CROSSMEMBER-COMP,C-PILLAR,LWR | 39043 | 39043-0340 | 1 | ||
| NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 11 | ||
| NUT,POP,6MM,L=16.5 | 92015A | 92015-1792 | 2 | ||
| NUT,POP,8MM,L=16.5 | 92015B | 92015-1793 | 2 | ||
| NUT,POP,8MM,L=18 | 92015C | 92015-1794 | 6 | ||
| RIVET | 92039 | 92039-0776 | 1 | ||
| RIVET,3.2X8 | 92039A | 92039-3763 | 8 | ||
| SEAL,10X10X500 | 92093 | 92093-0784 | 2 | ||
| DAMPER,125X125X10 | 92161 | 92161-2574 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 2 | ||
| NUT,RIVET | 92210A | 92210-2232 | 18 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 2 | ||
| BOLT-FLANGED,8X16 | 130A | 130BA0816 | 12 | ||
| BOLT-FLANGED,8X20 | 130B | 130BA0820 | 13 | ||
| BOLT-FLANGED,10X16 | 130C | 130BA1016 | 2 | ||
| BOLT-FLANGED,12X30 | 130D | 130BA1230 | 4 | ||
| BOLT-FLANGED,10X30 | 130E | 130CA1030 | 2 | ||
| BOLT-FLANGED,10X65 | 130F | 130CA1065 | 3 |
| BRACKET,RADIATOR | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HVAC,RH | |
| REF # | 11058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FRAME,RR UPPER,LH | |
| REF # | 11058B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FRAME,RR UPPER,RH | |
| REF # | 11058C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,MUD GUARD,LH | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,MUD GUARD,RH | |
| REF # | 13272A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,TANK SIDE | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,DASHBOARD | |
| REF # | 31064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACE | |
| REF # | 35009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CROSSMEMBER-COMP,C-PILLAR,LWR | |
| REF # | 39043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=16.5 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,8MM,L=16.5 | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,8MM,L=18 | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET,3.2X8 | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SEAL,10X10X500 | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,125X125X10 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,RIVET | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X20 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X16 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,12X30 | |
| REF # | 130D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X30 | |
| REF # | 130E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X65 | |
| REF # | 130F |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
