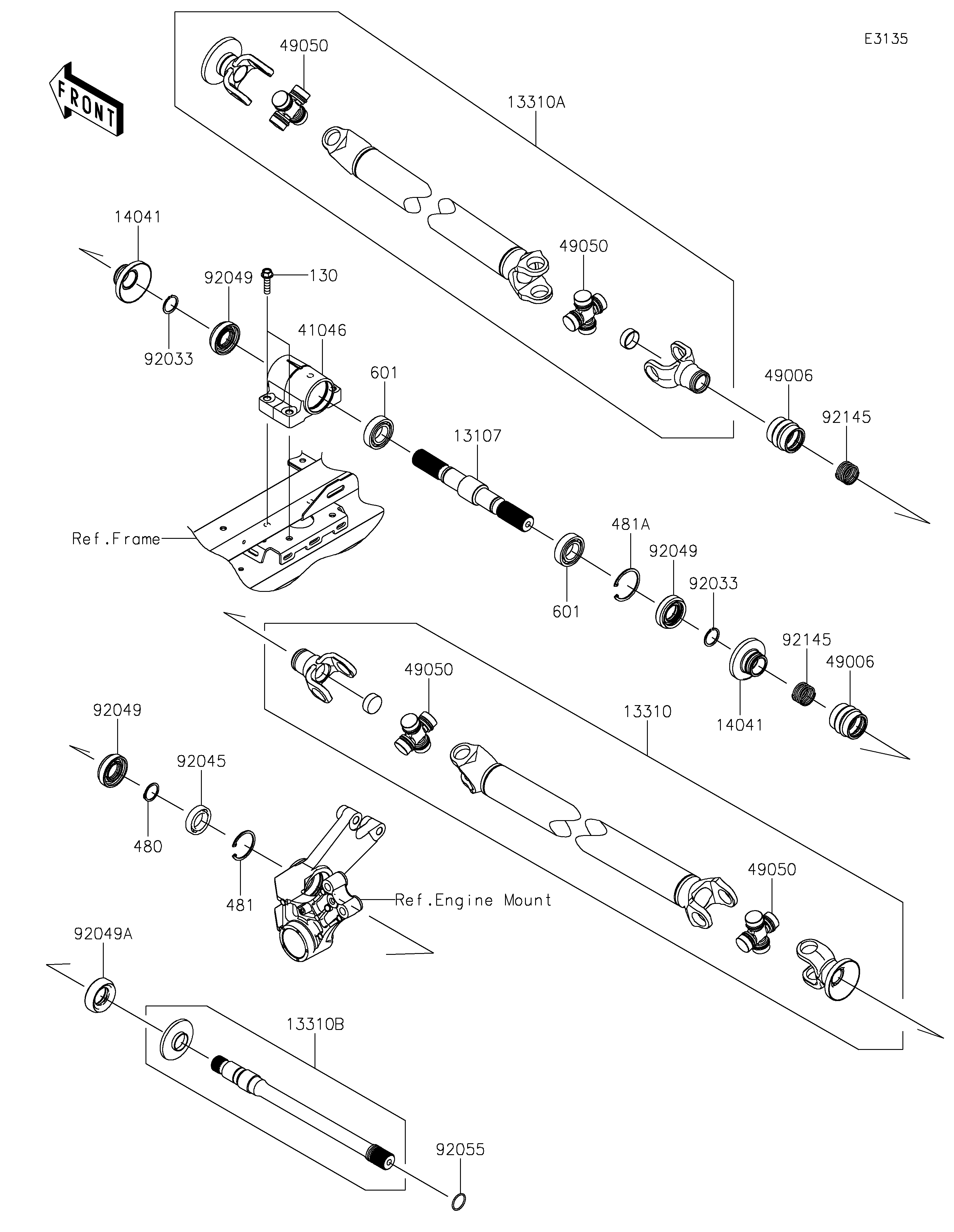

2025 RIDGE XR CREW - Drive Shaft-Propeller

DOWNLOAD PDF
SELECT A NEW PART
13107
13310
13310A
13310B
14041
14041
41046
49006
49006
49050
49050
49050
49050
92033
92033
92045
92049
92049
92049
92049A
92055
92145
92145
130
480
481
481A
601
601
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT 13107 13107-1544 1
SHAFT-ASSY,PROPELLER,RR 13310 13310-0587 1
SHAFT-ASSY,PROPELLER,FR 13310A 13310-0588 1
SHAFT-ASSY 13310B 13310-0589 1
COVER-COMP 14041 14041-0631 2
HOUSING-BEARING 41046 41046-0042 1
BOOT 49006 49006-0646 2
SPIDER 49050 49050-0034 4
RING-SNAP,25MM 92033 92033-1172 2
BEARING-BALL,#6905 92045 92045-036 1
SEAL-OIL,TC9Y 25X48X10X17.2 92049 92049-0817 3
SEAL-OIL,TC9Y 28X50X10X17.2 92049A 92049-0818 1
RING-O,22.1X1.9 92055 92055-1617 1
SPRING 92145 92145-1838 2
BOLT-FLANGED,8X30 130 130BA0830 4
CIRCLIP-TYPE-C,25MM 480 480J2500 1
CIRCLIP-TYPE-C,42MM 481 481J4200 1
CIRCLIP-TYPE-C,47MM 481A 481J4700 1
BEARING-BALL 601 601A6005 2
