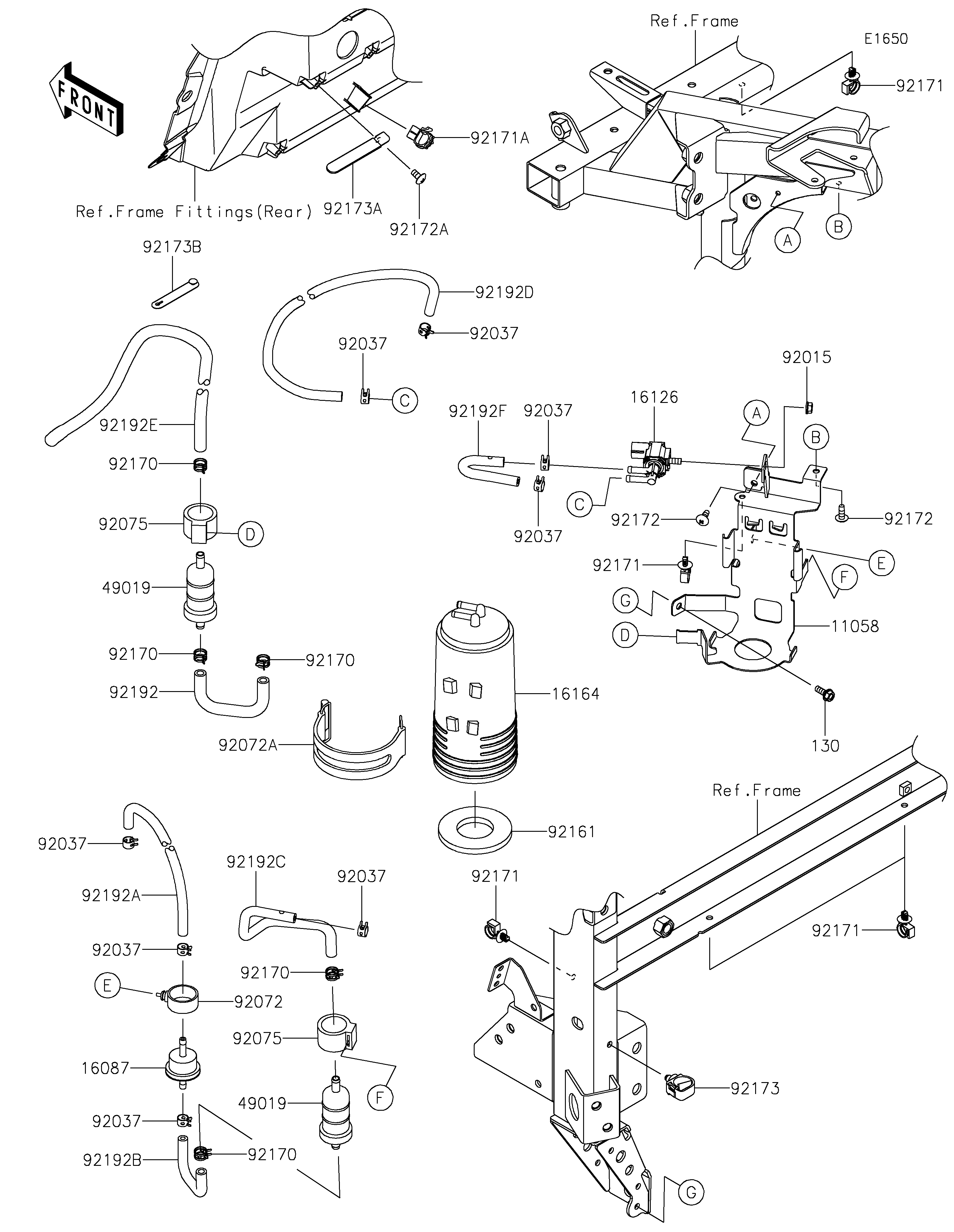

2025 RIDGE XR CREW - Fuel Evaporative System(CA)
11058
11058
16087
16087
16126
16126
16164
16164
49019
49019
49019
49019
92015
92015
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92072
92072
92072A
92072A
92075
92075
92075
92075
92161
92161
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92172
92172
92172
92172
92172A
92172A
92173
92173
92173A
92173A
92173B
92173B
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
92192E
92192E
92192F
92192F
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-2123 | 1 | CA | |
| VALVE-CHECK | 16087 | 16087-0011 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0016 | 1 | CA | |
| FILTER-FUEL | 49019 | 49019-0032 | 2 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP | 92037 | 92037-2113 | 8 | CA | |
| BAND | 92072 | 92072-0852 | 1 | CA | |
| BAND,L=168 | 92072A | 92072-1306 | 1 | CA | |
| DAMPER,FUEL FILTER | 92075 | 92075-1853 | 2 | CA | |
| DAMPER | 92161 | 92161-1843 | 1 | CA | |
| CLAMP | 92170 | 92170-2082 | 5 | CA | |
| CLAMP | 92171 | 92171-0453 | 5 | CA | |
| CLAMP,EDGE CLIP | 92171A | 92171-1722 | 1 | CA | |
| SCREW,TAPPING,6X16 | 92172 | 92172-0739 | 2 | CA | |
| SCREW,6X12 | 92172A | 92172-0884 | 1 | CA | |
| CLAMP | 92173 | 92173-0861 | 1 | CA | |
| CLAMP | 92173A | 92173-1056 | 1 | CA | |
| CLAMP | 92173B | 92173-2199 | 1 | CA | |
| TUBE,FILTER-CANISTER | 92192 | 92192-1665 | 1 | CA | |
| TUBE,TANK-VALVE CHECK | 92192A | 92192-2653 | 1 | CA | |
| TUBE,VALVE CHECK-FILTER AIR | 92192B | 92192-2654 | 1 | CA | |
| TUBE,FILTER AIR-CANISTER | 92192C | 92192-2655 | 1 | CA | |
| TUBE,PURGE VALVE-IN MANIFOLD | 92192D | 92192-2657 | 1 | CA | |
| TUBE,FILTER AIR-OUTSIDE | 92192E | 92192-2658 | 1 | CA | |
| TUBE,CANISTER-PURGE VALVE | 92192F | 92192-2798 | 1 | CA | |
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 1 | CA |
