23007
23008
49016
49016
92015
92015
92015A
92022
92022
92069
92069
92069A
92075
92151
92151A

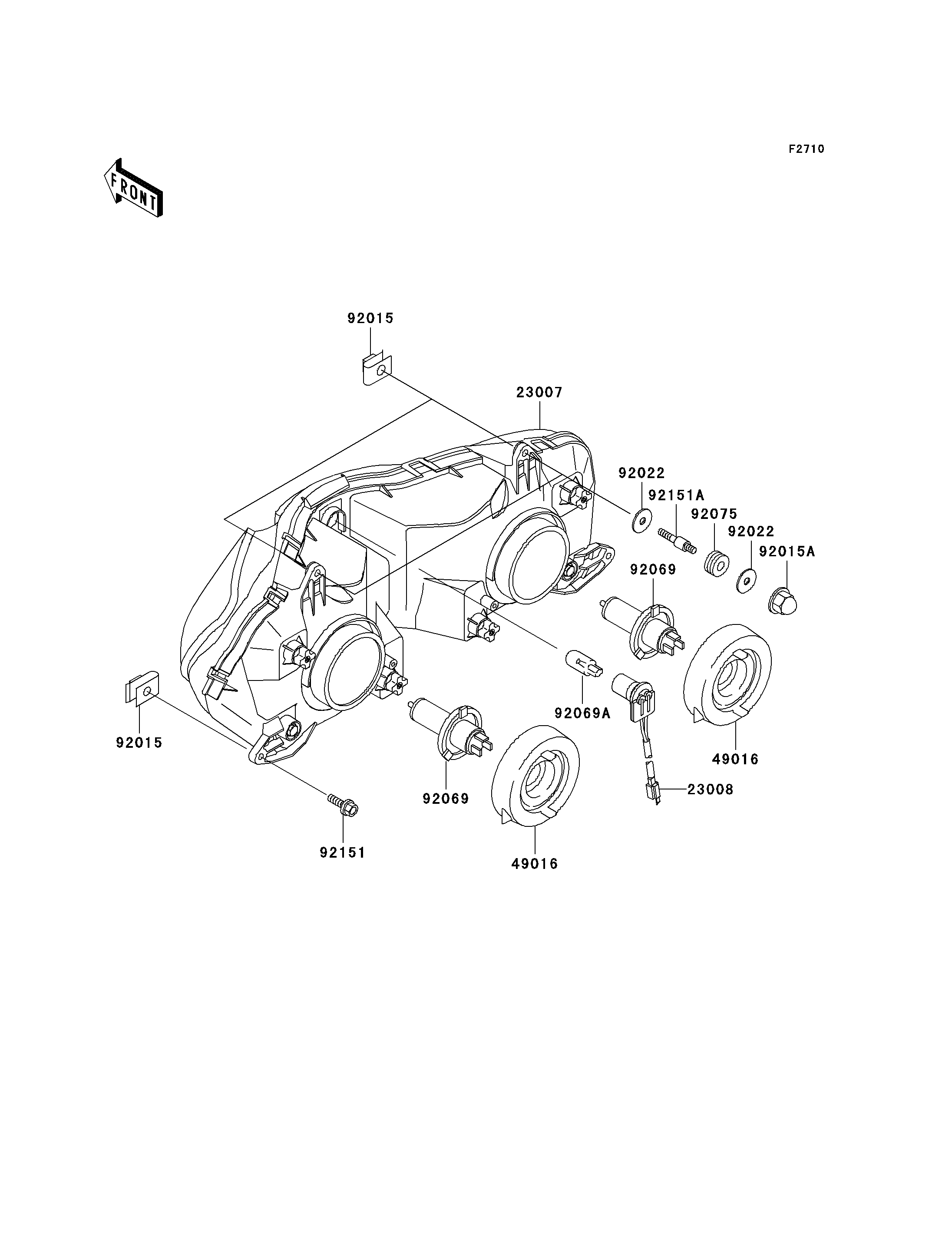

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP,HEAD LAMP 23007 23007-1378 1
SOCKET-ASSY,HEAD LAMP 23008 23008-1619 1
COVER-SEAL,HEAD LAMP 49016 49016-1193 2
NUT,6MM 92015 92015-1094 4
NUT,CAP,6MM,BLACK 92015A 92015-1170 2
WASHER,7X24X1.6 92022 92022-1160 4
BULB,12V 60/55W,H4 92069 92069-1002 2
BULB,12V 5W 92069A 92069-1016 1
DAMPER 92075 92075-1690 2
BOLT,6X25 92151 92151-1241 2
BOLT 92151A 92151-1765 2
