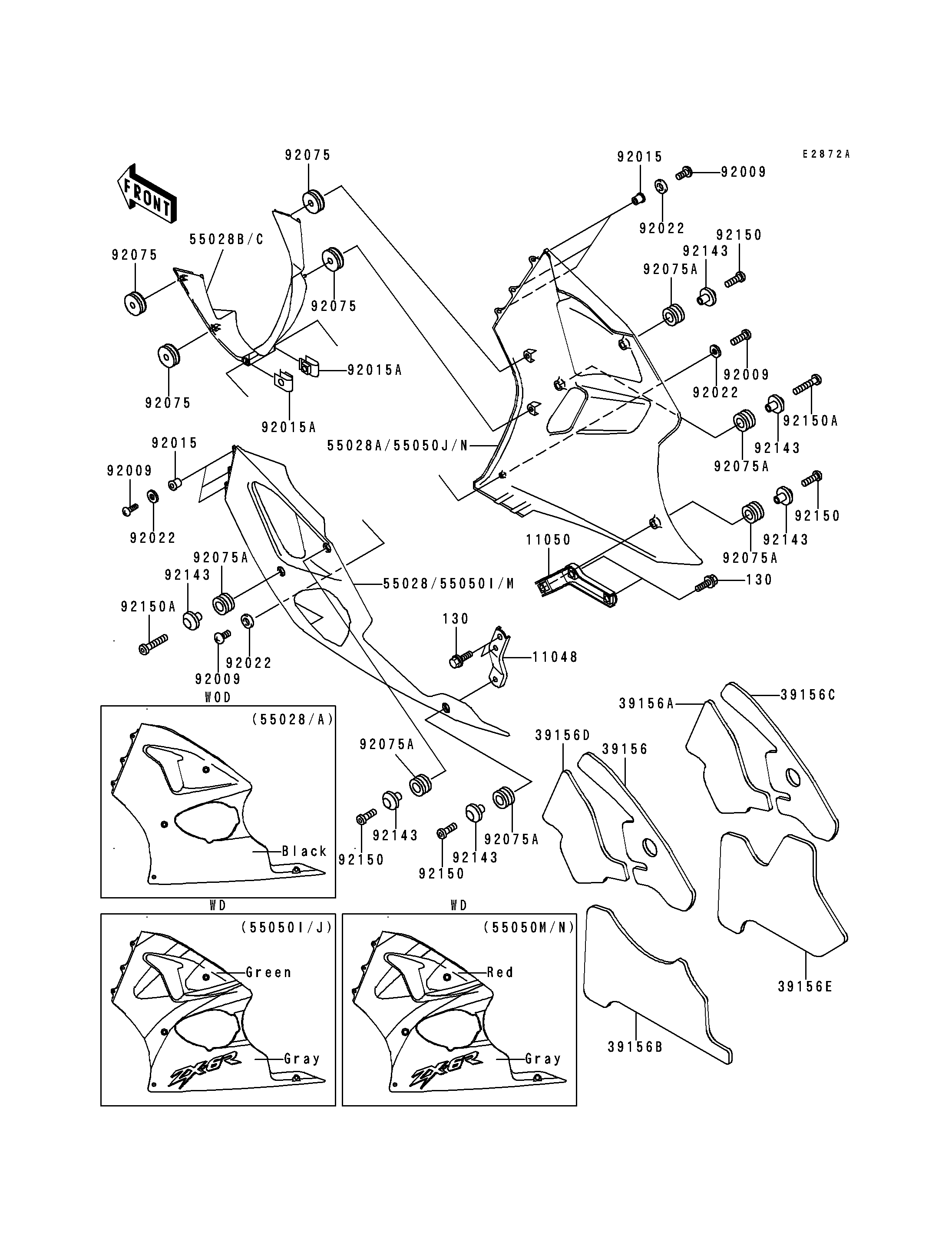

1999 Ninja® ZX™-6R - Cowling Lowers(ZX600-G2)

DOWNLOAD PDF
SELECT A NEW PART
130
130
11048
11050
39156
39156A
39156B
39156C
39156D
39156E
55028
55028A
55028B
55028C
55050I
55050J
92009
92009
92009
92009
92015
92015
92015A
92015A
92022
92022
92022
92022
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150A
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130V0616 4
BRACKET,LWR COWLING,RH,LWR 11048 11048-1870 1
BRACKET,SIDE COWLING,LH,LWR 11050 11050-1867 1
PAD,SIDE COWLING,LH,UPP 39156 39156-1616 1
PAD,SIDE COWLING,RH,CNT 39156A 39156-1617 1
PAD,SIDE COWLING,LH,LWR 39156B 39156-1618 1
PAD,SIDE COWLING,RH,UPP 39156C 39156-1619 1
PAD,SIDE COWLING,LH,CNT 39156D 39156-1620 1
PAD,SIDE COWLING,RH,LWR 39156E 39156-1621 1
COWLING,SIDE,LH,P.P.BLACK MICA 55028 55028-1366-20 1
COWLING,SIDE,RH,P.P.BLACK MICA 55028A 55028-1367-20 1
COWLING,FR,P.C.GRAY 55028B 55028-1368-T2 1
COWLING,FR,P.P.BLCAK MICA 55028C 55028-1368-20 1
COWLING-ASSY.,SIDE,LH,GRN/GRA 55050I 55050-5254-4H 1
COWLING-ASSY.,SIDE,RH,GRN/GRA 55050J 55050-5255-4H 1
SCREW,5X16 92009 92009-1654 8
NUT,WELL,5MM 92015 92015-1757 6
NUT,5MM 92015A 92015-1798 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 8
DAMPER 92075 92075-1067 4
DAMPER 92075A 92075-1634 6
COLLAR,BLACK 92143 92143-1226 6
BOLT,SOCKET,6X18 92150 92150-1553 4
BOLT,SOCKET,6X30 92150A 92150-1554 2
COWLING-ASSY.,SIDE,LH,RED/GRA 55050M 55050-5261-X5 1
COWLING-ASSY.,SIDE,RH,RED/GRA 55050N 55050-5262-X5 1
