Parts Diagrams |
11009
11009
11012
11012
11051
11051
14041
14041
27010
27010
35063
35063
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39192
39192
43078
43078
49016
49016
49054
49054
49085
49085
59502
59502
92005
92005
92005A
92005A
92009
92009
92009
92009
92015
92015
92015
92015
92027
92027
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92055A
92075
92075
92143
92143
92150
92150
92150
92150
92151
92151
92151A
92151A
92151B
92151B
92151C
92151C
92151D
92151D
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170B
92170B
92170B
92170B
92170C
92170C
92170D
92170D
92171
92171
92171A
92171A

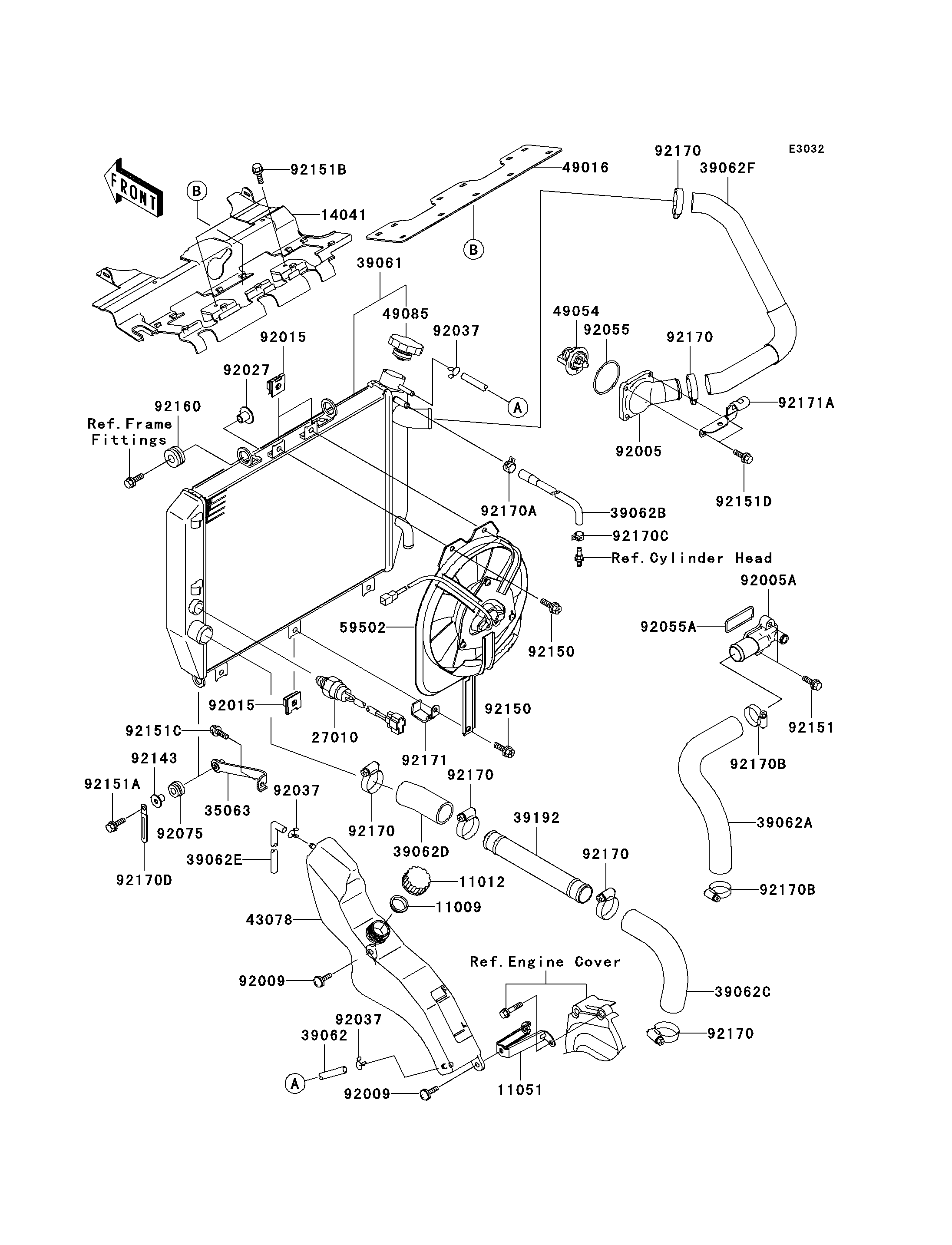

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| BRACKET | 11051 | 11051-1435 | 1 | ||
| COVER-COMP | 14041 | 14041-1144 | 1 | ||
| SWITCH | 27010 | 27010-1418 | 1 | ||
| STAY | 35063 | 35063-1058 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-1273 | 1 | ||
| HOSE-COOLING,RADIATOR-RESERVE | 39062 | 39062-1719 | 1 | ||
| HOSE-COOLING,PUMP-CYLINDER | 39062A | 39062-1792 | 1 | ||
| HOSE-COOLING,RADIATOR | 39062B | 39062-1794 | 1 | ||
| HOSE-COOLING,PIPE-PUMP | 39062C | 39062-1795 | 1 | ||
| HOSE-COOLING,RADIATOR-PIPE | 39062D | 39062-1807 | 1 | ||
| HOSE-COOLING | 39062E | 39062-1862 | 1 | ||
| HOSE-COOLING,HEAD-RADIATOR | 39062F | 39062-1863 | 1 | ||
| PIPE-WATER | 39192 | 39192-1129 | 1 | ||
| RESERVOIR | 43078 | 43078-1166 | 1 | ||
| COVER-SEAL | 49016 | 49016-1205 | 1 | ||
| THERMOSTAT | 49054 | 49054-1067 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1067 | 1 | ||
| FAN-ASSY | 59502 | 59502-1133 | 1 | ||
| FITTING | 92005 | 92005-1362 | 1 | ||
| FITTING | 92005A | 92005-1364 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 2 | ||
| NUT | 92015 | 92015-1487 | 3 | ||
| COLLAR,L=14 | 92027 | 92027-1134 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| RING-O,53.5X2.6 | 92055 | 92055-112 | 1 | ||
| RING-O | 92055A | 92055-1402 | 1 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 1 | ||
| COLLAR | 92143 | 92143-1353 | 1 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| BOLT,6X25 | 92151 | 92151-1130 | 2 | ||
| BOLT,6X25 | 92151A | 92151-1225 | 1 | ||
| BOLT,6X12 | 92151B | 92151-1239 | 2 | ||
| BOLT,6X16 | 92151C | 92151-1774 | 1 | ||
| BOLT | 92151D | 92151-1776 | 4 | ||
| DAMPER | 92160 | 92160-1007 | 2 | ||
| CLAMP | 92170 | 92170-1036 | 6 | ||
| CLAMP | 92170A | 92170-1201 | 1 | ||
| CLAMP,COOLING HOSE | 92170B | 92170-1284 | 2 | ||
| CLAMP | 92170C | 92170-1493 | 1 | ||
| CLAMP | 92170D | 92170-1514 | 1 | ||
| CLAMP | 92171 | 92171-1177 | 1 | ||
| CLAMP | 92171A | 92171-1215 | 1 |
