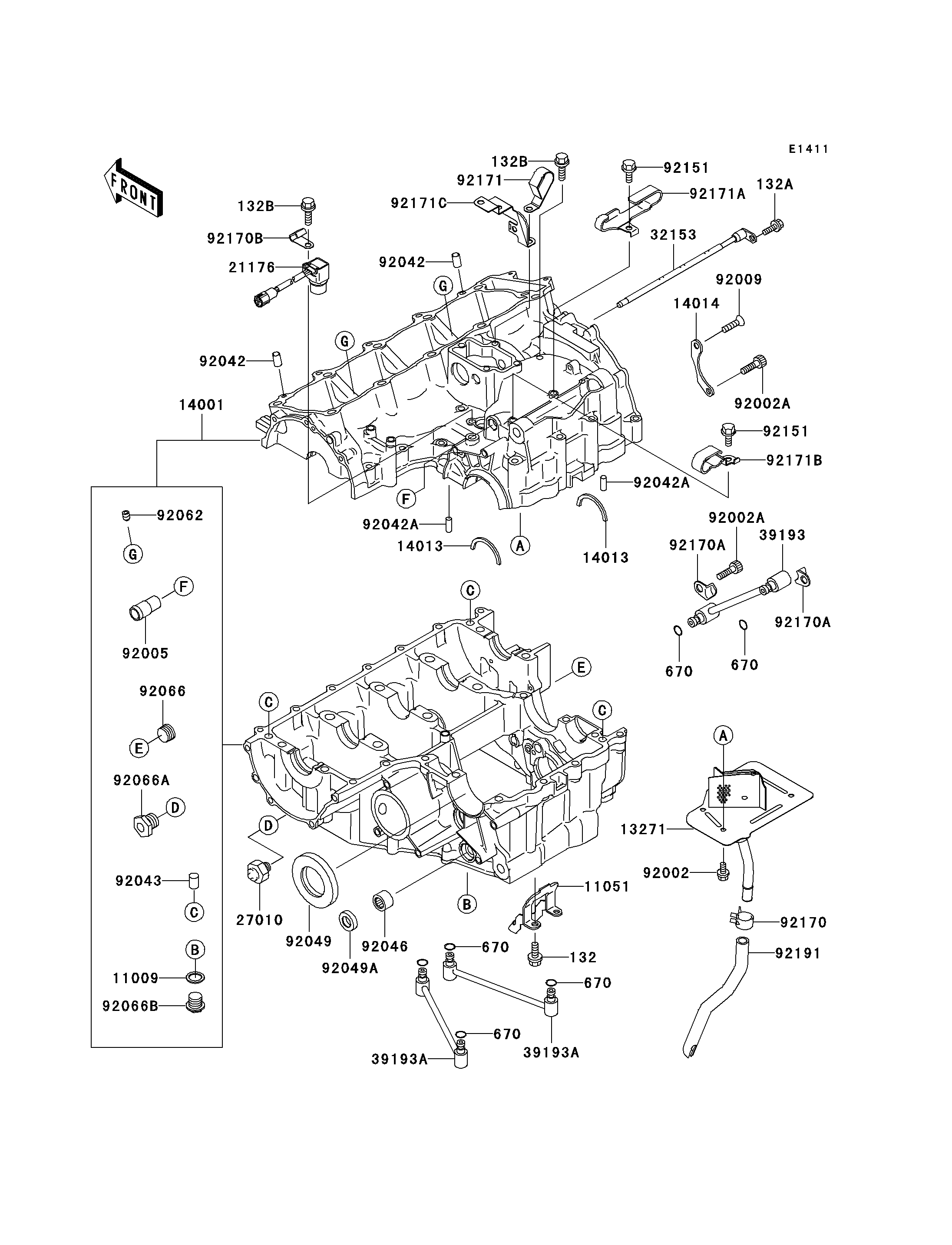

2000 Ninja® ZX™-12R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
132B
670
670
670
670
670
11009
11051
13271
14001
14013
14013
14014
21176
27010
32153
39193
39193A
39193A
92002
92002A
92002A
92005
92009
92042
92042
92042A
92042A
92043
92046
92049
92049A
92062
92066
92066A
92066B
92151
92151
92170
92170A
92170A
92170B
92171
92171A
92171B
92171C
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132H0612 2
BOLT-FLANGED-SMALL 132A 132Y0614 1
BOLT-FLANGED-SMALL 132B 132Y0616 2
O RING 670 670D1505 6
GASKET,14X19.5X1.4 11009 11009-1461 1
BRACKET,TUBE 11051 11051-1334 1
PLATE,BREATHER 13271 13271-1228 1
SET-CRANKCASE 14001 14001-1283 1
RING-POSITION,T=1.98 14013 14013-1004 2
PLATE-POSITION 14014 14014-1140 1
SENSOR,SPEEDOMETER 21176 21176-1106 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,OIL 32153 32153-1139 1
PIPE-OIL 39193 39193-1020 1
PIPE-OIL,OIL PAN 39193A 39193-1047 2
BOLT,6X10 92002 92002-1449 5
BOLT,SOCKET,6X16 92002A 92002-1778 3
FITTING,BREATHER 92005 92005-1238 1
SCREW,6X16 92009 92009-1360 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,DOWEL,6X16 92042A 92042-016 2
PIN 92043 92043-1506 3
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,SD40X62X8 92049 92049-1510 1
SEAL-OIL,TC13225.5 92049A 92049-1519 1
NOZZLE 92062 92062-1086 2
PLUG,PT3/8X12 92066 92066-1252 1
PLUG,PT3/8X3 92066A 92066-1513 1
PLUG,DRAIN 92066B 92066-2196 1
BOLT,6X12 92151 92151-1239 2
CLAMP,BRAKE HOSE 92170 92170-1434 1
CLAMP 92170A 92170-1578 2
CLAMP,HARNESS 92170B 92170-1900 1
CLAMP 92171 92171-1099 1
CLAMP 92171A 92171-1133 1
CLAMP 92171B 92171-1216 1
CLAMP 92171C 92171-1217 1
TUBE,BREATHER 92191 92191-1355 1
