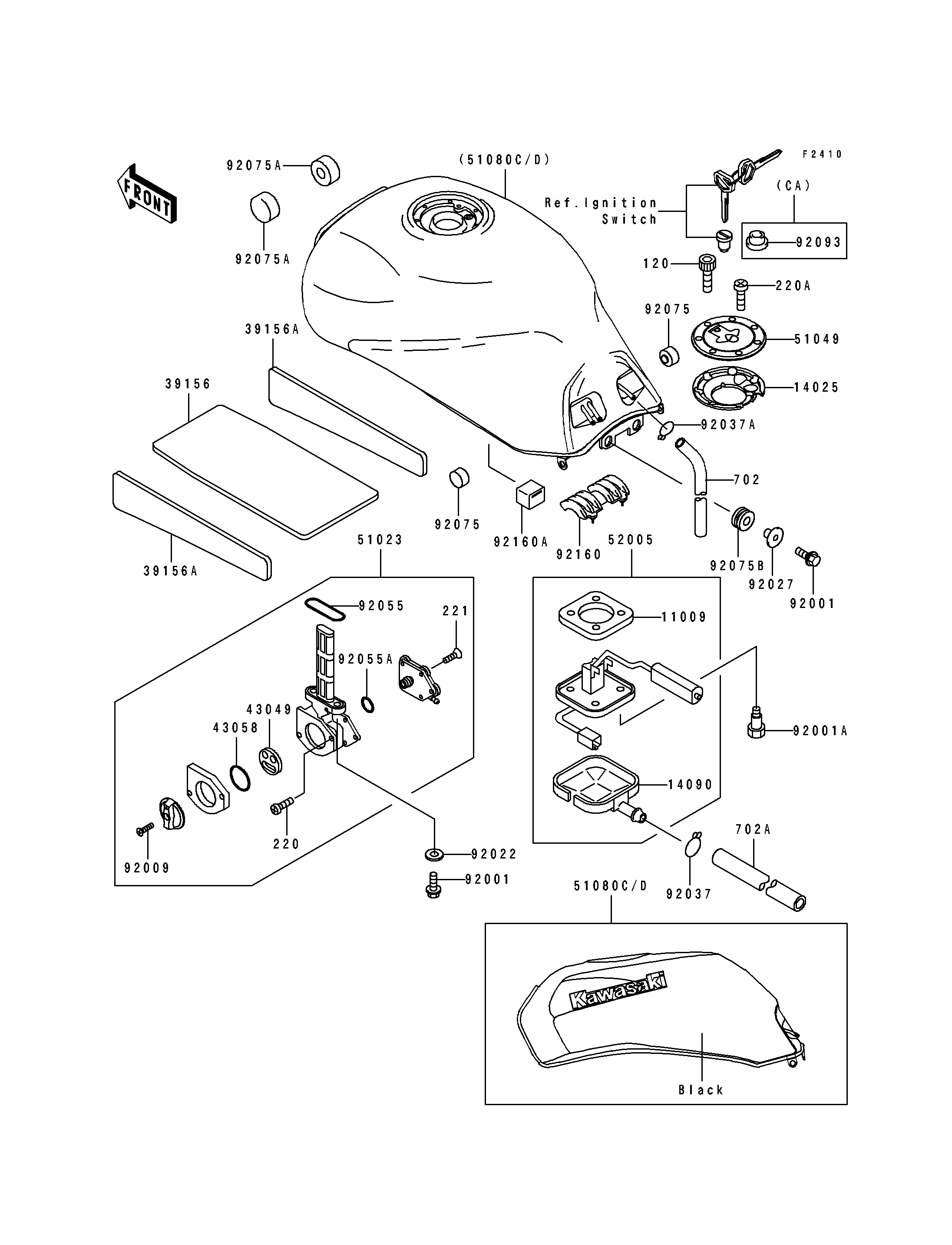

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11009 11009-1656 1
COVER,TANK CAP 14025 14025-1913 1
COVER,FUEL GAUGE 14090 14090-1624 1
PAD,FUEL TANK,CNT 39156 39156-1482 1
PAD,FUEL TANK 39156A 39156-1483 2
PACKING,TAP VALVE 43049 43049-1075 1
RING,TAP LEVER 43058 43058-1083 1
TAP-ASSY,FUEL 51023 51023-1219 1
CAP-TANK,FUEL 51049 51049-1091 1
TANK-COMP-FUEL,P.G.BLACK 51080C 51080-5228-RL 1 US
TANK-COMP-FUEL,P.G.BLACK 51080D 51080-5229-RL 1 CA
GAUGE,FUEL 52005 52005-1111 1
BOLT,6X25 92001 92001-1524 4
BOLT,FUEL GAUGE 92001A 92001-1705 4
SCREW,4X12 92009 92009-1742 1
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-147 1
CLAMP 92037A 92037-1712 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O 92055A 92055-1539 1
DAMPER 92075 92075-021 2
DAMPER,FUEL TANK 92075A 92075-101 2
DAMPER 92075B 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
DAMPER,FUEL TANK,CNT 92160 92160-1577 1
DAMPER 92160A 92160-1626 1
BOLT-SOCKET 120 120S0512 7
SCREW-PAN-CROS 220 220B0308 2
SCREW-PAN-CROS 220A 220C0508 1
SCREW-CSK-CROS,4X14 221 221B0414 5
TUBE-RUBBER,7X10X600 702 702A07600 1
TUBE-RUBBER,7X10X860 702A 702A07860 1
