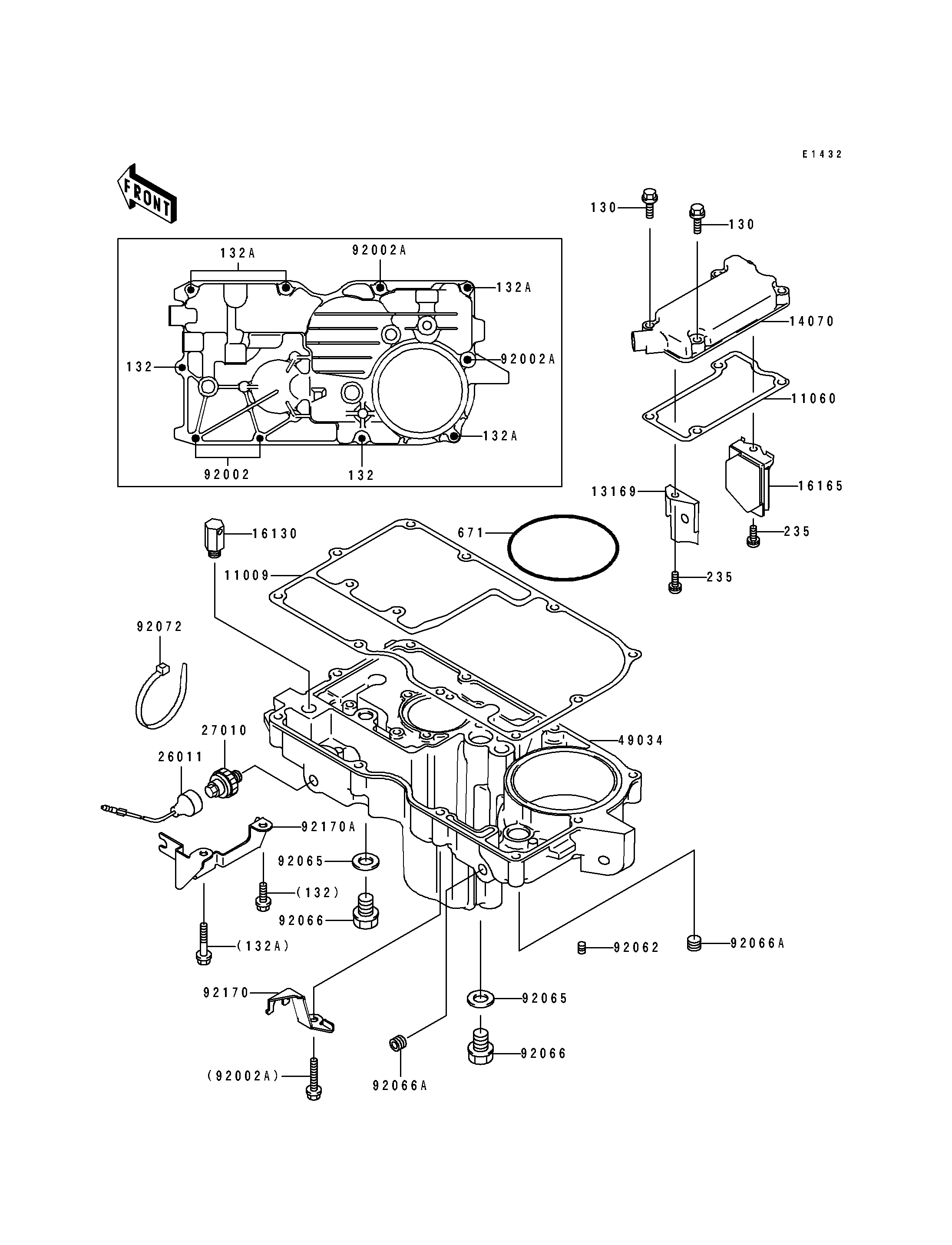

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11009 11009-1981 1
GASKET,BREATHER BODY 11060 11060-1339 1
PLATE,BREATHER 13169 13169-1967 1
BODY-BREATHER 14070 14070-1084 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
SEPARATOR,OIL 16165 16165-1053 1
WIRE-LEAD 26011 26011-1371 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PAN-OIL 49034 49034-1118 1
BOLT,6X25 92002 92002-1344 2
BOLT,6X40 92002A 92002-1345 2
NOZZLE,6X8,BLACK 92062 92062-1079 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 2
PLUG,OIL DRAIN,12X15 92066 92066-1174 2
PLUG,OIL LINE,1/8X7 92066A 92066-1342 2
BAND,L=185 92072 92072-1195 1
CLAMP,OIL TUBE 92170 92170-1188 1
CLAMP,OIL TUBE 92170A 92170-1189 1
BOLT-FLANGED,6X25 130 130P0625 4
BOLT-FLANGED-SMALL 132 132J0625 2
BOLT-FLANGED-SMALL,6X40 132A 132J0640 4
SCREW-PAN-WP-CROS 235 235B0610 2
O RING,90MM 671 671B2590 1
