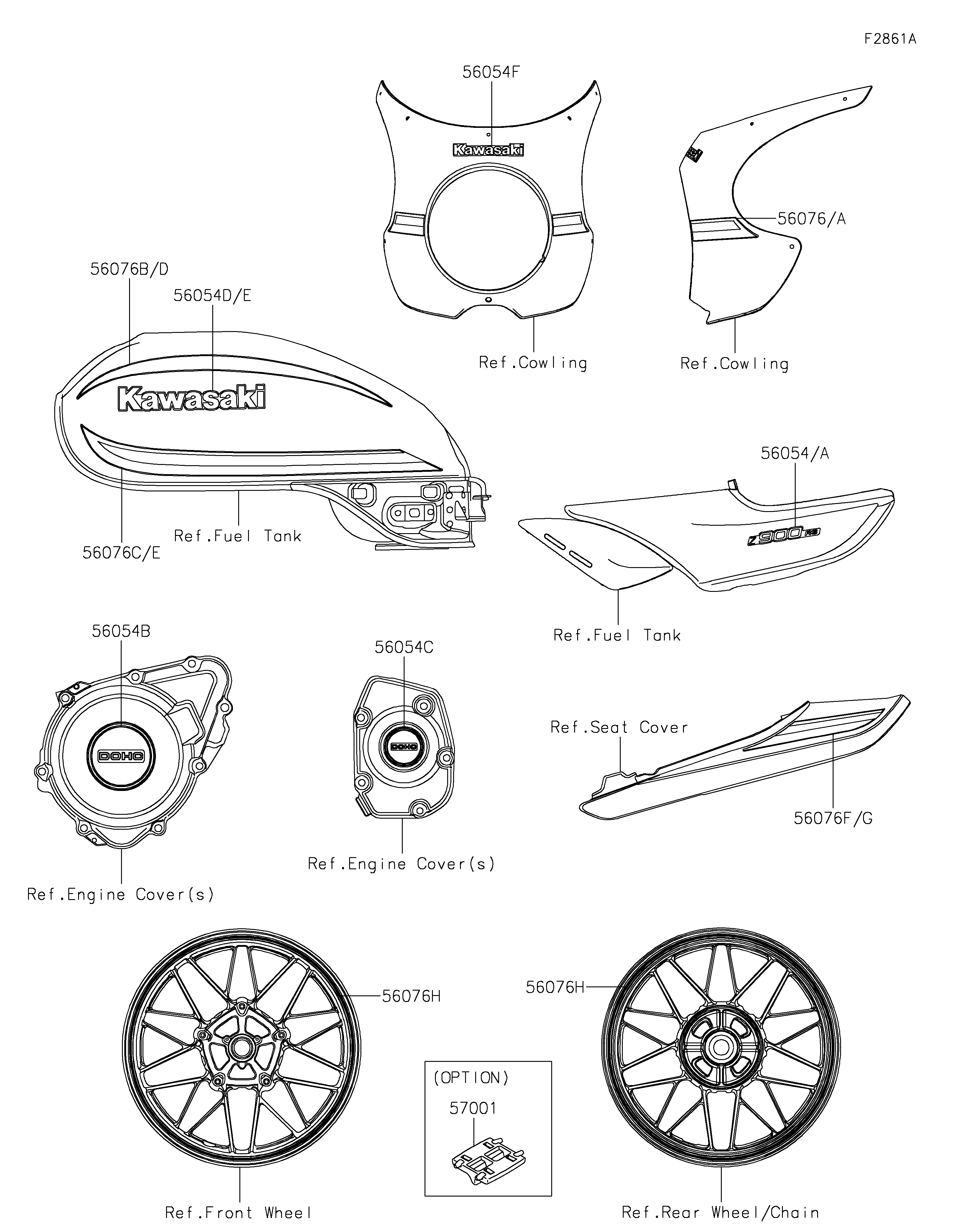

2025 Z900RS CAFE - Decals(EPFAN-ERFAL)
56054
56054A
56054B
56054C
56054D
56054E
56054F
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076H
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SIDE COVER,LH,Z900RS,3D | 56054 | 56054-2284 | 1 | ||
| MARK,SIDE COVER,RH,Z900RS,3D | 56054A | 56054-2285 | 1 | ||
| MARK,DOHC,63MM,3D | 56054B | 56054-2418 | 1 | ||
| MARK,DOHC,39MM,3D | 56054C | 56054-2419 | 1 | ||
| MARK,FUEL TANK,LH,KAWASAKI,3D | 56054D | 56054-2908 | 1 | ||
| MARK,FUEL TANK,RH,KAWASAKI,3D | 56054E | 56054-2909 | 1 | ||
| MARK,UPP COWL.,KAWASAKI | 56054F | 56054-3903 | 1 | ||
| PATTERN,UPP COWL.,LH | 56076 | 56076-7626 | 1 | ||
| PATTERN,UPP COWL.,RH | 56076A | 56076-7627 | 1 | ||
| PATTERN,FUEL TANK,LH,UPP | 56076B | 56076-7628 | 1 | ||
| PATTERN,FUEL TANK,LH | 56076C | 56076-7629 | 1 | ||
| PATTERN,FUEL TANK,RH,UPP | 56076D | 56076-7630 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076E | 56076-7631 | 1 | ||
| PATTERN,TAIL COVER,LH | 56076F | 56076-7632 | 1 | ||
| PATTERN,TAIL COVER,RH | 56076G | 56076-7633 | 1 | ||
| PATTERN,WHEEL,GOLD,6X1400 | 56076H | 56076-7634 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,SIDE COVER,LH,Z900RS,3D | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,RH,Z900RS,3D | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,DOHC,63MM,3D | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,DOHC,39MM,3D | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,LH,KAWASAKI,3D | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH,KAWASAKI,3D | |
| REF # | 56054E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWL.,KAWASAKI | |
| REF # | 56054F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH,UPP | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH,UPP | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GOLD,6X1400 | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
