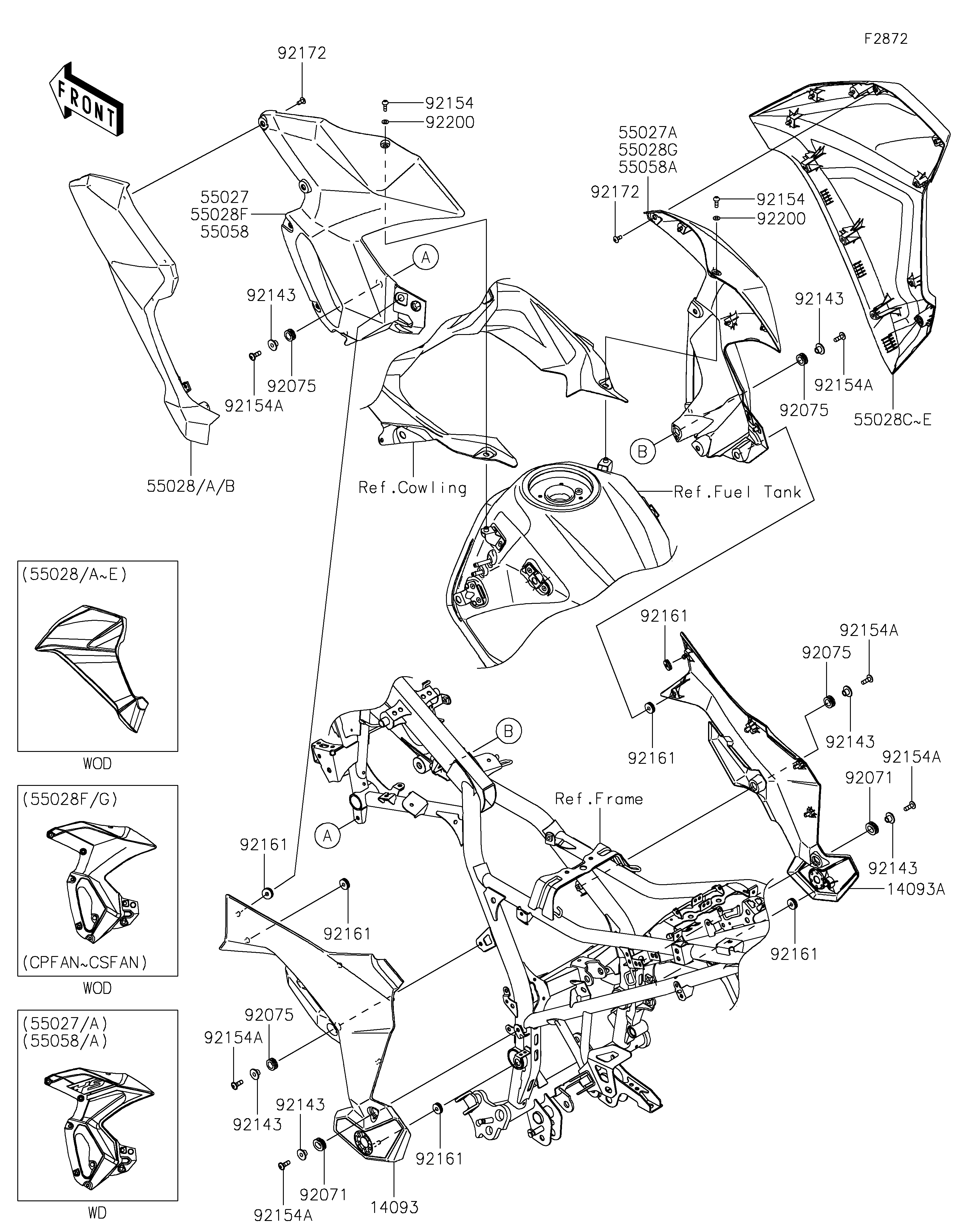

2022 Versys-X 300 ABS - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
55027
55027A
55028
55028C
92071
92071
92075
92075
92075
92075
92143
92143
92143
92143
92143
92143
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92161
92161
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,PIVOT,LH 14093 14093-0558 1
COVER,PIVOT,RH 14093A 14093-0559 1
COWLING,TANK SIDE,LH,P.R.WHITE 55027 55027-5205-68N 1
COWLING,TANK SIDE,RH,P.R.WHITE 55027A 55027-5206-68N 1
COWLING,SIDE,LH,P.R.WHITE 55028 55028-0626-68N 1
COWLING,SIDE,RH,P.R.WHITE 55028C 55028-0627-68N 1
GROMMET,20X24X8 92071 92071-0768 2
DAMPER 92075 92075-1634 4
COLLAR,L=9.6 92143 92143-1016 6
BOLT,SOCKET,5X16 92154 92154-0209 2
BOLT,SOCKET,6X18 92154A 92154-2340 6
DAMPER,6X19X5.6 92161 92161-1911 6
SCREW,5X12 92172 92172-0821 10
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
