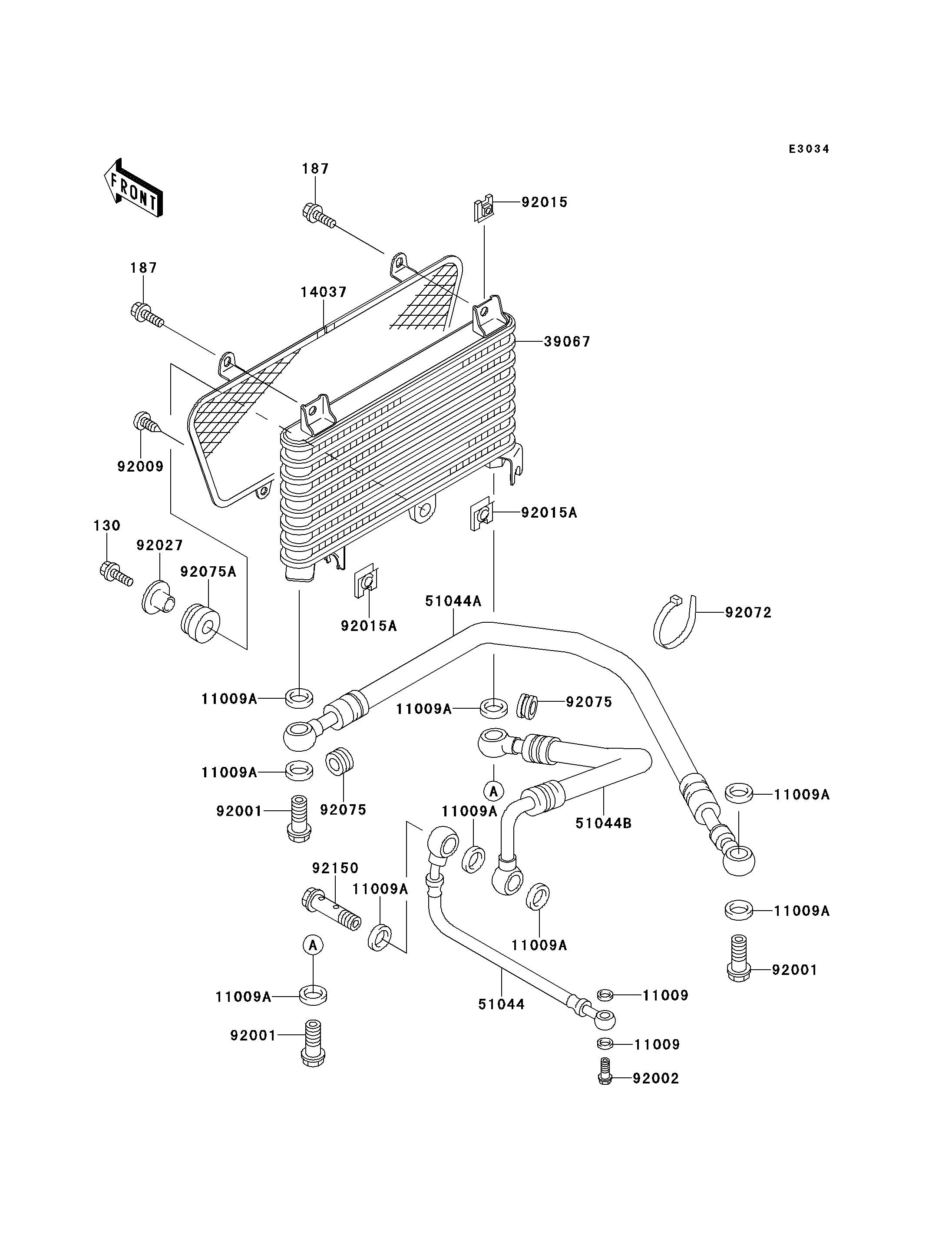

Parts Diagrams |
130
187
187
11009
11009
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
11009A
14037
39067
51044
51044A
51044B
92001
92001
92001
92002
92009
92015
92015A
92015A
92027
92072
92075
92075
92075A
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X25 | 130 | 130J0625 | 1 | ||
BOLT-UPSET-WSP | 187 | 187G0616 | 2 | ||
GASKET,OIL PIPE,8.2X14X1.0 | 11009 | 11009-1344 | 2 | ||
GASKET,14X19.5X1.4 | 11009A | 11009-1461 | 9 | ||
SCREEN,OIL COOLER | 14037 | 14037-1199 | 1 | ||
COOLER-OIL | 39067 | 39067-1063 | 1 | ||
TUBE-ASSY,OIL | 51044 | 51044-1130 | 1 | ||
TUBE-ASSY | 51044A | 51044-1177 | 1 | ||
TUBE-ASSY | 51044B | 51044-1178 | 1 | ||
BOLT,14X28.5 | 92001 | 92001-1930 | 3 | ||
BOLT,BANJO,8X20 | 92002 | 92002-1429 | 1 | ||
SCREW,TAPPING,6MM | 92009 | 92009-1261 | 2 | ||
NUT | 92015 | 92015-1487 | 2 | ||
NUT,6MM | 92015A | 92015-1758 | 2 | ||
COLLAR,FLANGED,L=12.1,BLACK | 92027 | 92027-1651 | 1 | ||
BAND,L=250 | 92072 | 92072-1237 | 1 | ||
DAMPER,OIL COOLER | 92075 | 92075-1942 | 2 | ||
DAMPER | 92075A | 92075-277 | 1 | ||
BOLT,BANJO,14X46 | 92150 | 92150-1324 | 1 |
BOLT-FLANGED,6X25 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WSP | |
REF # | 187 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,OIL PIPE,8.2X14X1.0 | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,14X19.5X1.4 | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
SCREEN,OIL COOLER | |
REF # | 14037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COOLER-OIL | |
REF # | 39067 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-ASSY,OIL | |
REF # | 51044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-ASSY | |
REF # | 51044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-ASSY | |
REF # | 51044B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,14X28.5 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,BANJO,8X20 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,6MM | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,FLANGED,L=12.1,BLACK | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=250 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,OIL COOLER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,BANJO,14X46 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
