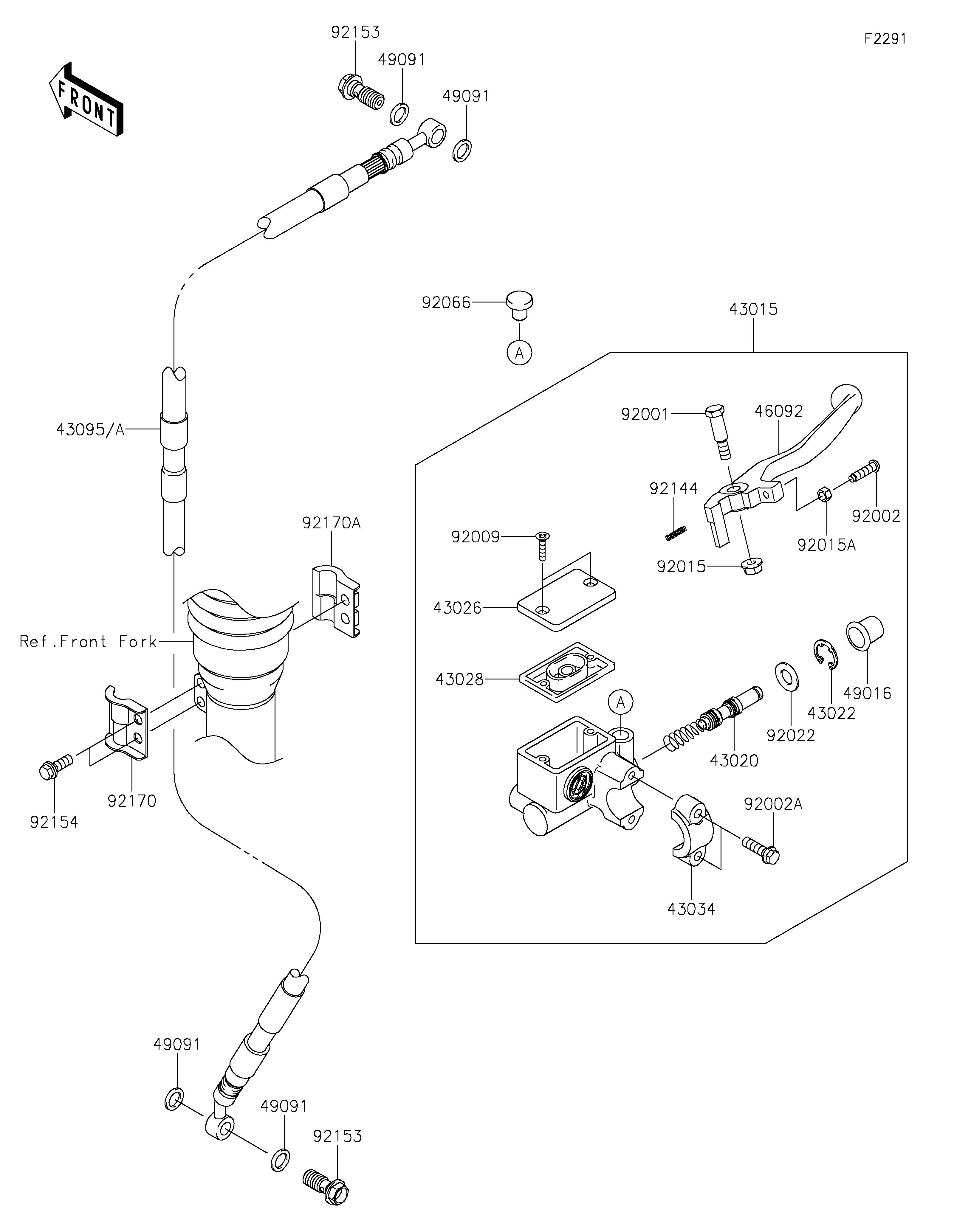

2023 KLX®140R L - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
43015
43020
43022
43026
43028
43034
43095
46092
49016
49091
49091
49091
49091
92001
92002
92002A
92009
92015
92015A
92022
92066
92144
92153
92153
92154
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ASSY-MASTER,FR 43015 43015-0106 1
PISTON-COMP-BRAKE 43020 43020-1065 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR 43095 43095-0335 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1175 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,ADJUST 92002 92002-1893 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
NUT,ADJUST 92015A 92015-1642 1
WASHER 92022 92022-1814 1
PLUG 92066 92066-1348 1
SPRING,RETURN 92144 92144-1103 1
BOLT,OIL,L=23 92153 92153-0029 2
BOLT,FLANGED,6X16 92154 92154-0460 2
CLAMP,BRAKE HOSE,OUTSIDE 92170 92170-1231 1
CLAMP,BRAKE HOSE,INSIDE 92170A 92170-1232 1
