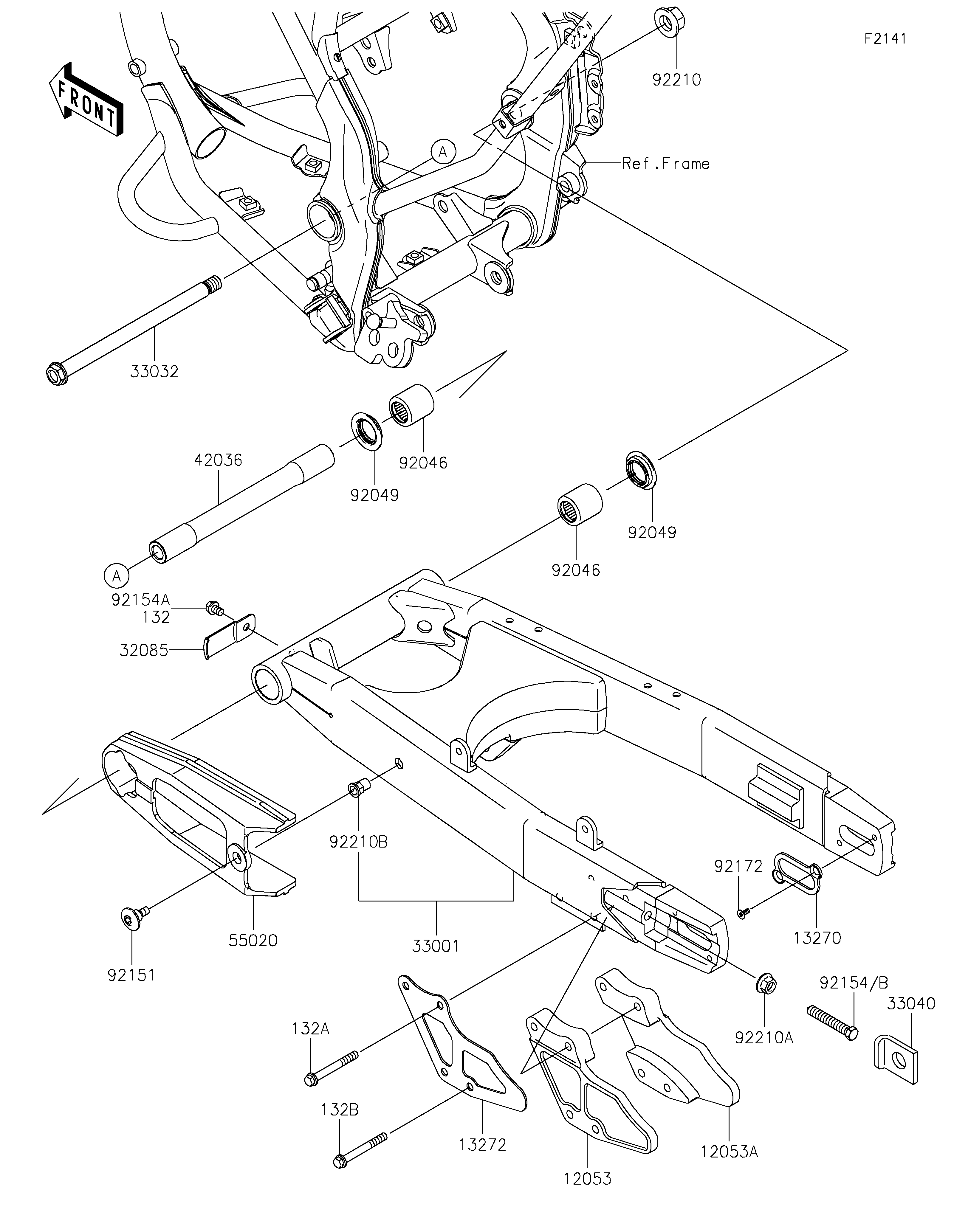

2023 KLX®140R L - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
12053
12053A
13270
13272
32085
33001
33032
33040
42036
55020
92046
92046
92049
92049
92151
92154
92172
92210
92210A
92210B
132
132A
132B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE-CHAIN 12053 12053-0116 1
GUIDE-CHAIN 12053A 12053-0118 1
PLATE 13270 13270-1899 2
PLATE,CHAIN GUIDE 13272 13272-0406 1
STOPPER 32085 32085-0138 1
ARM-COMP-SWING 33001 33001-0123 1
SHAFT-SWING ARM,14X227 33032 33032-0053 1
ADJUSTER-CHAIN 33040 33040-0032 2
SLEEVE,PIVOT,15.1X20X197.8 42036 42036-0070 1
GUARD,CHAIN 55020 55020-0336 1
BEARING-NEEDLE,BM202726 92046 92046-1110 2
SEAL-OIL 92049 92049-0849 2
BOLT,SOCKET,6X18 92151 92151-1149 1
BOLT,8X46 92154 92154-4367 2
SCREW,5X10 92172 92172-1449 4
NUT 92210 92210-0855 1
NUT 92210A 92210-0883 2
NUT,POP,6MM,L=15 92210B 92210-1397 1
BOLT-FLANGED-SMALL,6X8 132 132BA0608 1
BOLT-FLANGED-SMALL,6X45 132A 132BA0645 2
BOLT-FLANGED-SMALL,6X50 132B 132BA0650 2
