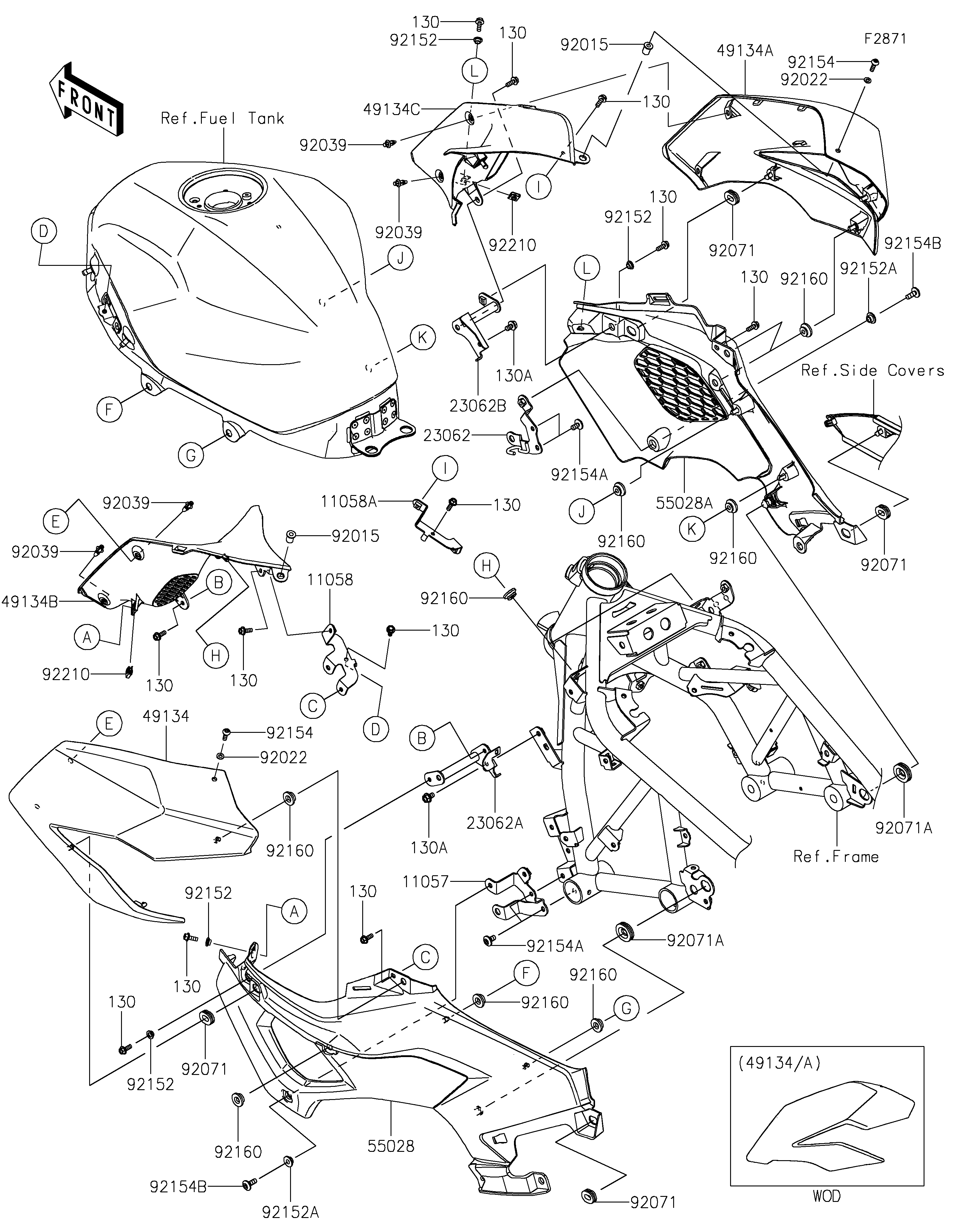

2024 Z7 Hybrid - Cowling(Center)

DOWNLOAD PDF
SELECT A NEW PART
11057
11058
11058A
23062
23062A
23062B
49134
49134A
49134B
49134C
55028
55028A
92015
92015
92022
92022
92039
92039
92039
92039
92071
92071
92071
92071
92071A
92071A
92152
92152
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92154B
92154B
92160
92160
92160
92160
92160
92160
92160
92160
92210
92210
130
130
130
130
130
130
130
130
130
130
130
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SIDE COWL.,LH 11057 11057-7955 1
BRACKET,SIDE COWL.,LH,UPP 11058 11058-1048 1
BRACKET,SIDE COWL.,RH,UPP 11058A 11058-1049 1
BRACKET-COMP,SIDE COWL.,RH,LWR 23062 23062-1469 1
BRACKET-COMP,SIDE COWL.,LH,CNT 23062A 23062-1471 1
BRACKET-COMP,SIDE COWL.,RH,CNT 23062B 23062-1472 1
SHROUD,OUTER,LH,M.B.SILVER 49134 49134-0026-63S 1
SHROUD,OUTER,RH,M.B.SILVER 49134A 49134-0027-63S 1
SHROUD,INNER,LH 49134B 49134-0028 1
SHROUD,INNER,RH 49134C 49134-0029 1
COWLING,SIDE,LH 55028 55028-0870 1
COWLING,SIDE,RH 55028A 55028-0871 1
NUT,WELL,5MM 92015 92015-1757 2
WASHER,5.1X10X1.0 92022 92022-1977 2
RIVET 92039 92039-0709 4
GROMMET,11X23X7 92071 92071-0762 4
GROMMET 92071A 92071-1043 2
COLLAR,6X8X4.5 92152 92152-2395 4
COLLAR,6.5X10X5.9 92152A 92152-2486 2
BOLT,SOCKET,5X16 92154 92154-4294 2
BOLT,SOCKET,6X12 92154A 92154-4310 4
BOLT,SOCKET,6X16 92154B 92154-7026 2
DAMPER 92160 92160-1613 10
NUT 92210 92210-0571 2
BOLT-FLANGED,5X14 130 130BA0514 12
BOLT-FLANGED,6X10 130A 130BA0610 2
