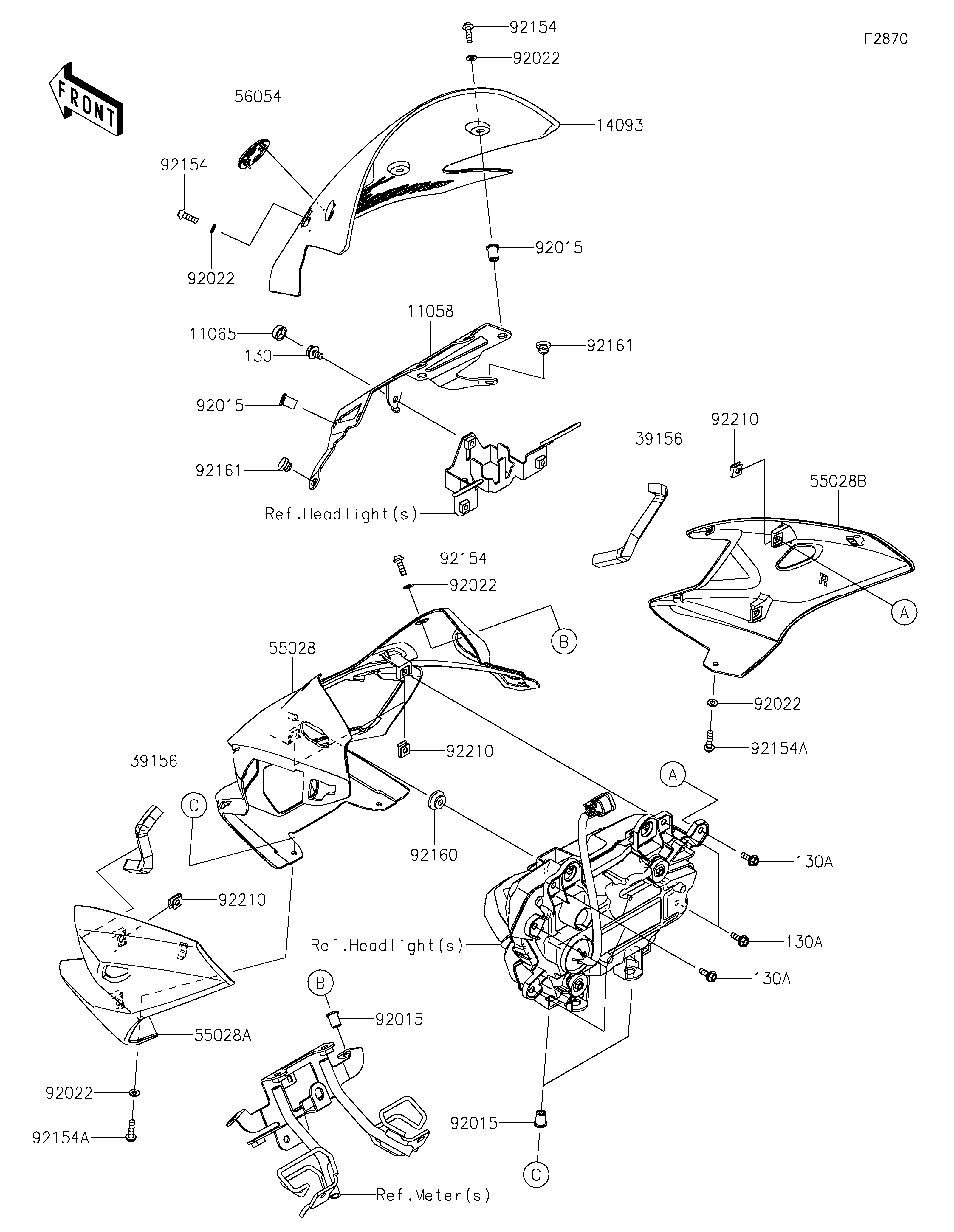

2024 Z7 Hybrid - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
11058
11065
14093
39156
39156
55028
55028A
55028B
56054
92015
92015
92015
92015
92022
92022
92022
92022
92022
92154
92154
92154
92154A
92154A
92160
92161
92161
92210
92210
92210
130
130A
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER COVER 11058 11058-1045 1
CAP,BOLT 11065 11065-0752 1
COVER,METER 14093 14093-1503 1
PAD,10X10X150 39156 39156-2715 2
COWLING,UPP,CNT 55028 55028-0867 1
COWLING,UPP,LH,M.B.SILVER 55028A 55028-0868-63S 1
COWLING,UPP,RH,M.B.SILVER 55028B 55028-0869-63S 1
MARK,UPP COWL.,RIVER 56054 56054-3842 1
NUT,WELL,5MM 92015 92015-1757 8
WASHER,5.1X10X1.0 92022 92022-1977 8
BOLT,SOCKET,5X16 92154 92154-1701 6
BOLT,SOCKET,5X20 92154A 92154-4301 2
DAMPER 92160 92160-1613 1
DAMPER 92161 92161-1971 2
NUT 92210 92210-0571 6
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,5X14 130A 130BB0514 6
