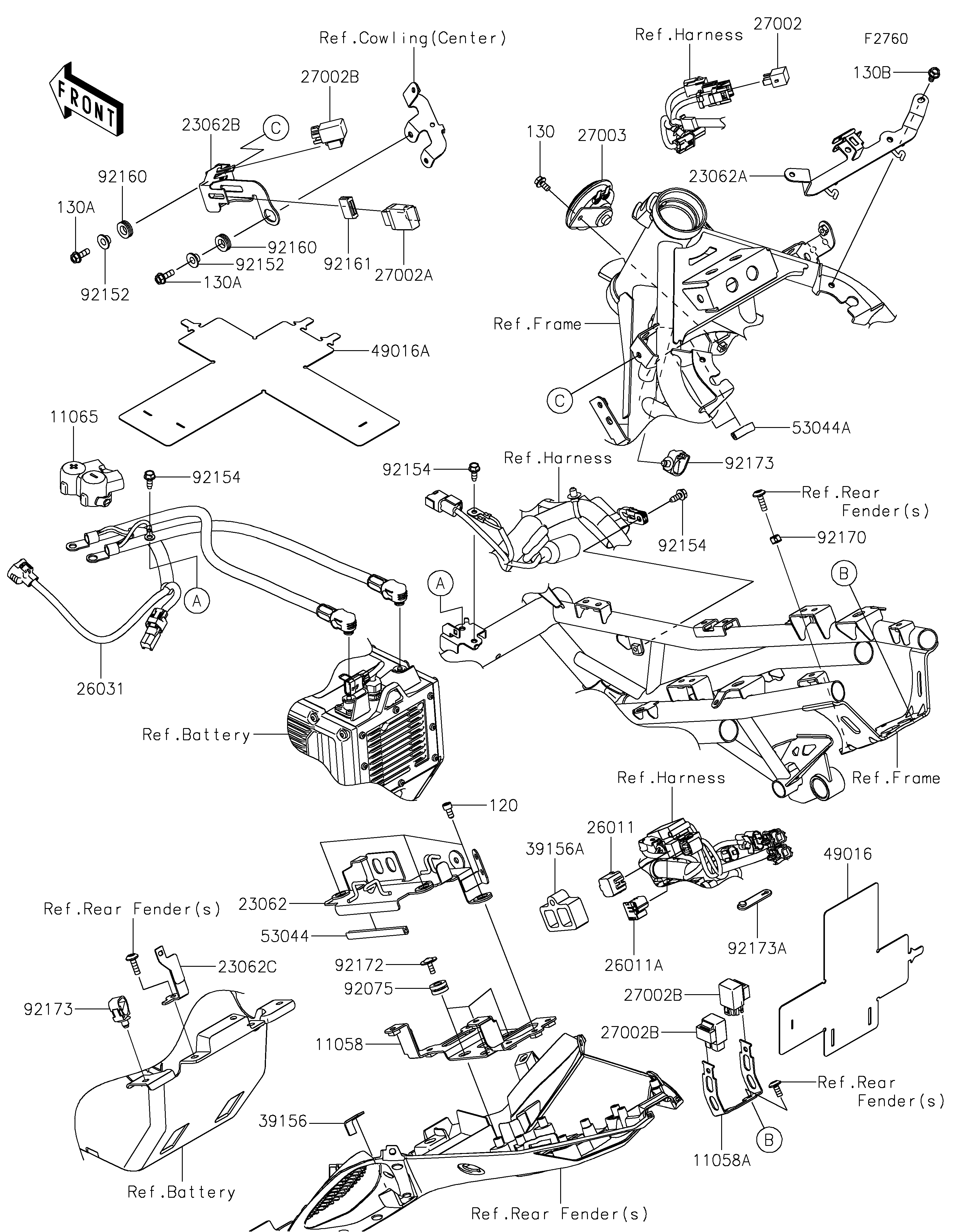

2024 Z7 Hybrid - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11065
23062
23062A
23062B
23062C
26011
26011A
26031
27002
27002A
27002B
27002B
27002B
27003
39156
39156A
49016
49016A
53044
53044A
92075
92152
92152
92154
92154
92154
92160
92160
92161
92170
92172
92173
92173
92173A
120
130
130A
130A
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ECU,LWR 11058 11058-0640 1
BRACKET,RELAY,RR 11058A 11058-0658 1
CAP,MOTOR 11065 11065-1447 1
BRACKET-COMP,ECU,UPP 23062 23062-1376 1
BRACKET-COMP,CONNECTOR 23062A 23062-1377 1
BRACKET-COMP,RELAY 23062B 23062-1483 1
BRACKET-COMP,FUSE BOX 23062C 23062-1504 1
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,DIAG CONNECTOR 26011A 26011-1901 1
HARNESS,48V BATTERY 26031 26031-4285 1
RELAY-ASSY 27002 27002-0033 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-0062 1
RELAY-ASSY 27002B 27002-1062 3
HORN 27003 27003-0124 1
PAD 39156 39156-2170 1
PAD,DIAGNOSTIC CONNECTOR 39156A 39156-2685 1
COVER-SEAL,RR RELAY 49016 49016-0719 1
COVER-SEAL,FR RELAY 49016A 49016-0720 1
TRIM 53044 53044-0564 1
TRIM,9X6.5X30 53044A 53044-0632 2
DAMPER 92075 92075-1880 3
COLLAR 92152 92152-2770 2
BOLT,FLANGED,6X16 92154 92154-0551 3
DAMPER 92160 92160-1278 2
DAMPER,15X25X8.5 92161 92161-1443 1
CLAMP 92170 92170-1514 1
SCREW,5X16 92172 92172-1215 3
CLAMP 92173 92173-0861 2
CLAMP 92173A 92173-2198 1
BOLT-SOCKET,6X12 120 120CA0612 3
BOLT-FLANGED,6X12 130 130BA0612 1
BOLT-FLANGED,6X18 130A 130BA0618 2
BOLT-FLANGED,6X12 130B 130CA0612 2
