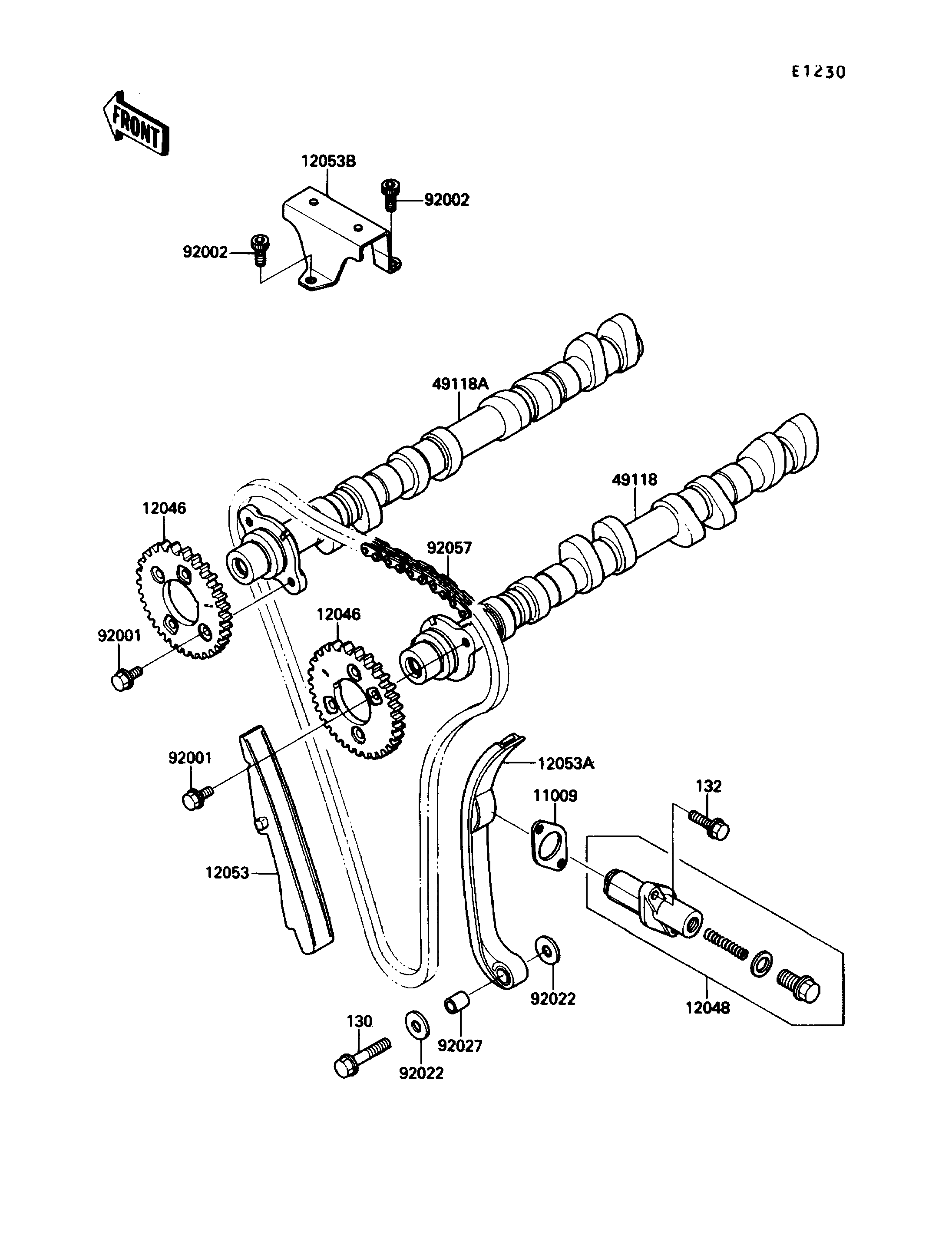

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TENSIONER 11009 11009-1675 1
SPROCKET,CAMSHAFT,34T 12046 12046-1112 2
TENSIONER-ASSY 12048 12048-1089 1
GUIDE-CHAIN,FR 12053 12053-1241 1
GUIDE-CHAIN,RR 12053A 12053-1242 1
GUIDE-CHAIN,UPP 12053B 12053-1243 1
CAMSHAFT-COMP,INTAKE 49118 49118-1057 1
CAMSHAFT-COMP,EXHAUST 49118A 49118-1063 1
BOLT,FLANGED,6X11 92001 92003-208 4
BOLT,SOCKET,6X12 92002 92002-1796 3
WASHER,8.2X19X2 92022 92022-1533 2
COLLAR,8.2X10.5X15.6 92027 92027-1763 1
CHAIN,CAMSHAFT 92057 92057-1255 1
BOLT-FLANGED,8X35 130 130G0835 1
BOLT-FLANGED-SMALL 132 132J0625 2
