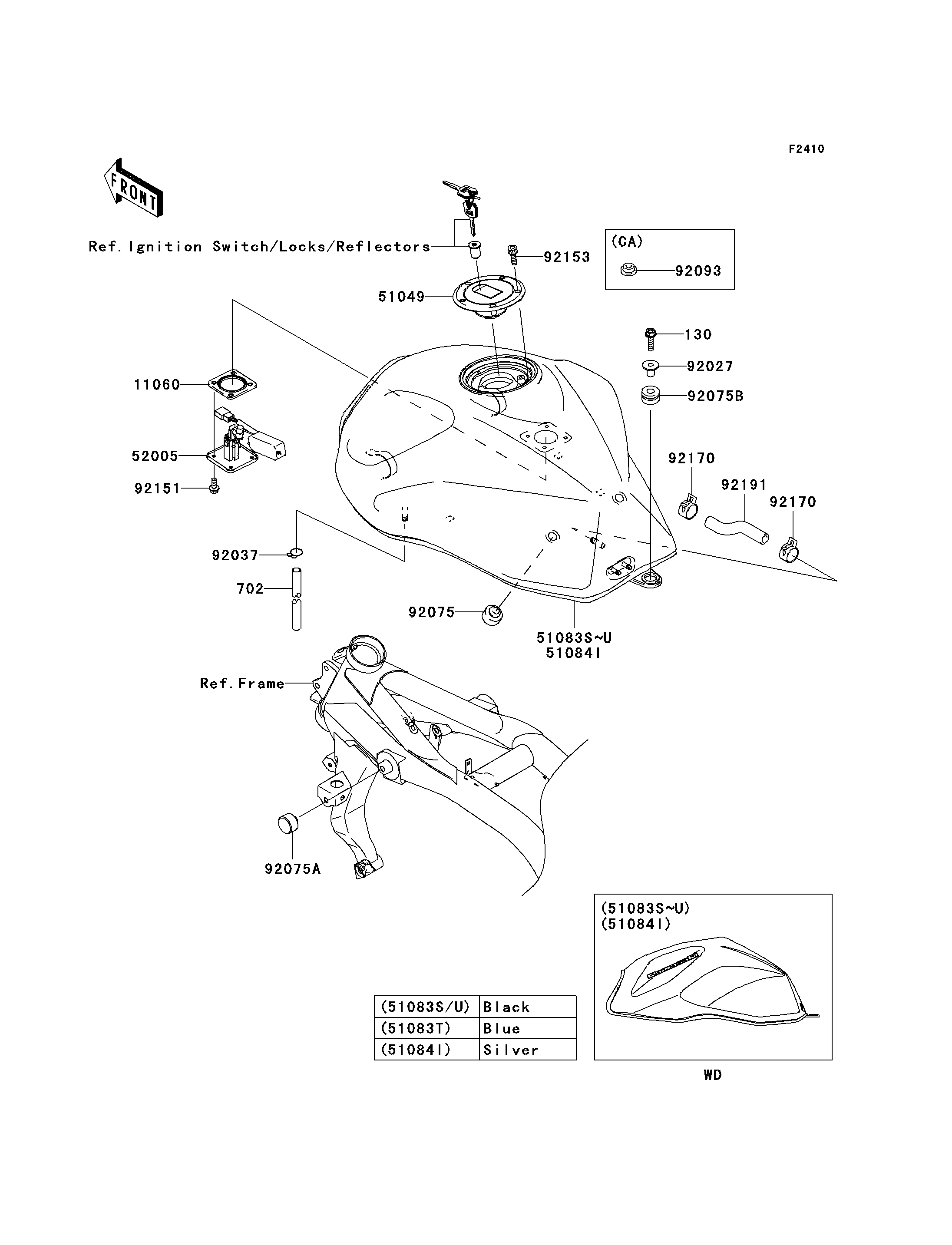

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1952 1
CAP-TANK,FUEL 51049 51049-0008 1
GAUGE,FUEL 52005 52005-1160 1
COLLAR,L=19.3 92027 92027-1780 1
CLAMP,TUBE 92037 92037-010 1
DAMPER 92075 92075-015 2
DAMPER,FUEL TANK 92075A 92075-101 2
DAMPER 92075B 92075-1736 1
BOLT-FLANGED,8X30 130 130G0830 1
TUBE-RUBBER,6X9X750 702 702A06750 1
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,5X16 92153 92153-0492 3
CLAMP 92170 92170-1492 2
TUBE 92191 92191-1801 1
TANK-COMP-FUEL,M.S.BLACK 51083S 51083-5485-660 1 CA
TANK-COMP-FUEL,BLUE 51083T 51083-5486-10E 1 CN
TANK-COMP-FUEL,M.S.BLACK 51083U 51083-5486-660 1 CNUS
TANK-COMP-FUEL,G.SILVER 51084I 51084-5083-474 1 CN
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
