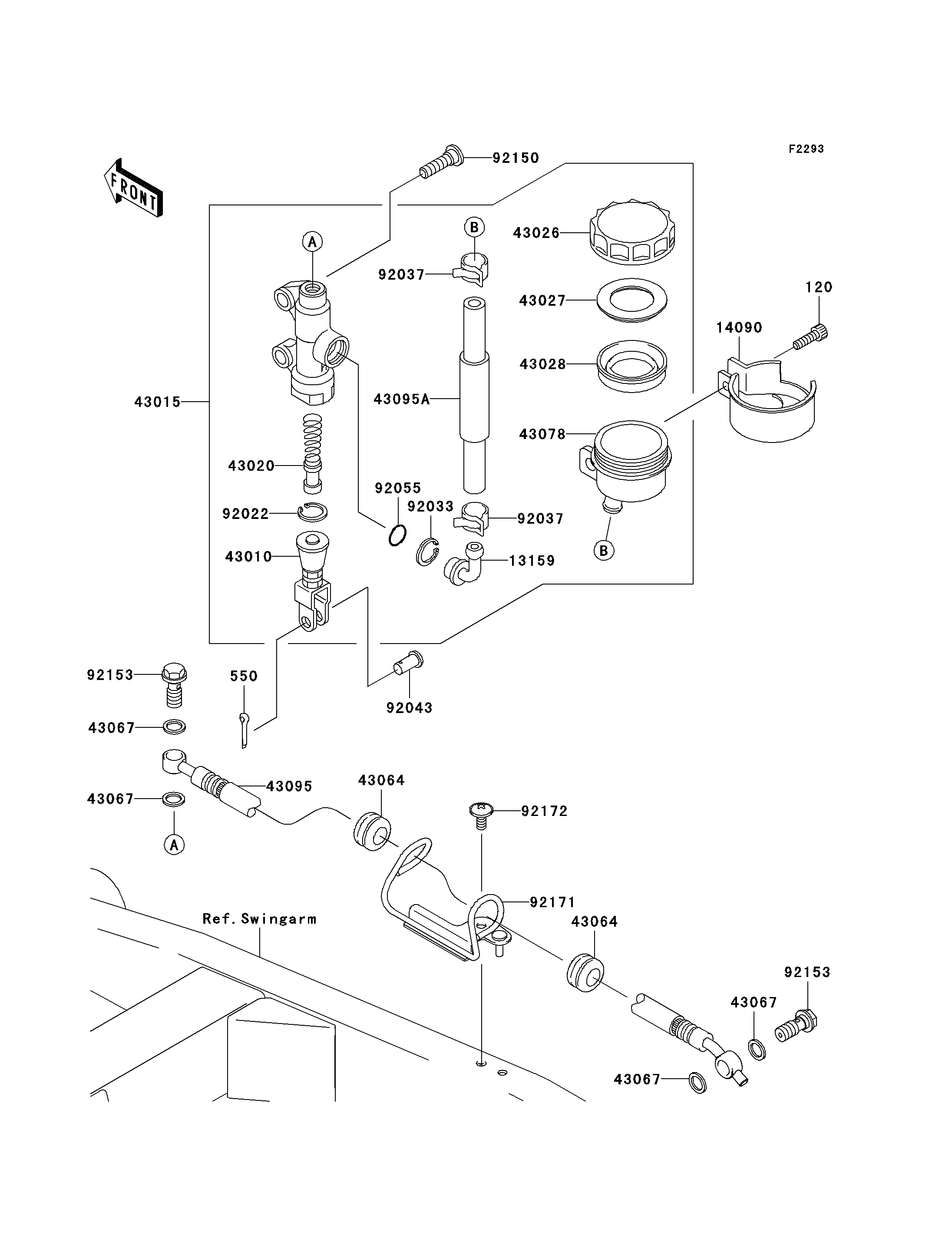

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120S0620 1
PIN-COTTER,2.0X15 550 550D2015 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
COVER,RESERVOIR TANK 14090 14090-1482 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1706 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
GROMMET,HOSE CLAMP 43064 43064-006 2
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1165 1
HOSE-BRAKE,RR 43095 43095-0117 1
HOSE-BRAKE,RR MASTER CYLINDER 43095A 43095-1292 1
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,8X30 92150 92150-1843 2
BOLT,OIL,L=23 92153 92153-0627 2
CLAMP,BRAKE HOSE 92171 92171-0489 1
SCREW,6X14 92172 92172-0004 1
