32043
34024
92002
92015
92145
92151
92192

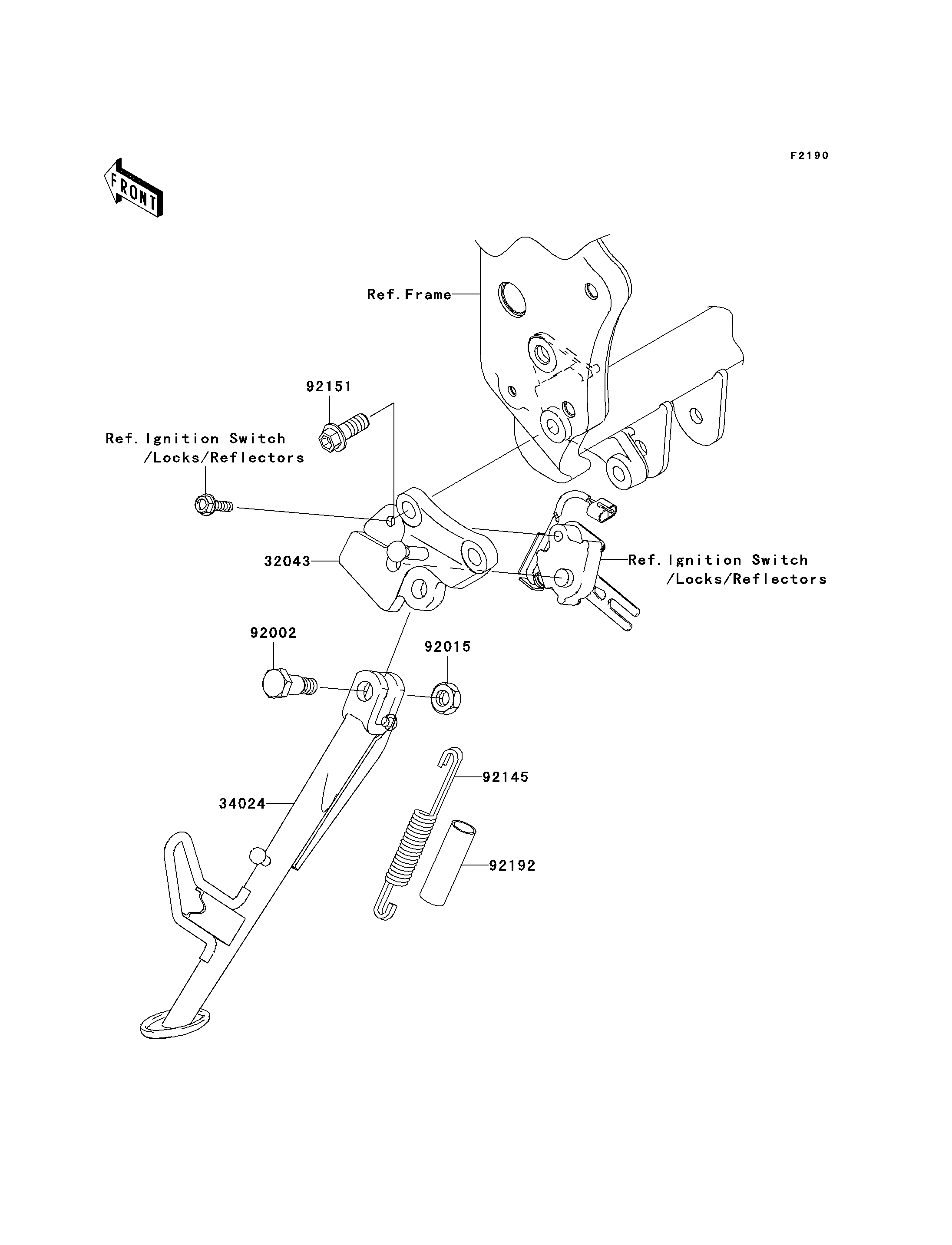

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-0025 1
STAND-SIDE 34024 34024-0008 1
BOLT,SIDE STAND 92002 92002-1935 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
SPRING,SIDE STAND 92145 92145-0085 1
BOLT,FLANGED,10X25 92151 92151-1802 2
TUBE,13X16X60 92192 92192-0080 1
