130
13061
21007
21175
21176
21176
21176A
21176B
21176C
27002
27010
92043
92055
92065
92150
92151
92153
92161
92161A

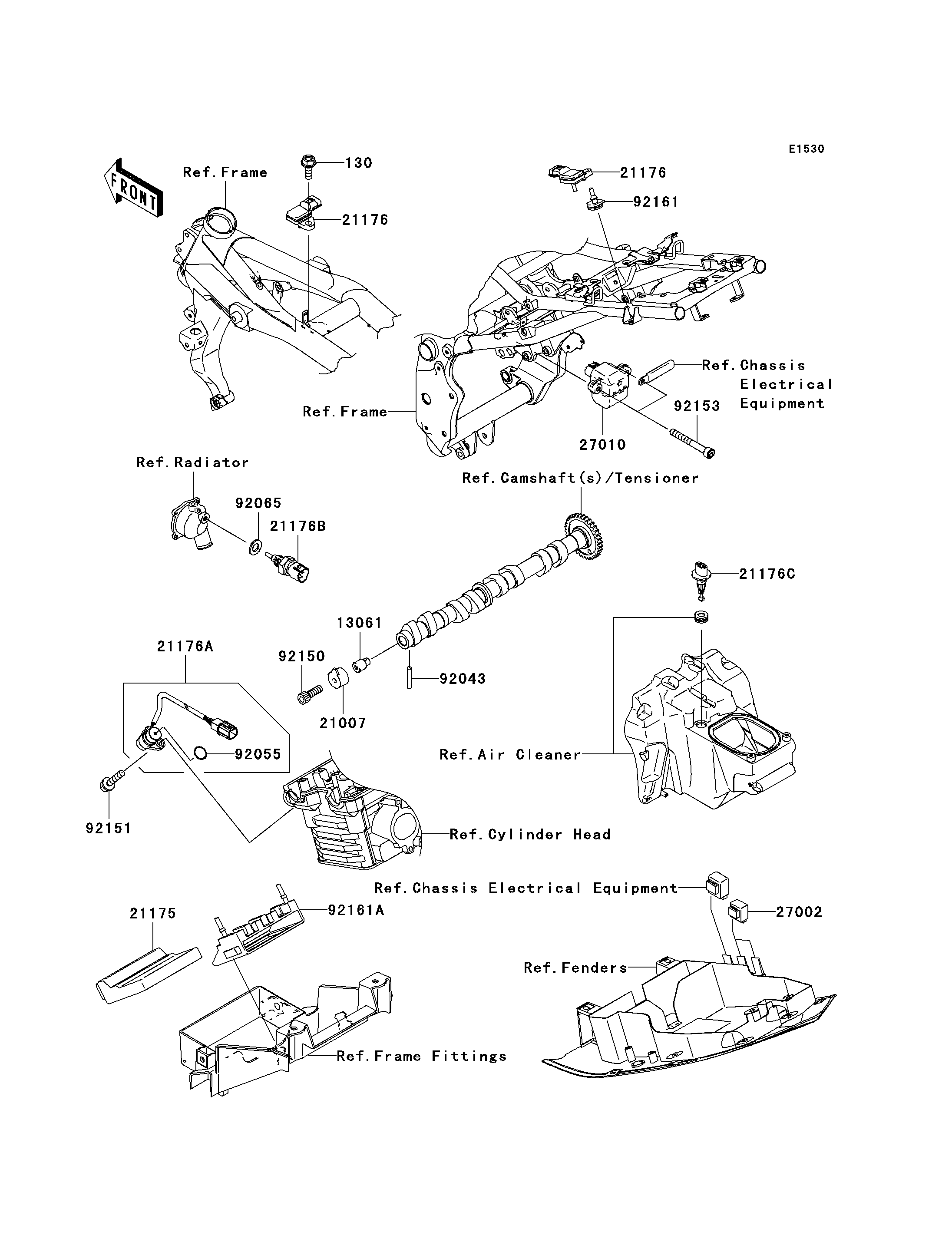

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130J0616 1
BOSS,CAM SENSOR 13061 13061-1687 1
ROTOR 21007 21007-0005 1
CONTROL UNIT-ELECTRONIC 21175 21175-0018 1
SENSOR 21176 21176-0058 2
SENSOR 21176A 21176-1077 1
SENSOR,WATER TEMP 21176B 21176-1120 1
SENSOR,AIR TEMP 21176C 21176-2106 1
RELAY-ASSY 27002 27002-1062 2
SWITCH 27010 27010-0007 1
PIN 92043 92043-1575 1
RING-O 92055 92055-1639 1
GASKET,12X22X2 92065 92065-097 1
BOLT,6X18 92150 92150-1645 1
BOLT,FLANGED,6X16 92151 92151-1774 1
BOLT,4X35 92153 92153-0377 2
DAMPER 92161 92161-0041 1
DAMPER 92161A 92161-0206 1
