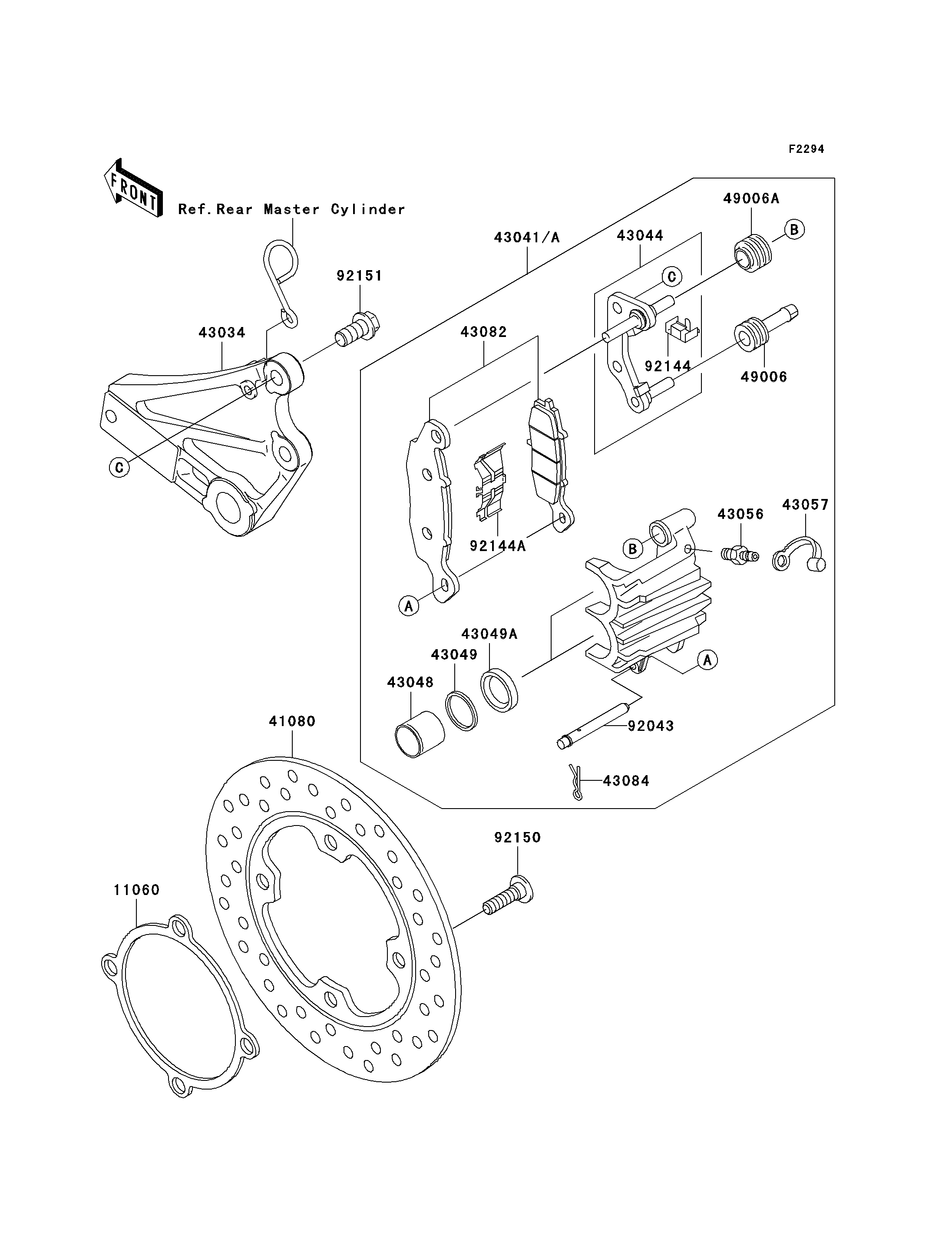

11060
41080
43034
43041A
43044
43048
43049
43049A
43056
43057
43082
43084
49006
49006A
92043
92144
92144A
92150
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DISC PLATE 11060 11060-1357 1
DISC,RR,GOLD 41080 41080-1466-CL 1
HOLDER-BRAKE,REAR CALIPER 43034 43034-1157 1
CALIPER-ASSY,RR,M.F.GRAY 43041A 43041-1876-FE 1
HOLDER-COMP-CALIPER 43044 43044-1116 1
PISTON-CALIPER 43048 43048-1052 2
PACKING,PISTON 43049 43049-1055 2
PACKING,PISTON SEAL 43049A 43049-1096 2
BREATHER-BRAKE 43056 43056-1054 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1235 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1054 1
BOOT,CALIPER 49006A 49006-1095 1
PIN,PAD 92043 92043-1489 1
SPRING,STOPPER 92144 92144-1831 1
SPRING,PAD,RH 92144A 92144-1844 1
BOLT,SOCKET,8X30 92150 92150-1771 4
BOLT,FLANGED,10X20 92151 92151-1511 2
