132
11009
11009A
11060
11060A
13183
14025
14026
14031
14032
14091
16115
52005
92002
92043
92046
92046
92049
92049A
92051
92055
92150
92150
92151
92151
92151
92151A
92151A
92151A
92151B
92151B
92151C
92160
92160A

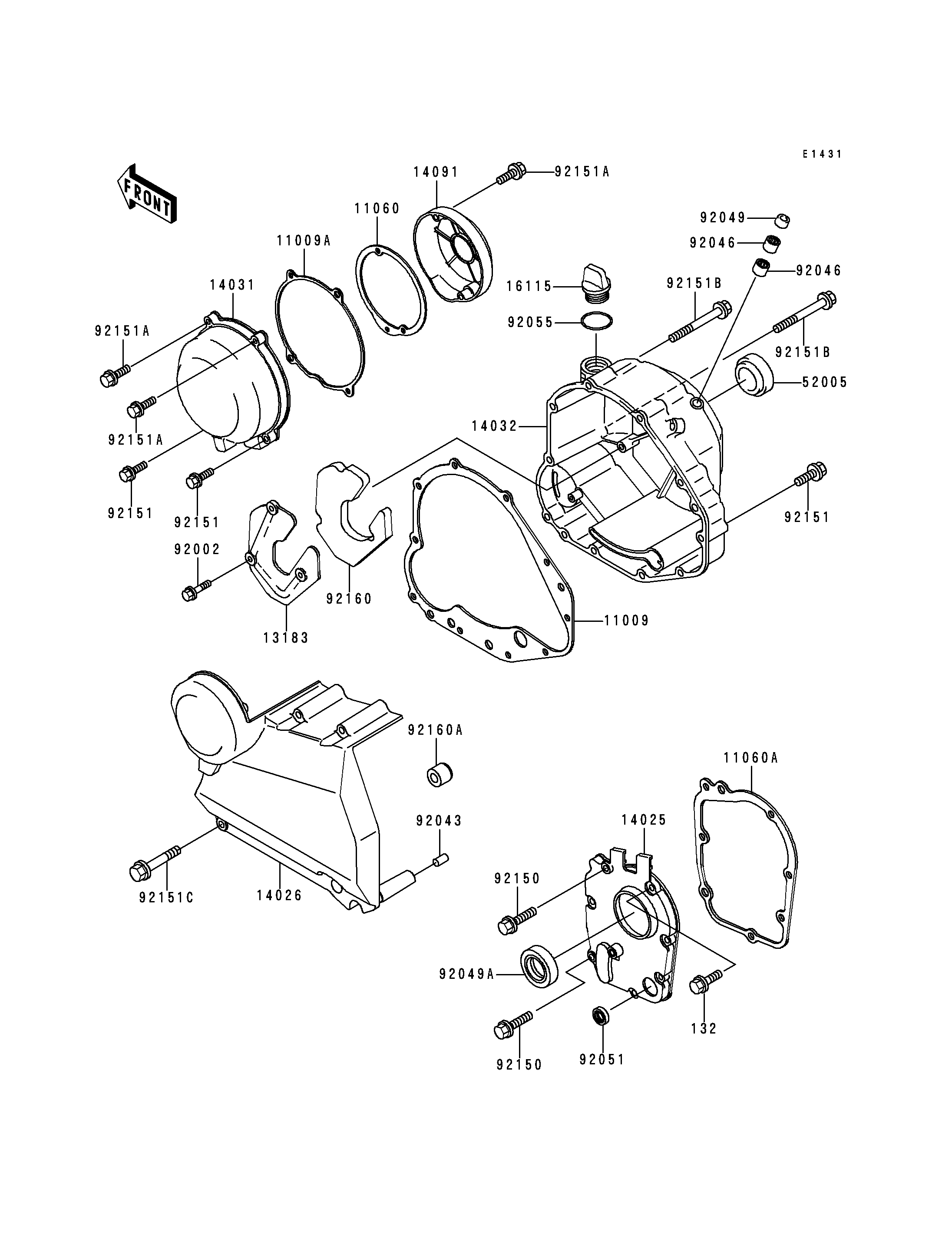

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0620 5
GASKET,CLUTCH COVER 11009 11009-1984 1
GASKET,GENERATOR COVER 11009A 11009-1987 1
GASKET,PULSING COIL CAP 11060 11060-1053 1
GASKET,TRANSMISSION COVER 11060A 11060-1899 1
PLATE,SOUND ARRESTER 13183 13183-1620 1
COVER,TRANSMISSION 14025 14025-1605 1
COVER-CHAIN 14026 14026-1264 1
COVER-GENERATOR 14031 14031-1367 1
COVER-CLUTCH 14032 14032-1496 1
COVER,PULSING 14091 14091-1102 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1017 1
BOLT,6X10 92002 92002-1449 3
PIN,6.2X8X14 92043 92043-1263 1
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,TB12205.5 92049 92049-1271 1
SEAL-OIL,HTC 32 52 10 92049A 92049-1506 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,31.7X2.4 92055 92055-049 1
BOLT,6X35 92150 92150-1137 2
BOLT,6X40 92151 92151-1131 10
BOLT,6X30 92151A 92151-1134 4
BOLT,6X80 92151B 92151-1200 2
BOLT,6X70 92151C 92151-1482 4
DAMPER,SOUND ARRESTER 92160 92160-1246 1
DAMPER 92160A 92160-1993 8
