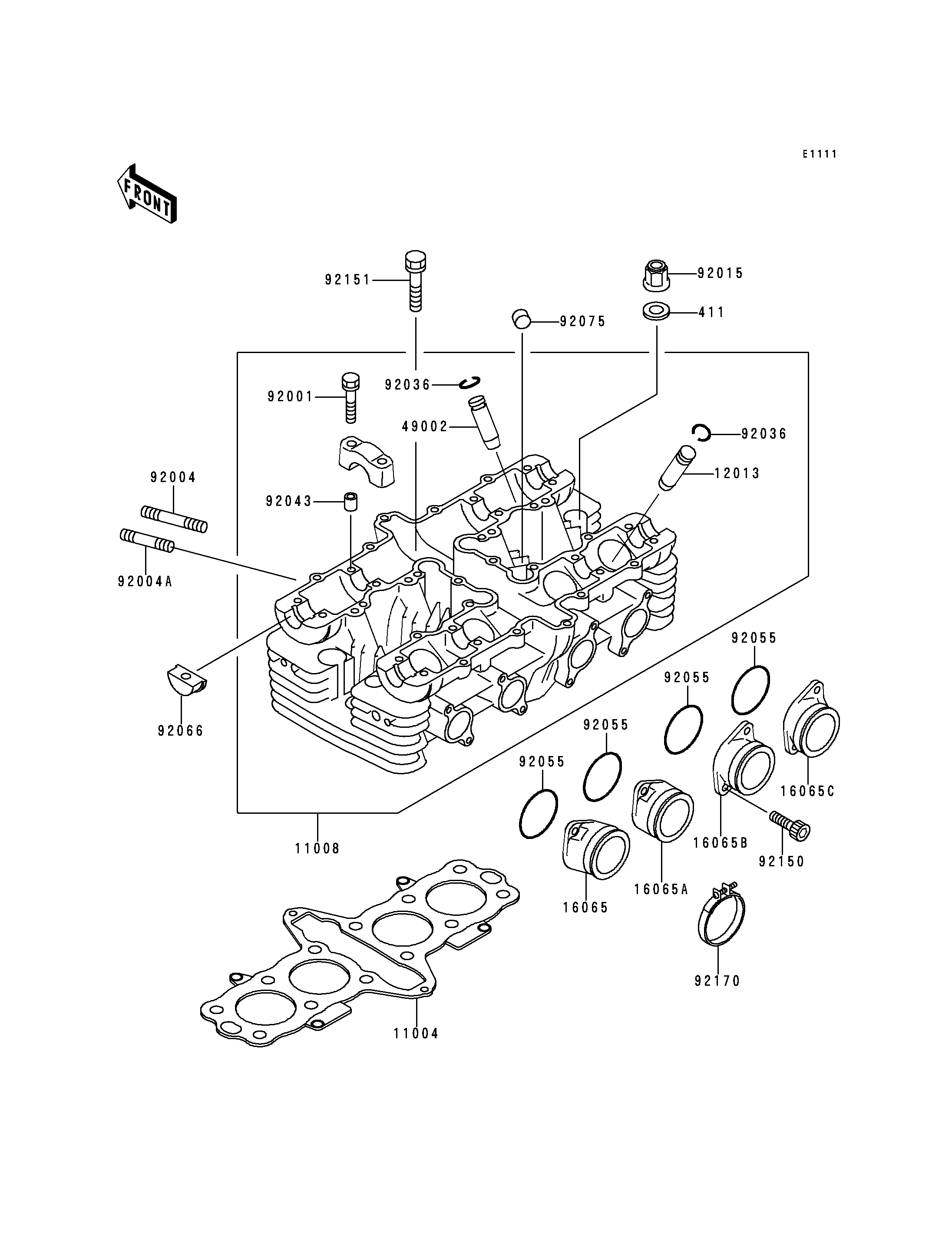

2000 ZR-7 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
411
11004
11008
12013
16065
16065A
16065B
16065C
49002
92001
92004
92004A
92015
92036
92036
92043
92055
92055
92055
92055
92066
92075
92150
92151
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,10MM 411 411B1000 12
GASKET-HEAD 11004 11004-1342 1
HEAD-COMP-CYLINDER 11008 11008-1363 1
GUIDE-VALVE,INTAKE 12013 12013-009 AR
HOLDER-CARBURETOR,#1 16065 16065-1256 1
HOLDER-CARBURETOR,#2 16065A 16065-1257 1
HOLDER-CARBURETOR,#3 16065B 16065-1258 1
HOLDER-CARBURETOR,#4 16065C 16065-1259 1
GUIDE-VALVE,EXHAUST 49002 49002-1002 AR
BOLT,FLANGED,6X38 92001 92001-1105 16
STUD,8X35 92004 92004-1208 4
STUD,8X28.5 92004A 92004-1209 4
NUT,FLANGED CAP,10MM 92015 92015-076 12
RING-SNAP 92036 92036-023 8
PIN,6.2X8X14 92043 92043-1263 16
RING-O,32MM 92055 92055-1256 4
PLUG,HEAD COVER 92066 92066-1509 4
DAMPER 92075 92075-182 4
BOLT,SOCKET,6X14 92150 92150-1818 8
BOLT,8X43 92151 92151-1485 2
CLAMP 92170 92170-1438 4
