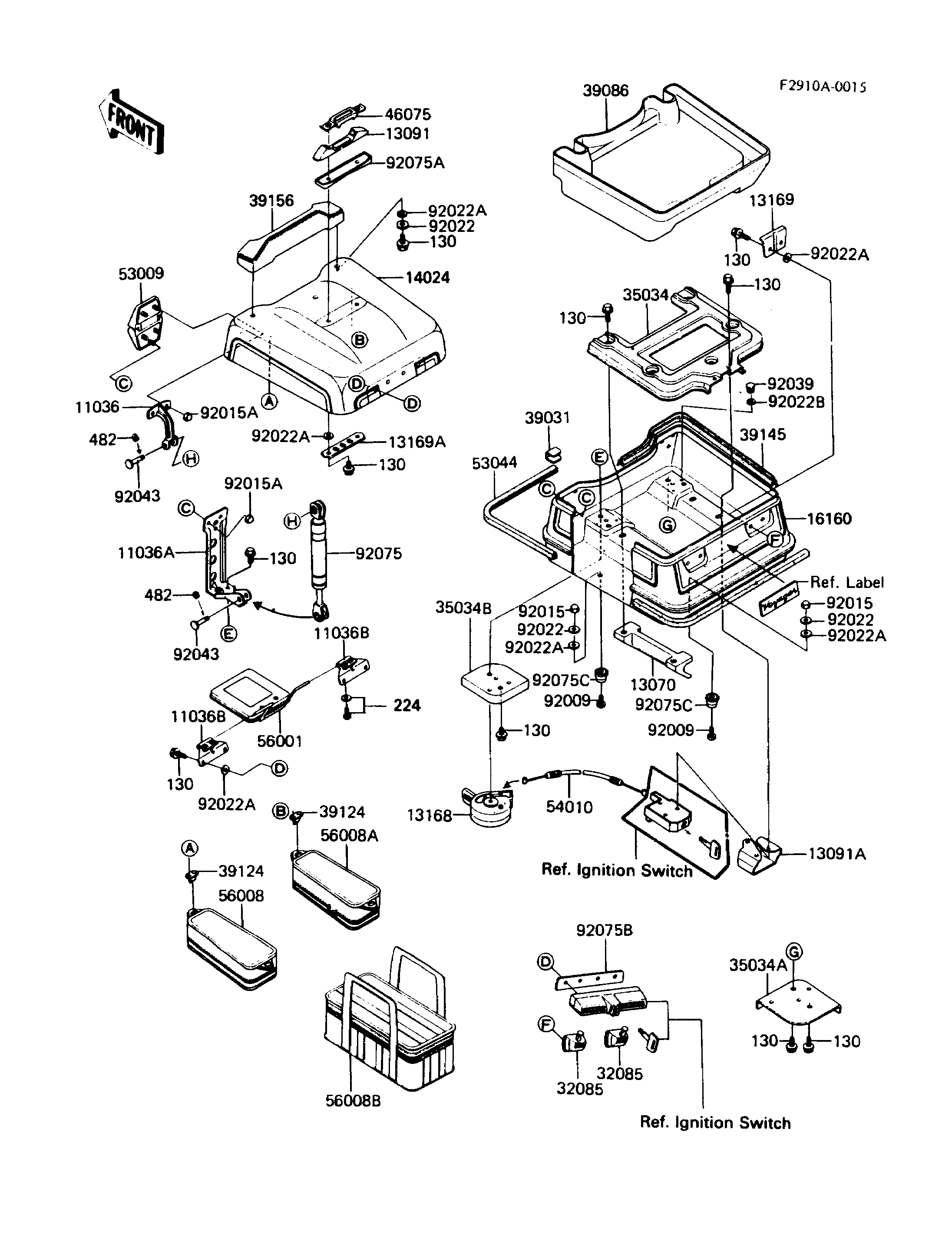

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,TRUNK DAMPER,UPP 11036 11036-1866 2
BRACKET-A,TRUNK DAMPER,LWR 11036A 11036-1867 2
BRACKET-A,TRUNK COVER 11036B 11036-1893 2
GUIDE,TRUNK 13070 13070-1079 2
HOLDER,TRUNK GRIP 13091 13091-1179 1
HOLDER,TRUNK LOCK 13091A 13091-1256 1
LEVER,TRUNK LOCK 13168 13168-1141 1
PLATE,TRUNK STOPPER 13169 13169-1590 2
PLATE,TRUNK 13169A 13169-1591 1
COVER,TRUNK,L.V.RED 14024 14024-5040-P5 1
BODY,TRUNK,L.V.RED 16160 16160-5013-P5 1
STOPPER,TRUNK LOCK 32085 32085-1125 2
REINFORCE,TRUNK BOTTOM 35034 35034-1089 1
REINFORCE,TRUNK DAMPER,RH 35034A 35034-1154 1
REINFORCE,TRUNK DAMPER,LH 35034B 35034-1156 1
CAP-END,TRUNK TRIM 39031 39031-1053 1
PAD-STORAGE,TRUNK 39086 39086-1001 1
SNAP,TRUNK BAG 39124 39124-1001 4
TRIM-SEAL,TRUNK 39145 39145-1002 1
PAD,BLACK 39156 39156-1060 1
GRIP,TRUNK 46075 46075-1034 1
HINGE,TRUNK 53009 53009-1035 2
TRIM,TRUNK SIDE 53044 53044-1041 1
CABLE,TRUNK LOCK 54010 54010-1007 1
MIRROR-ASSY 56001 56001-1137 1
BAG,LH 56008 56008-1021 1
BAG,RH 56008A 56008-1022 1
BAG,CRT,INNER 56008B 56008-1024 1
SCREW,6X28 92009 92009-1066 4
NUT,LOCK 6MM 92015 92015-1262 4
NUT,LOCK 5MM 92015A 92015-1263 10
WASHER,7X28X1.6,BLACK 92022 92022-1392 7
WASHER,RUBBER 92022A 92022-1477 17
WASHER,3.5X10X1.0 92022B 92022-1483 4
RIVET 92039 92039-1041 4
PIN 92043 92043-1142 4
DAMPER,GASS 92075 92075-1449 2
DAMPER,TRUNK GRIP 92075A 92075-1451 1
DAMPER,TRUNK LOCK 92075B 92075-1479 1
DAMPER,TRUNK & SIDEBAG 92075C 92075-1510 4
BOLT-FLANGED,6X16 130 130C0616 24
SCREW-PAN-WP-CROS,5X14 224 224C0514 4
CIRCLIP-TYPE-E,4MM 482 482L4000 4
