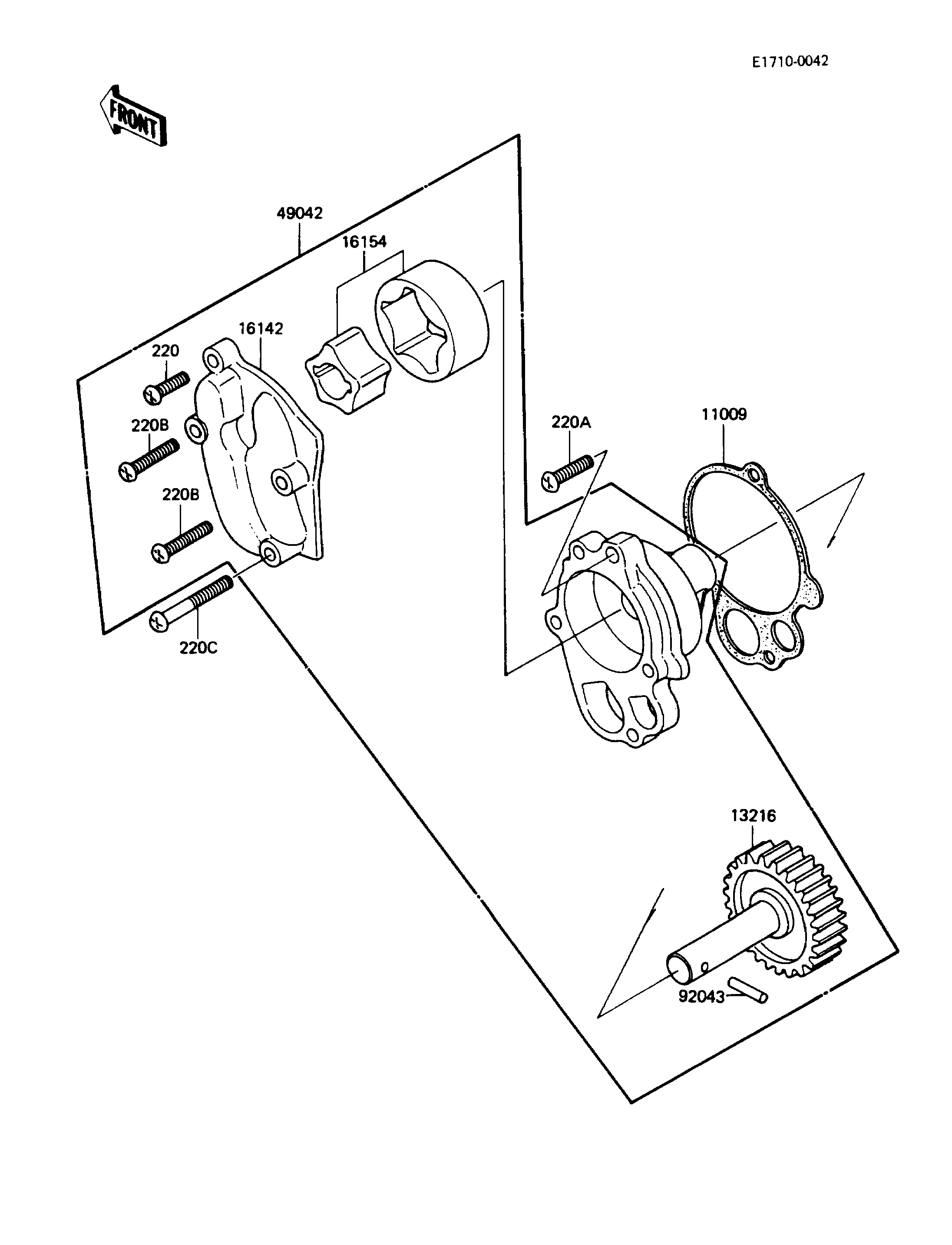

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PUMP 11009 11009-1088 1
GEAR-COMP,OIL PUMP 13216 13216-1018 1
COVER-PUMP 16142 16142-1005 1
ROTOR-PUMP 16154 16154-1007 1
PUMP-OIL 49042 49042-1001 1
PIN,DOWEL,5X17.8 92043 92043-1061 1
SCREW-PAN-CROS,6X18 220 220B0618 1
SCREW-PAN-CROS,6X25 220A 220B0625 1
SCREW-PAN-CROS,6X28 220B 220B0628 2
SCREW-PAN-CROS,6X40 220C 220B0640 1
