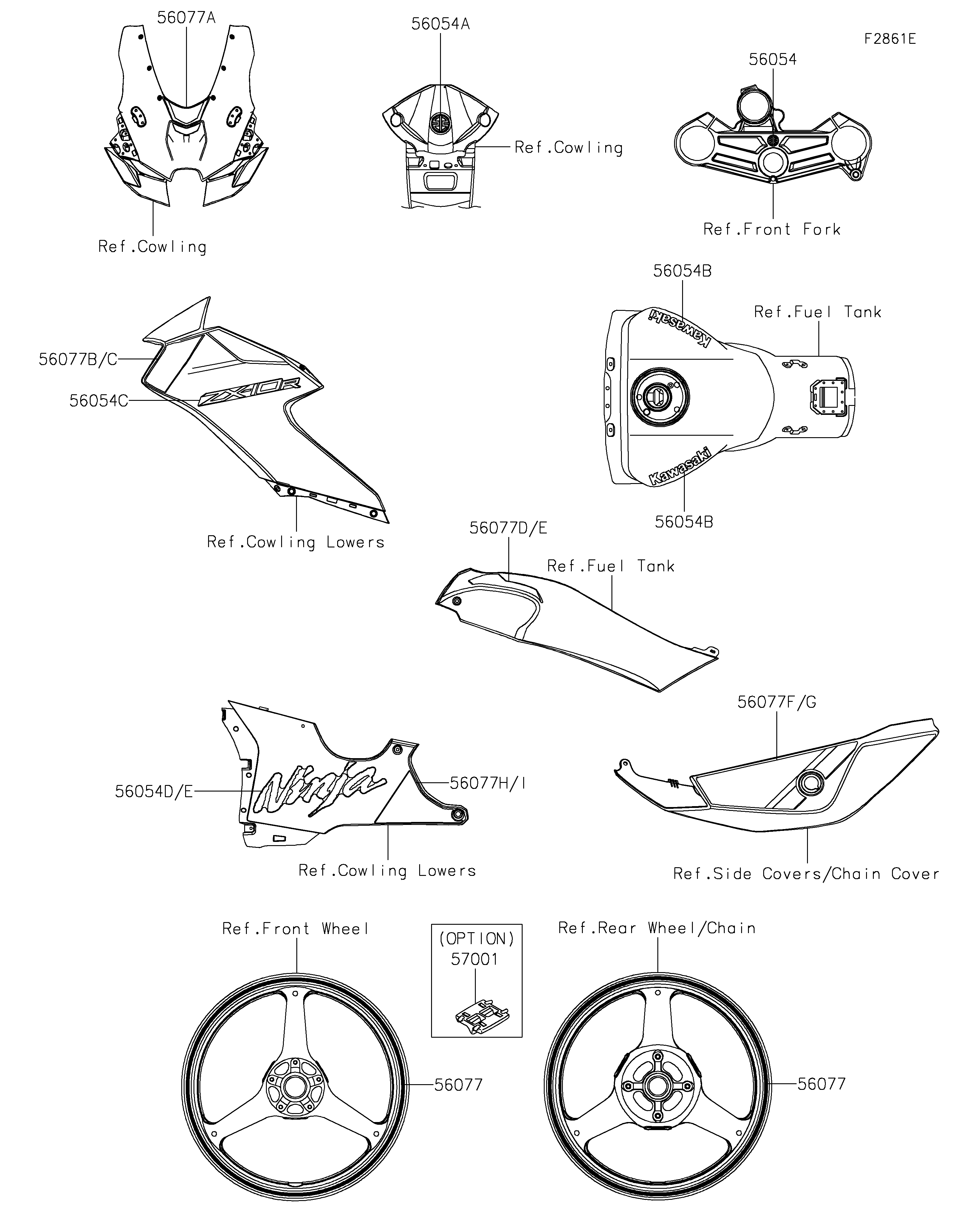

2024 Ninja® ZX-10R ABS - Decals(Black)(LRFAN/LRFAL)
56054
56054A
56054B
56054B
56054C
56054D
56054E
56077
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UPP HOLDER,RIVER | 56054 | 56054-1628 | 1 | ||
| MARK,UPP COWL.,RIVER | 56054A | 56054-2900 | 1 | ||
| MARK,FUEL TANK,KAWASAKI | 56054B | 56054-3982 | 2 | ||
| MARK,SIDE COWL.,ZX-10R | 56054C | 56054-4037 | 2 | ||
| MARK,LWR COWL.,LH,NINJA | 56054D | 56054-4038 | 1 | ||
| MARK,LWR COWL.,RH,NINJA | 56054E | 56054-4039 | 1 | ||
| PATTERN,WHEEL,SIL/BLK,4X1350 | 56077 | 56077-0524 | 4 | ||
| PATTERN,UPP COWL.,CNT | 56077A | 56077-0840 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56077B | 56077-0841 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56077C | 56077-0842 | 1 | ||
| PATTERN,TANK COVER,LH | 56077D | 56077-0843 | 1 | ||
| PATTERN,TANK COVER,RH | 56077E | 56077-0844 | 1 | ||
| PATTERN,TAIL COVER,LH | 56077F | 56077-0845 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077G | 56077-0846 | 1 | ||
| PATTERN,LWR COWL.,LH | 56077H | 56077-0847 | 1 | ||
| PATTERN,LWR COWL.,RH | 56077I | 56077-0848 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
