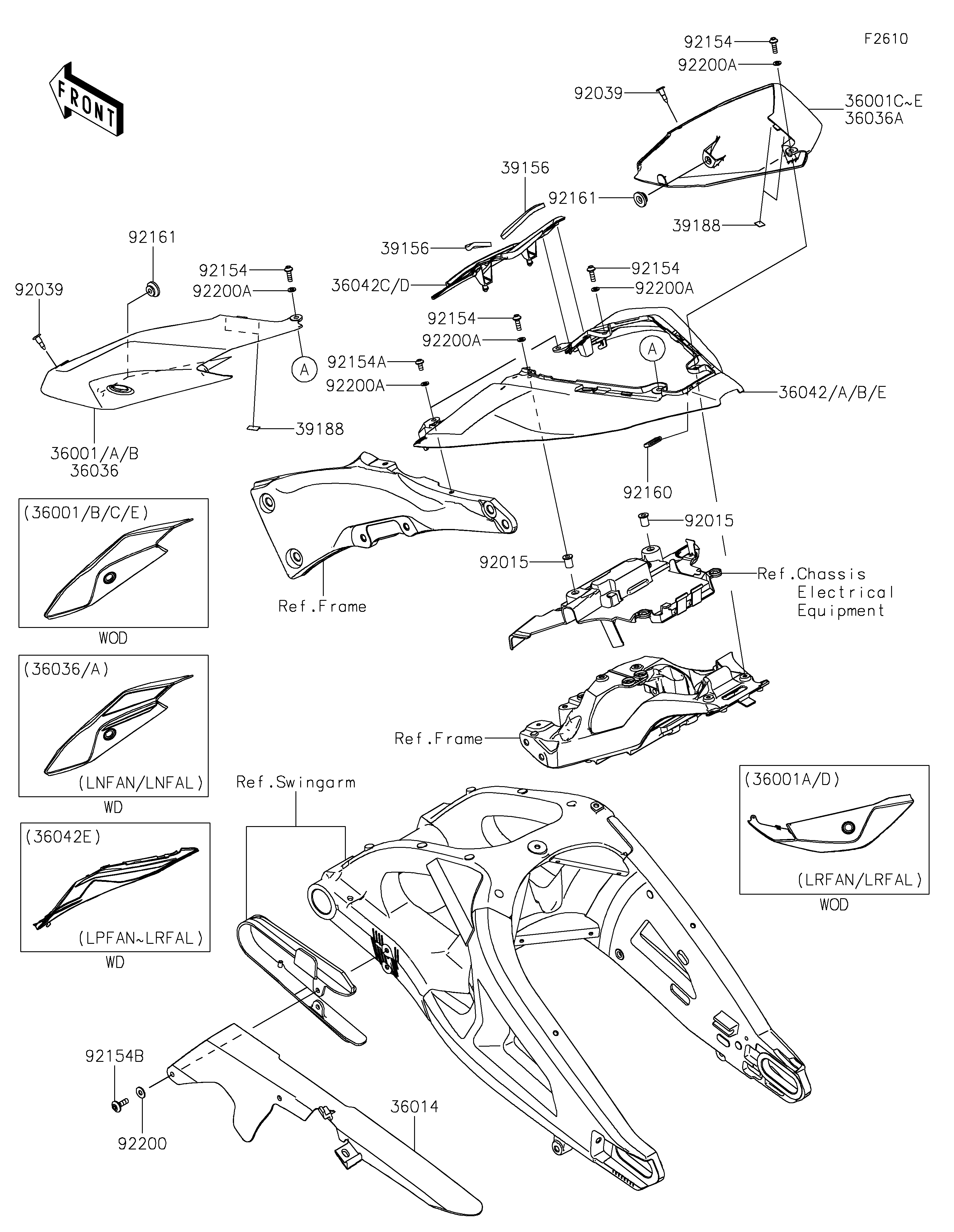

2024 Ninja® ZX-10R ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001A
36001B
36001D
36001E
36014
36042B
36042D
36042E
39156
39156
39188
39188
92015
92015
92039
92039
92154
92154
92154
92154
92154A
92154B
92160
92161
92161
92200
92200A
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,M.F.S.BLACK 36001A 36001-0700-739 1
COVER-SIDE,LH,L.GREEN 36001B 36001-0700-777 1
COVER-SIDE,RH,M.F.S.BLACK 36001D 36001-0701-739 1
COVER-SIDE,RH,L.GREEN 36001E 36001-0701-777 1
CASE-CHAIN 36014 36014-0062 1
COVER-TAIL,TAIL,EBONY 36042B 36042-0006-H8 1
COVER-TAIL,CNT,EBONY 36042D 36042-0007-H8 1
COVER-TAIL,TAIL,EBONY 36042E 36042-5454-H8 1
PAD,10X76X5 39156 39156-2192 2
TAPE 39188 39188-0022 4
NUT,WELL,5MM 92015 92015-1757 2
RIVET 92039 92039-0068 2
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT,SOCKET,5X10 92154A 92154-0211 2
BOLT,SOCKET,6X18 92154B 92154-1694 1
DAMPER 92160 92160-1190 1
DAMPER 92161 92161-1531 4
WASHER,6.2X15X1.2 92200 92200-1762 1
WASHER,5.2X10X1.0 92200A 92200-1820 6
