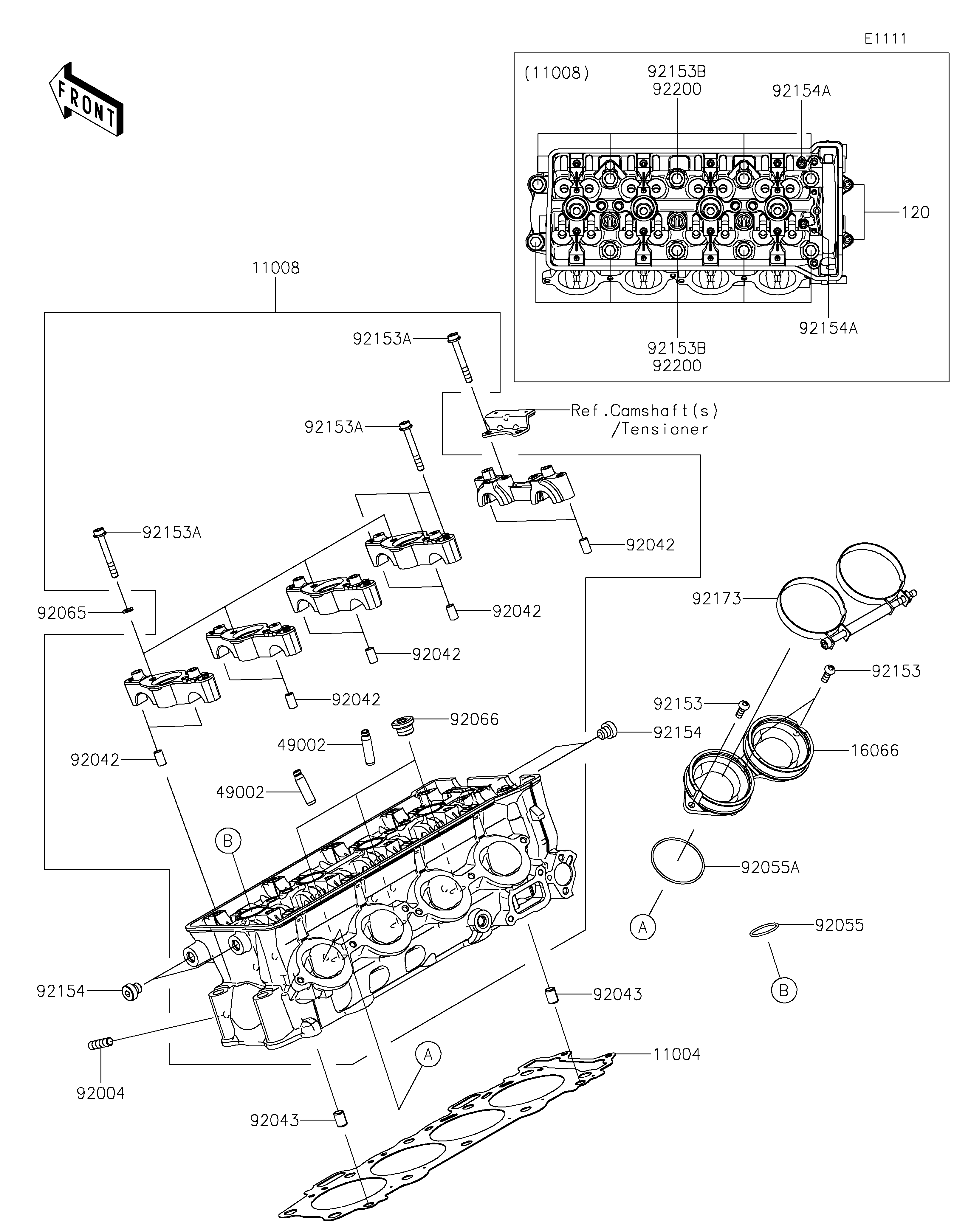

2024 Ninja® ZX-10R ABS - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
16066
49002
49002
92004
92042
92042
92042
92042
92042
92043
92043
92055
92055A
92065
92066
92153
92153
92153A
92153A
92153A
92153B
92153B
92154
92154
92154A
92154A
92173
92200
92200
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0779 1
HEAD-COMP-CYLINDER 11008 11008-1443 1
HOLDER-THROTTLE BODY 16066 16066-0013 2
GUIDE-VALVE 49002 49002-0009 16
STUD,8X18 92004 92004-0049 8
PIN,DOWEL,6.3X8X14 92042 92042-007 10
PIN,8.2X10X14 92043 92043-1264 2
RING-O,25.5X2 92055 92055-0074 4
RING-O,50X1.9 92055A 92055-0914 4
GASKET 92065 92065-096 4
PLUG,16X10 92066 92066-0129 3
BOLT,TORX,6X18 92153 92153-0454 6
BOLT,SOCKET,6X45 92153A 92153-0656 20
BOLT,FLANGED,10X90 92153B 92153-1044 10
BOLT,SOCKET,10X10 92154 92154-3844 4
BOLT,SOCKET,5X14 92154A 92154-3846 2
CLAMP 92173 92173-0222 2
WASHER,10.5X19X2.3 92200 92200-0114 10
BOLT-SOCKET,6X30 120 120CD0630 2
