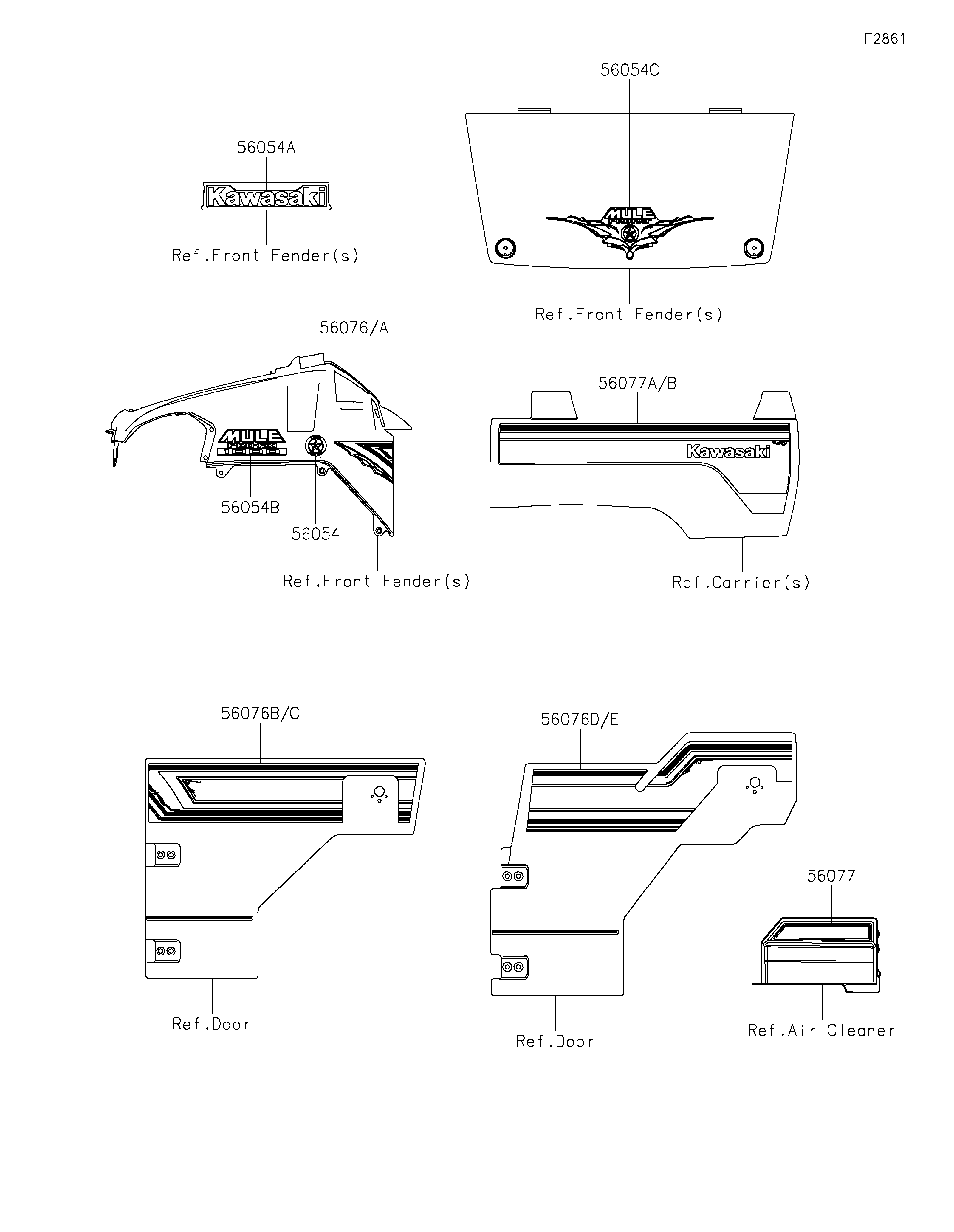

2024 MULE PRO-FXT 1000 LE RANCH EDITION - Decals

56054
56054A
56054B
56054C
56076
56076A
56076B
56076C
56076D
56076E
56077
56077A
56077B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,RANCH EDITION 56054 56054-1816 2
MARK,KAWASAKI 56054A 56054-3890 1
MARK,MULE PRO-FXT 1000 56054B 56054-4014 2
MARK,RANCH EDITION 56054C 56054-4016 1
PATTERN,FR FENDER,LH 56076 56076-0222 1
PATTERN,FR FENDER,RH 56076A 56076-0223 1
PATTERN,FR SIDE GUARD,LH 56076B 56076-4147 1
PATTERN,FR SIDE GUARD,RH 56076C 56076-4148 1
PATTERN,RR SIDE GUARD,LH 56076D 56076-4149 1
PATTERN,RR SIDE GUARD,RH 56076E 56076-4150 1
PATTERN,AIR FILTER COVER 56077 56077-0159 1
PATTERN,CARRIER PANEL,LH 56077A 56077-0160 1
PATTERN,CARRIER PANEL,RH 56077B 56077-0161 1
