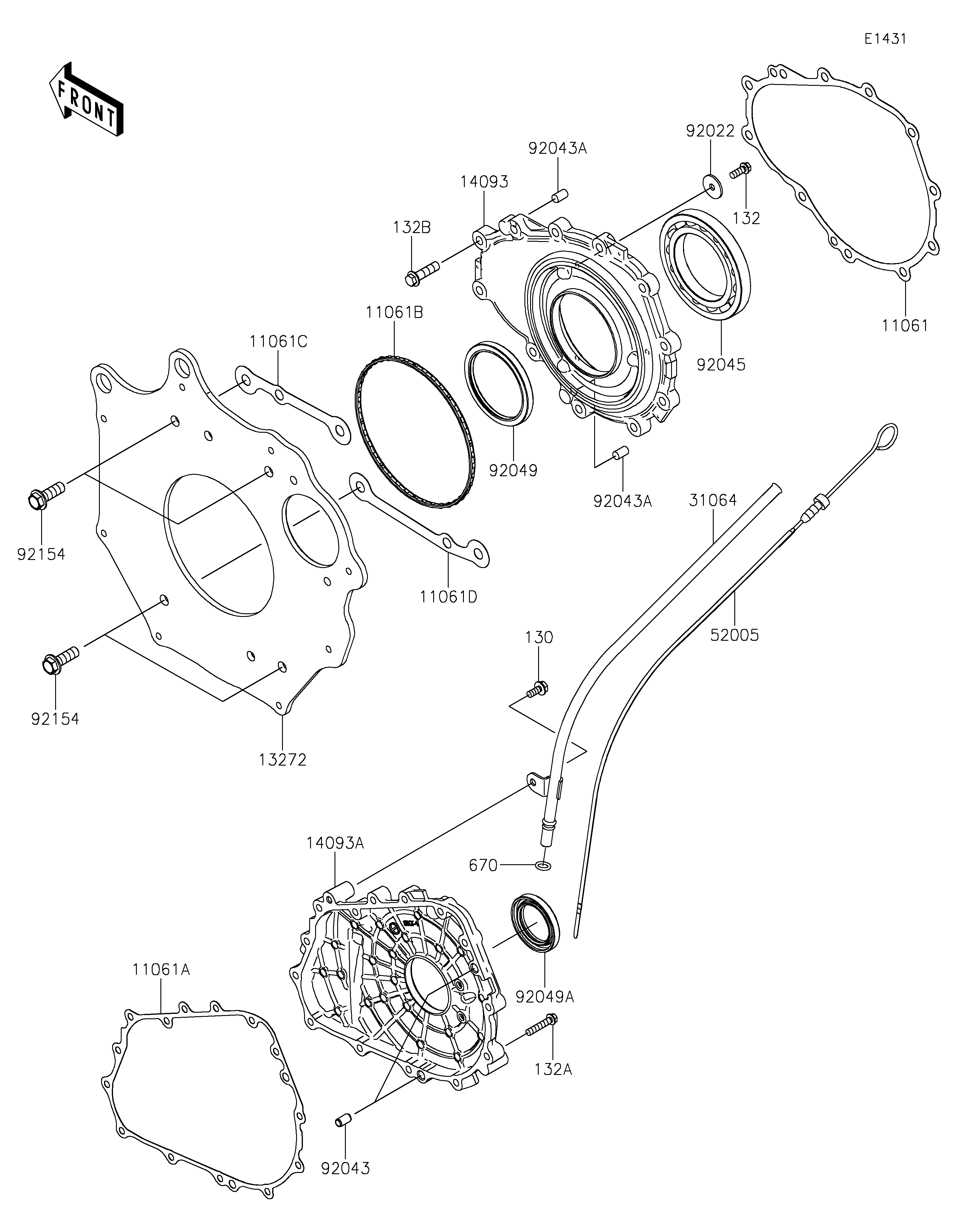

2024 MULE PRO-FXT™ 1000 LE RANCH EDITION - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
11061C
11061D
13272
14093
14093A
31064
52005
92022
92043
92043A
92043A
92045
92049
92049A
92154
92154
130
132
132A
132B
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER 11061 11061-1305 1
GASKET,CRANKCASE COVER 11061A 11061-1461 1
GASKET,COVER-BACK PLATE 11061B 11061-1462 1
GASKET,CRANKCASE UPPER 11061C 11061-1533 1
GASKET,CRANKCASE LOWER 11061D 11061-1534 1
PLATE,CLUTCH COVER,BACK 13272 13272-4106 1
COVER,CRANKCASE LH 14093 14093-1385 1
COVER,CRANKCASE RH 14093A 14093-1386 1
PIPE-COMP 31064 31064-0753 1
GAUGE,OIL 52005 52005-0783 1
WASHER,6.5X24X2 92022 92022-1690 3
PIN,6.2X8X14 92043 92043-1263 2
PIN,8X14 92043A 92043-1567 2
BEARING-BALL,16014CS45 92045 92045-0709 1
SEAL-OIL 92049 92049-0869 1
SEAL-OIL 92049A 92049-0875 1
BOLT-FLANGED,10X30 92154 92154-7039 4
BOLT-FLANGED,6X14 130 130BA0614 1
BOLT-FLANGED-SMALL,6X16 132 132BA0616 3
BOLT-FLANGED-SMALL,6X30 132A 132BA0630 14
BOLT-FLANGED-SMALL,8X30 132B 132BA0830 11
O RING,10MM 670 670D2010 1
