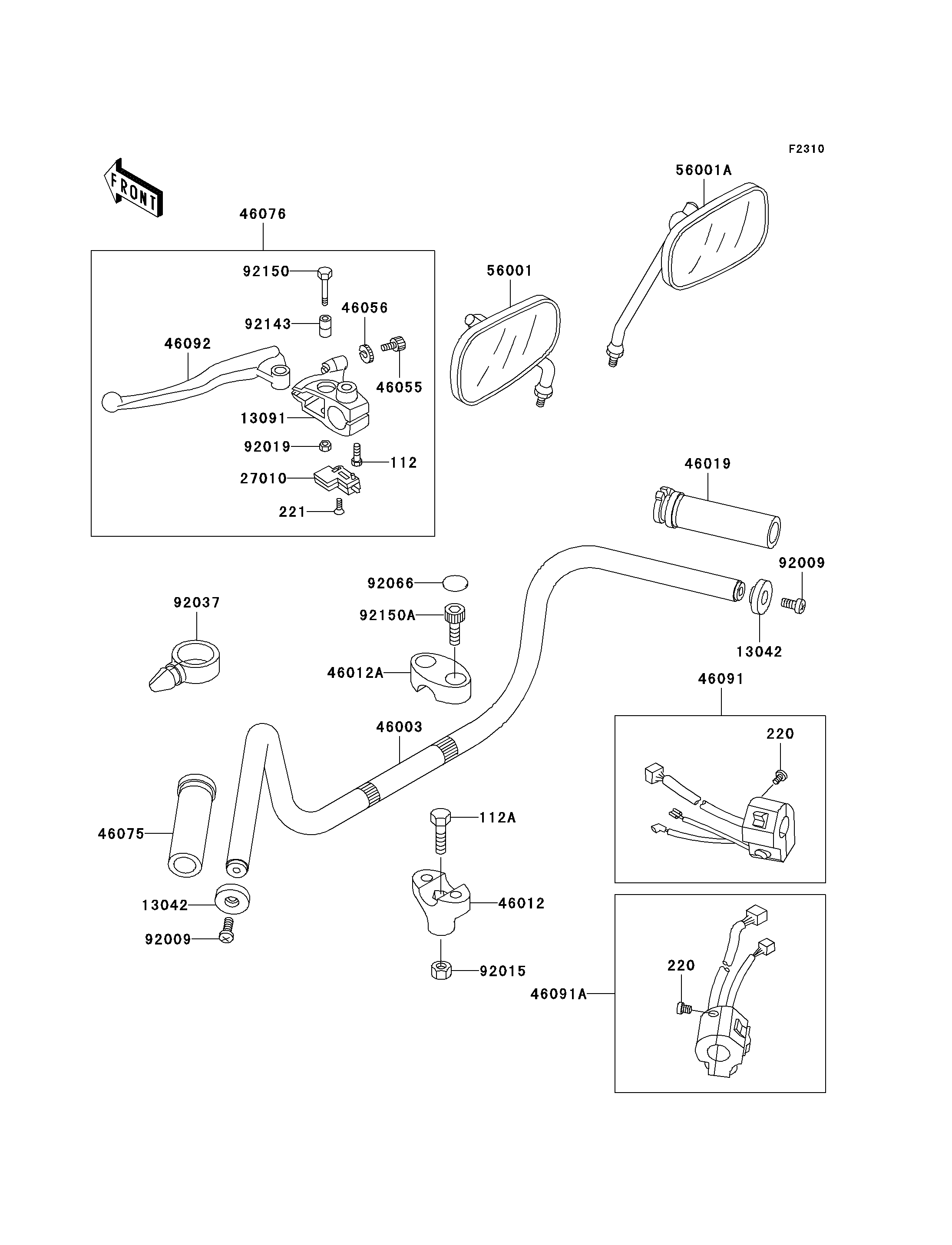

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112G0620 1
BOLT-UPSET,10X65 112A 112H1065 2
SCREW-PAN-CROS 220 220E0516 4
SCREW-CSK-CROS,3X20 221 221B0320 1
WEIGHT,HANDLE 13042 13042-1068 2
HOLDER,CLUTCH LEVER,SILVER 13091 13091-1671 1
SWITCH,CLUTCH 27010 27010-1268 1
HANDLE 46003 46003-1435 1
HOLDER-HANDLE,LWR 46012 46012-1272 2
HOLDER-HANDLE,UPP 46012A 46012-1273 2
GRIP-ASSY,THROTTLE 46019 46019-1065 1
SCREW,CABLE ADJUST,8MM 46055 46055-003 1
NUT,CABLE ADJUST LOCK,8MM 46056 46056-005 1
GRIP,LH 46075 46075-1074 1
LEVER-ASSY-GRIP,CLUTCH,SILVER 46076 46076-1174 1
HOUSING-ASSY-CONTROL,RH 46091 46091-1637 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-1638 1
LEVER-GRIP,CLUTCH 46092 46092-1164 1
MIRROR-ASSY,LH 56001 56001-1451 1
MIRROR-ASSY,RH 56001A 56001-1452 1
SCREW,8X20 92009 92009-1484 2
NUT,LOCK,FLANGED,10MM 92015 92015-1717 2
NUT,LOCK,6MM 92019 92019-008 1
CLAMP,HOSE 92037 92037-1827 2
PLUG 92066 92066-1285 4
COLLAR 92143 92143-1351 1
BOLT,LEVER SET 92150 92150-1330 1
BOLT,SOCKET,10X23 92150A 92150-1942 4
