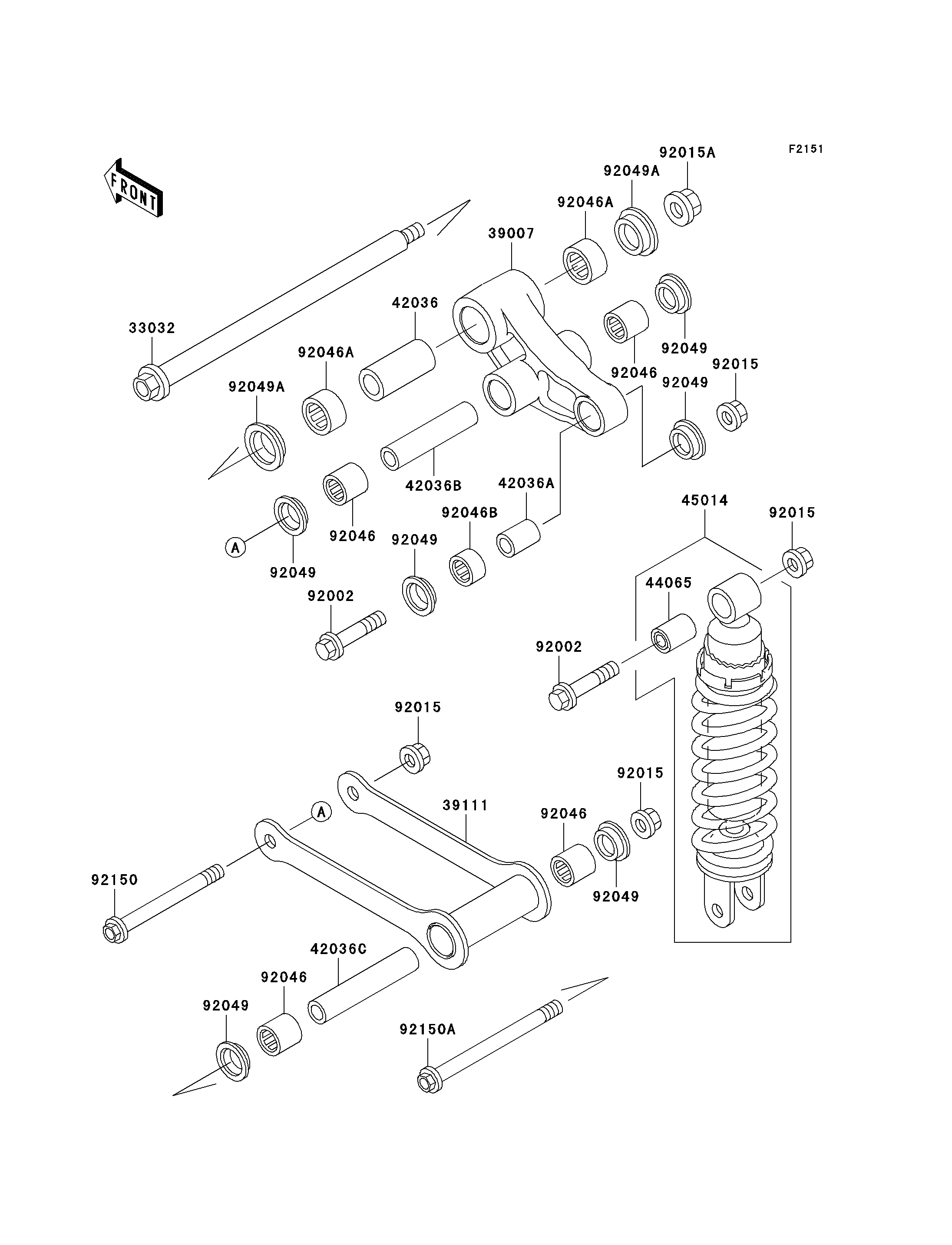

1996 Vulcan 800 Classic - Suspension/Shock Absorber

33032
39007
39111
42036
42036A
42036B
42036C
44065
45014
92002
92002
92015
92015
92015
92015
92015A
92046
92046
92046
92046
92046A
92046A
92046B
92049
92049
92049
92049
92049
92049
92049A
92049A
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-SWING ARM 33032 33032-1176 1
ARM-SUSP,UNI TRAK 39007 39007-1233 1
ROD-TIE,SUSPENSION 39111 39111-1141 1
SLEEVE,20X28X60 42036 42036-1207 1
SLEEVE,12.1X20X30 42036A 42036-1234 1
SLEEVE,12.1X20X92 42036B 42036-1322 1
SLEEVE,12.1X20X108 42036C 42036-1323 1
BUSHING,SHOCKABSORBER 44065 44065-1017 1
SHOCKABSORBER 45014 45014-1598 1
BOLT,12X55 92002 92002-1130 2
NUT,FLANGED,12MM 92015 92015-1433 4
NUT,FLANGED,16MM 92015A 92015-1946 1
BEARING-NEEDLE,BM202726 92046 92046-1110 4
BEARING-NEEDLE,BM2817 92046A 92046-1111 2
BEARING-NEEDLE,BM202715 92046B 92046-1112 1
SEAL-OIL,ARM,CNT 92049 92049-1109 6
SEAL-OIL 92049A 92049-1181 2
BOLT,FLANGED,12X117 92150 92150-1895 1
BOLT,FLANGED,12X145 92150A 92150-1896 1
