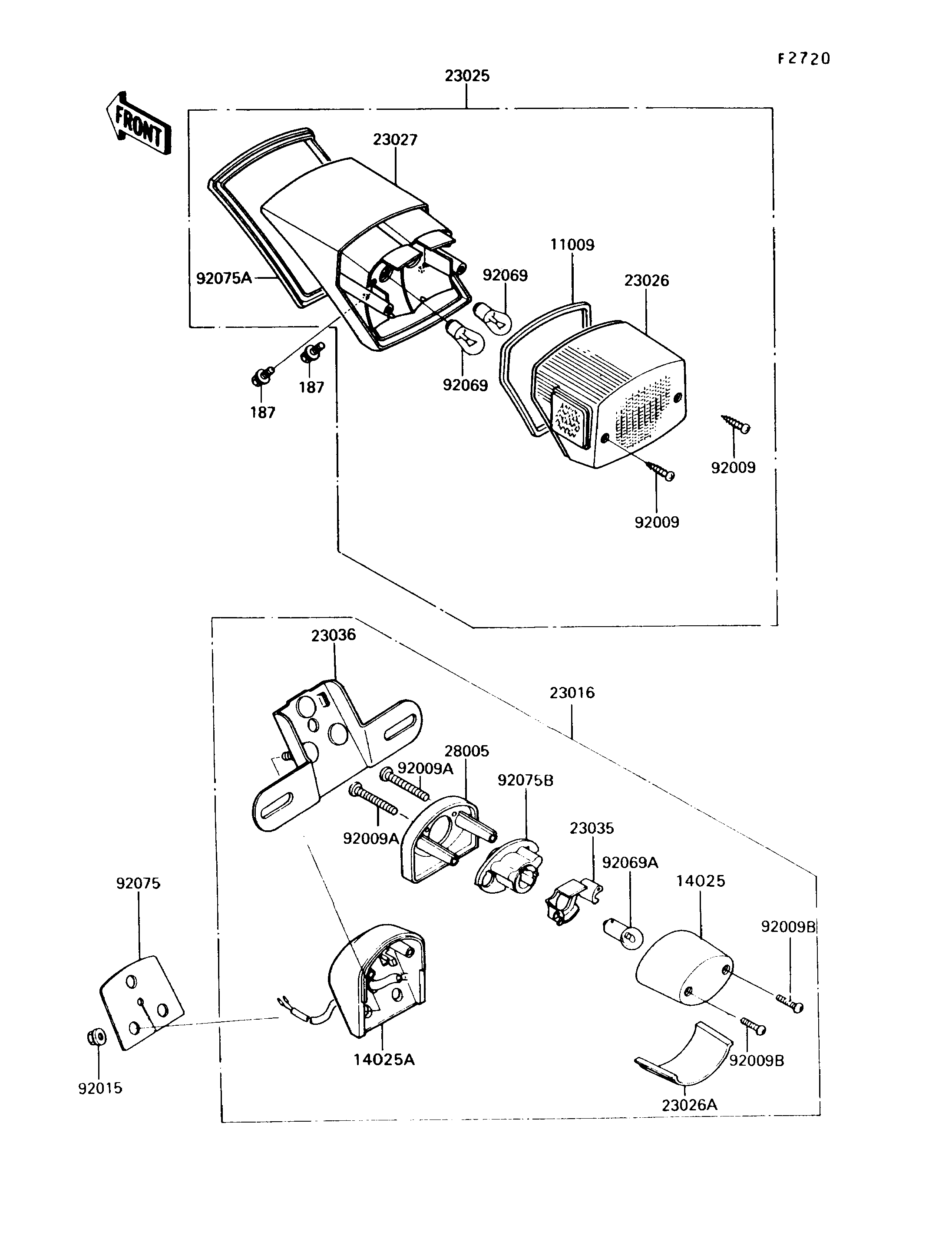

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP 187 187D0614 3
GASKET,TAIL LAMP 11009 11009-1496 1
COVER,LICENSE LAMP 14025 14025-1725 1
COVER,LICENSE LAMP 14025A 14025-1728 1
LAMP-ASSY,LICENSE 23016 23016-1061 1
LAMP-TAIL 23025 23025-1116 1
LENS,TAIL LAMP 23026 23026-1063 1
LENS,LICENSE LAMP 23026A 23026-1064 1
BODY-COMP-TAIL LAMP 23027 23027-1060 1
REFLECTOR-LAMP,LICENSE 23035 23035-1060 1
BRACKET-TAIL LAMP 23036 23036-1104 1
BODY-LAMP,LICENSE 28005 28005-1051 1
SCREW,TAPPING,4X25 92009 92009-1069 2
SCREW,TAPPING,5X40 92009A 92009-1263 2
SCREW,TAPPING,4X20 92009B 92009-1378 2
NUT,FLANGED,6MM 92015 92015-1367 3
BULB,12V 27/8W 92069 92069-059 2
BULB,12V 8W 92069A 92069-1012 1
DAMPER,LICENSE LAMP 92075 92075-1676 1
DAMPER,TAIL LAMP 92075A 92075-1692 1
DAMPER,LICENSE LAMP 92075B 92075-1694 1
