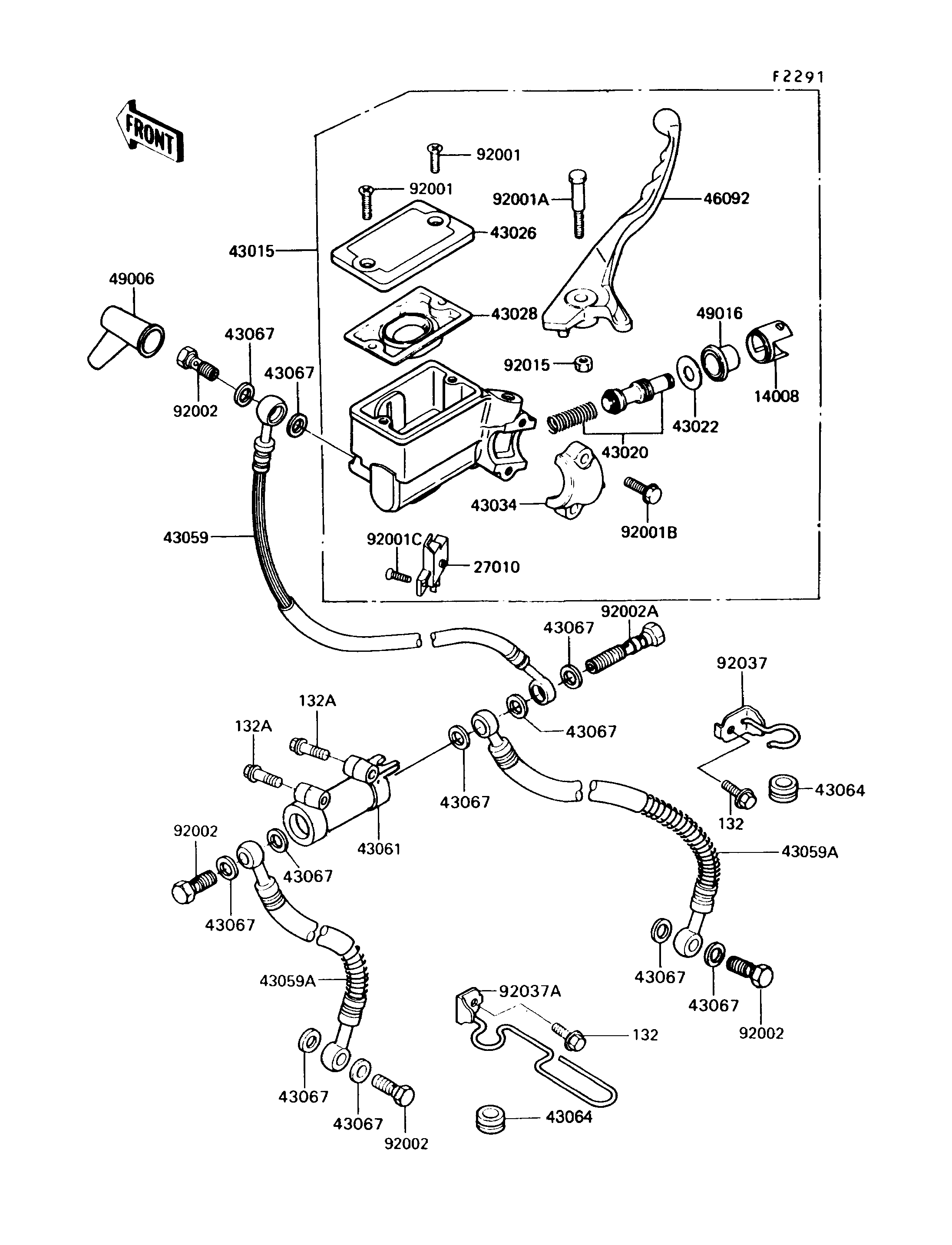

1990 Vulcan 750 - Front Master Cylinder(VN750-A6)

132
132
132A
132A
14008
27010
43015
43020
43022
43026
43028
43034
43059
43059A
43059A
43061
43064
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
46092
49006
49016
92001
92001
92001A
92001B
92001C
92002
92002
92002
92002
92002A
92015
92037
92037
92037A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132E0612 2
BOLT-FLANGED-SMALL 132A 132G0635 2
LINER,PISTON 14008 14008-1035 1
SWITCH,BRAKE 27010 27010-1056 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1313 1
PISTON-COMP-BRAKE 43020 43020-1079 1
STOPPER-BRAKE,PISTON 43022 43022-1009 1
CAP-BRAKE 43026 43026-1056 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1029 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1001 1
HOSE-BRAKE 43059 43059-1293 1
HOSE-BRAKE 43059A 43059-1310 2
JOINT-BRAKE 43061 43061-1002 1
GROMMET,HOSE CLAMP 43064 43064-006 2
WASHER,10.5X15X1.5 43067 43067-001 11
LEVER-GRIP,FRONT BRAKE 46092 46092-1150 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,BRAKE PISTON 49016 49016-1041 1
SCREW-CSK-CROS,5X12,BLACK 92001 92001-1055 2
BOLT,6X37.3,BLACK 92001A 92001-1512 1
BOLT,6X25,W/WASHER,BLACK 92001B 92001-1513 2
SCREW-CSK-CROS,4X10,BLACK 92001C 92001-1532 1
BOLT,OIL,L=23 92002 92002-1888 4
BOLT,OIL,L=37 92002A 92002-1909 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
CLAMP,BRAKE HOSE 92037 92037-1218 1
CLAMP,BRAKE HOSE,LH 92037A 92037-1367 1
