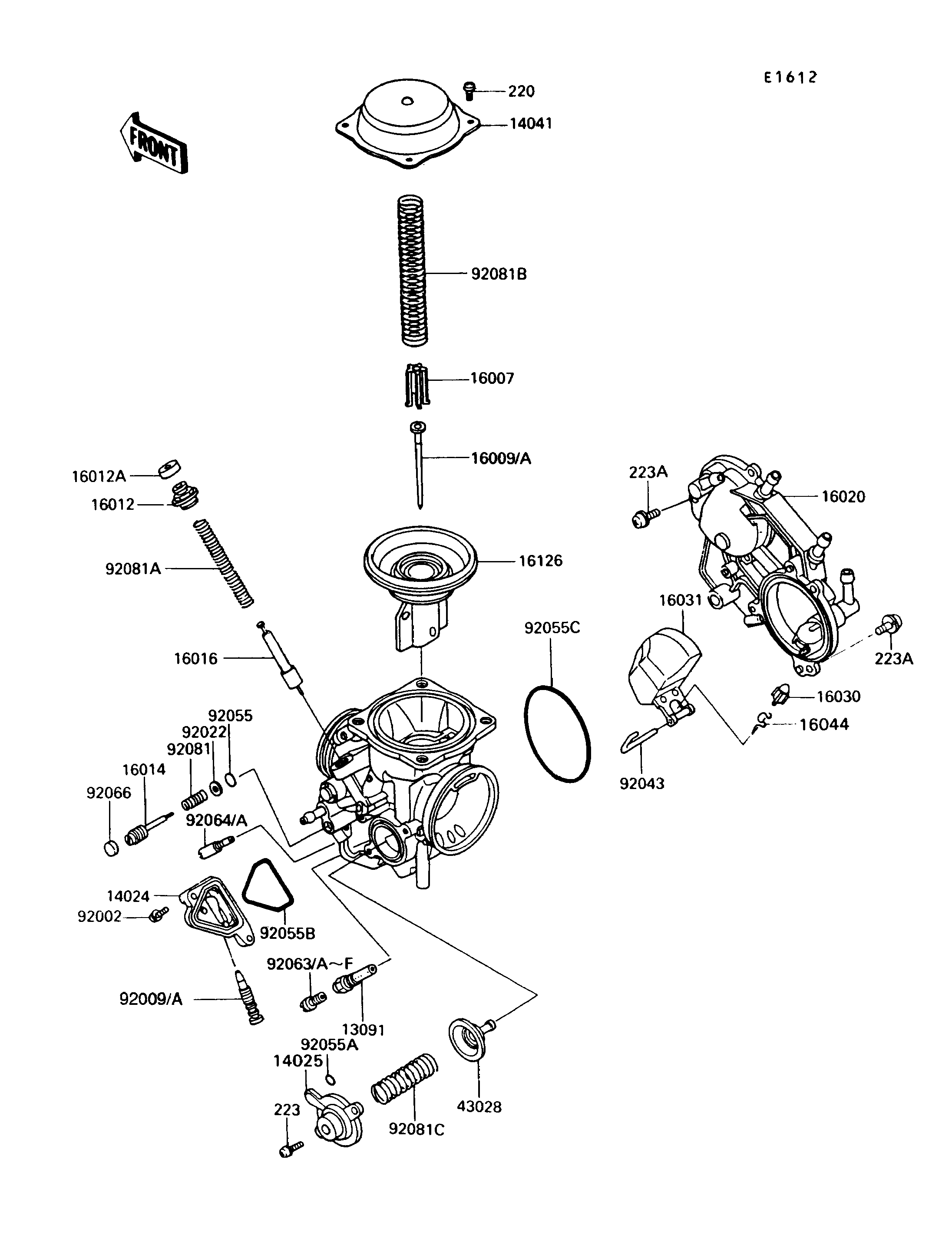

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1384 2
COVER,DRAIN 14024 14024-1094 2
COVER,AIR CUT VALVE 14025 14025-1903 2
COVER-COMP,MIXING,INSIDE 14041 14041-1061 2
SEAT-SPRING,VALVE 16007 16007-1117 2
NEEDLE-JET,N53A,FR 16009 16009-1327 1
NEEDLE-JET,N53B,RR 16009A 16009-1328 1
CAP-STARTER PLUNGER 16012 16012-1051 2
CAP-STARTER PLUNGER 16012A 16012-1052 2
SCREW-PILOT AIR 16014 16014-1054 2
PLUNGER,STARTER 16016 16016-1066 2
CHAMBER-FLOAT,COMP 16020 16020-1051 1
VALVE-FLOAT 16030 16030-1057 2
FLOAT 16031 16031-1059 2
CLAMP,FLOAT VALVE 16044 16044-007 2
VALVE,VACUUM,60PS 16126 16126-1173 2
DIAPHRAGM,AIR CUT VALVE 43028 43028-1053 2
BOLT,4X14 92002 92002-1761 4
SCREW,DRAIN,M6X1.0 92009 92009-1434 2
WASHER,PLAIN 92022 92022-1003 2
PIN,FLOAT 92043 92043-1285 2
RING-O,PILOT ADJUST 92055 92055-1002 2
RING-O 92055A 92055-1245 2
RING-O 92055B 92055-1290 2
RING-O 92055C 92055-1291 2
JET-MAIN,#135 92063 92063-1014 2 (RACING USE ONLY)
JET-MAIN,#138 92063A 92063-1015 2 (RACING USE ONLY)
JET-MAIN,2ND,#125 92063B 92063-1069 2 (RACING USE ONLY)
JET-MAIN,2ND,#122 92063C 92063-1073 2 (RACING USE ONLY)
JET-MAIN,2ND,#128 92063D 92063-1074 2 (RACING USE ONLY)
JET-MAIN,#130 92063E 92063-1075 2 (RACING USE ONLY)
JET-MAIN,#132 92063F 92063-1076 2
JET-PILOT,#38 92064 92064-1118 2
JET-PILOT,#35 92064A 92064-1123 2 (OPTION)
SCREW-PAN-CROS 220 220D0408 8
SCREW-PAN-WS-CROS 223 223D0410 4
SCREW-PAN-WS-CROS 223A 223D0512 6
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 2
SPRING,PILOT ADJUST SCREW 92081 92081-1002 2
SPRING,STARTER PLUNGER 92081A 92081-1761 2
SPRING,VACUUM VALVE 92081B 92081-1874 2
SPRING,AIR CUT VALVE 92081C 92081-1891 2
SCREW,DRAIN,M6X0.75 92009A 92009-1551 2
