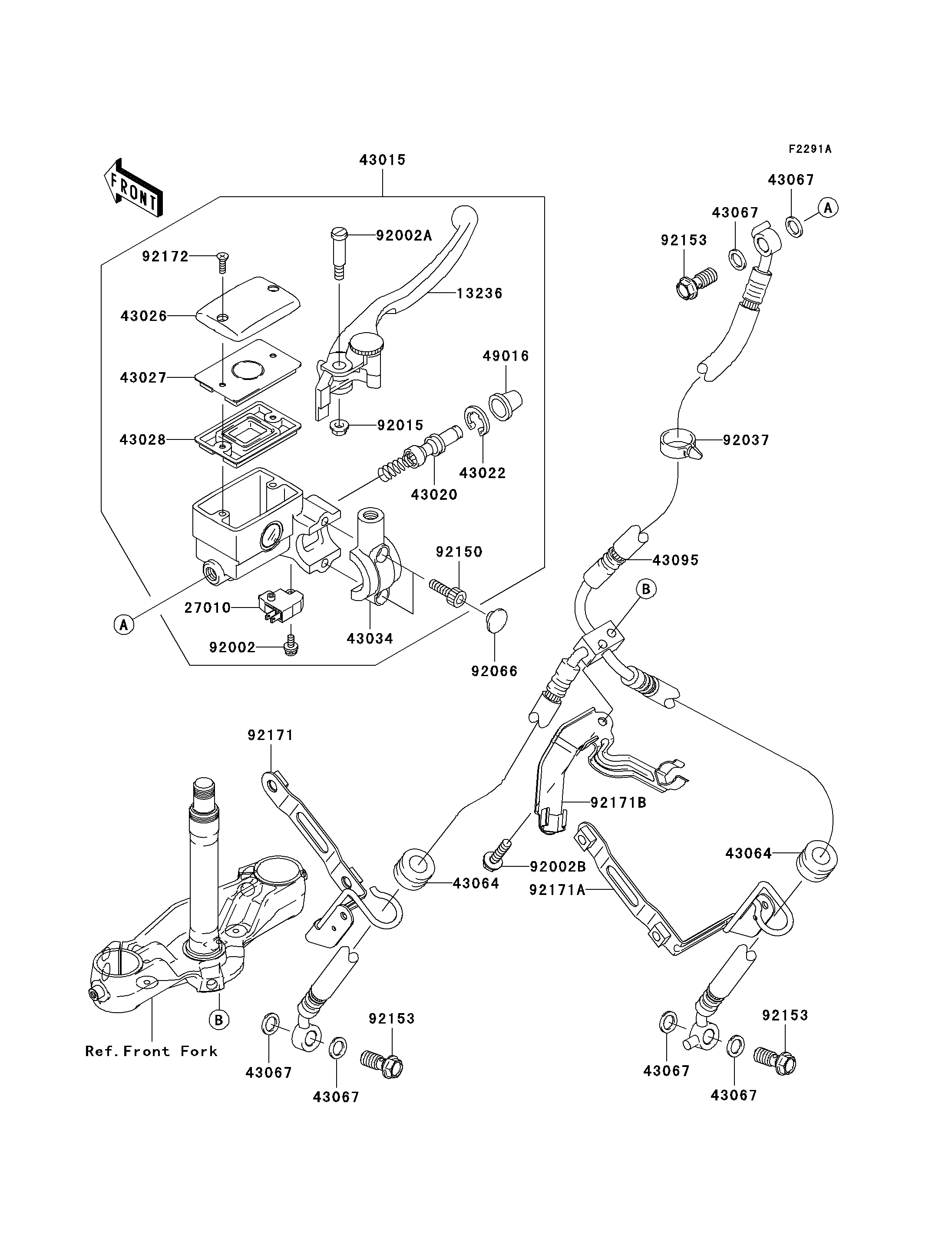

13236
27010
43015
43020
43022
43026
43027
43028
43034
43064
43064
43067
43067
43067
43067
43067
43067
43095
49016
92002
92002A
92002B
92015
92037
92066
92150
92153
92153
92153
92171
92171A
92171B
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP,FRONT BRAKE 13236 13236-1315 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0025 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0003 1
PLATE-DIAPHRAGM 43027 43027-1059 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE 43034 43034-1172 1
GROMMET,HOSE CLAMP 43064 43064-006 2
WASHER,10.5X15X1.5 43067 43067-001 6
HOSE-BRAKE,FR 43095 43095-0168 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT,LEVER SET 92002A 92002-1561 1
BOLT,6X26.6 92002B 92002-1912 1
NUT,FLANGED,6MM 92015 92015-1528 1
CLAMP,HOSE 92037 92037-1827 1
PLUG 92066 92066-1301 2
BOLT,SOCKET,6MM 92150 92150-1025 2
BOLT,OIL,L=23 92153 92153-0627 3
CLAMP,BRAKE HOSE,FR,LH 92171 92171-0415 1
CLAMP,BRAKE HOSE,FR,RH 92171A 92171-0416 1
CLAMP,BRAKE HOSE 92171B 92171-0449 1
SCREW 92172 92172-0083 2
