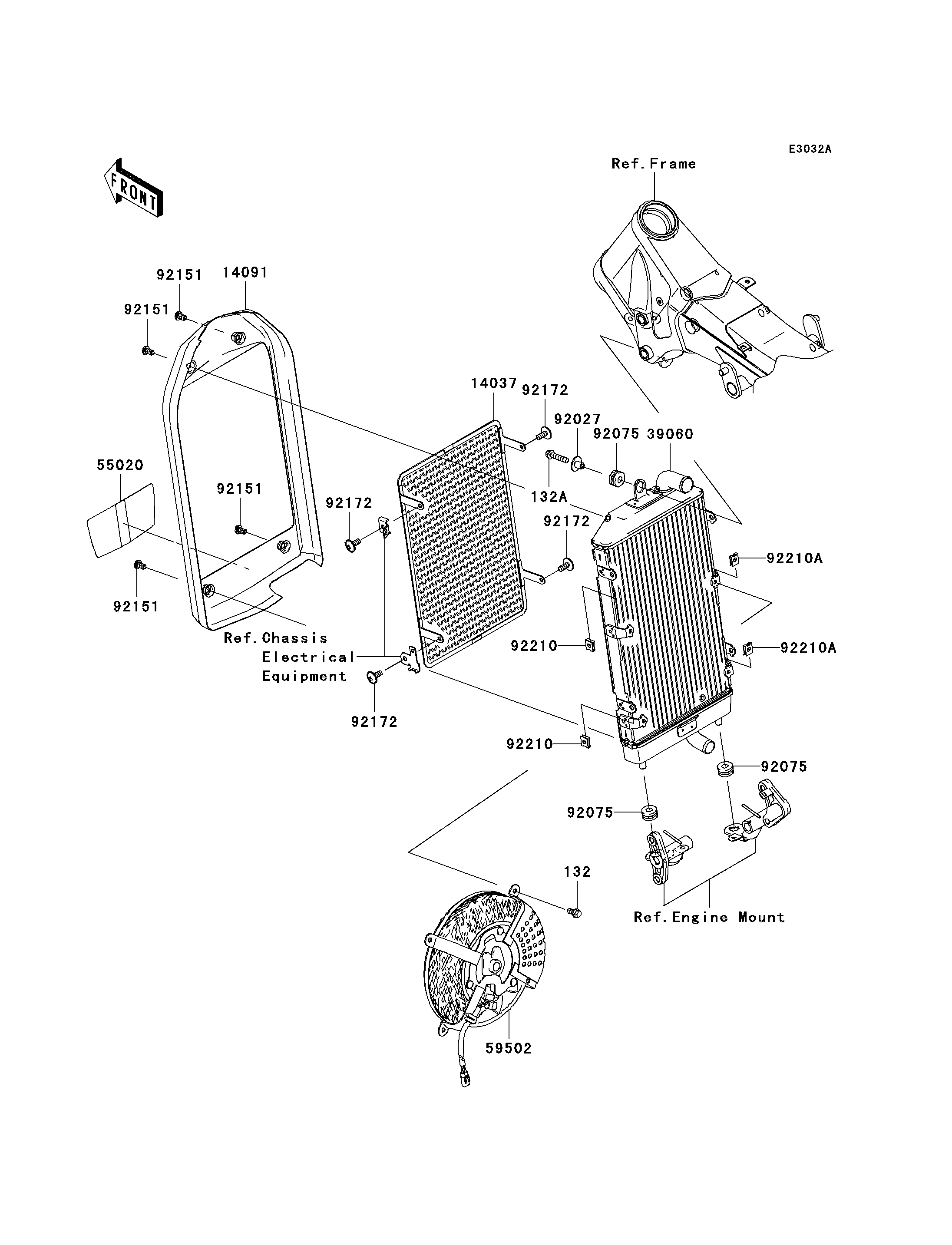

132
132A
14037
14091
39060
55020
59502
92027
92075
92075
92075
92151
92151
92151
92151
92172
92172
92172
92172
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132J0610 4
BOLT-FLANGED-SMALL,6X20 132A 132L0620 1
SCREEN 14037 14037-0005 1
COVER 14091 14091-0356 1
RADIATOR 39060 39060-0018 1
GUARD 55020 55020-0100 1
FAN-ASSY 59502 59502-0005 1
COLLAR,L=13.1,BLACK 92027 92027-1450 1
DAMPER 92075 92075-1690 3
BOLT,6X10 92151 92151-1809 4
SCREW,6X14 92172 92172-0004 4
NUT 92210 92210-1125 4
NUT 92210A 92210-1323 4
