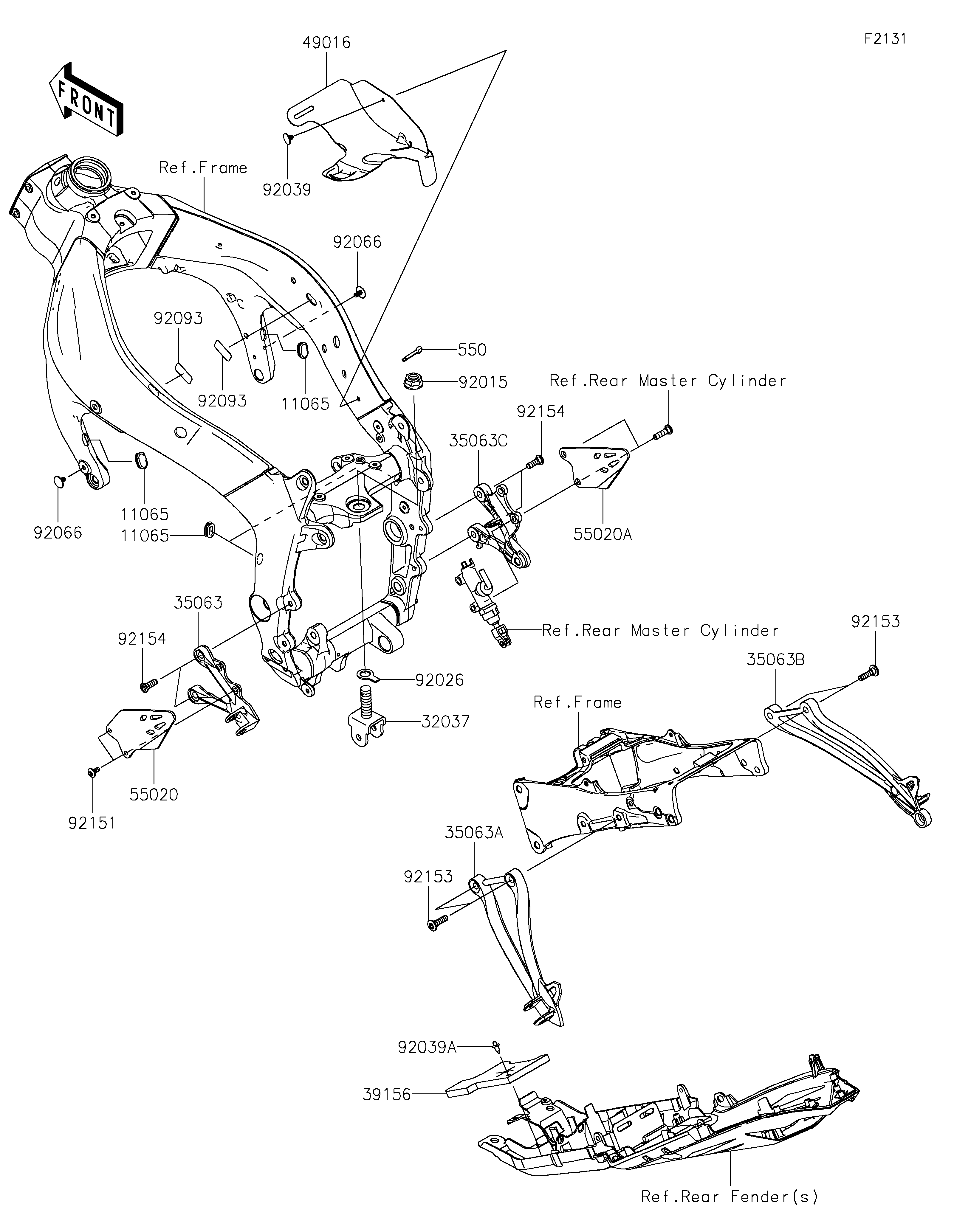

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0095 4
BRACKET-SHOCKABSORBER 32037 32037-0412 1
STAY,FR,LH,F.S.BLACK 35063 35063-0160-18R 1
STAY,RR,LH,F.S.BLACK 35063A 35063-0444-18R 1
STAY,RR,RH,F.S.BLACK 35063B 35063-0445-18R 1
STAY,FR,RH,F.S.BLACK 35063C 35063-0590-18R 1
PAD 39156 39156-1000 1
COVER-SEAL 49016 49016-0666 1
GUARD,HEEL,LH 55020 55020-2226 1
GUARD,HEEL,RH 55020A 55020-2227 1
NUT,FLANGED,16MM 92015 92015-1881 1
SPACER,16.5X26X2 92026 92026-0747 1
RIVET 92039 92039-0065 1
RIVET 92039A 92039-0068 1
PLUG,6X17 92066 92066-0751 2
SEAL 92093 92093-0154 2
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,SOCKET,8X30 92153 92153-1630 4
BOLT,SOCKET,8X25 92154 92154-1149 4
PIN-COTTER,3X25 550 550S3025 1
