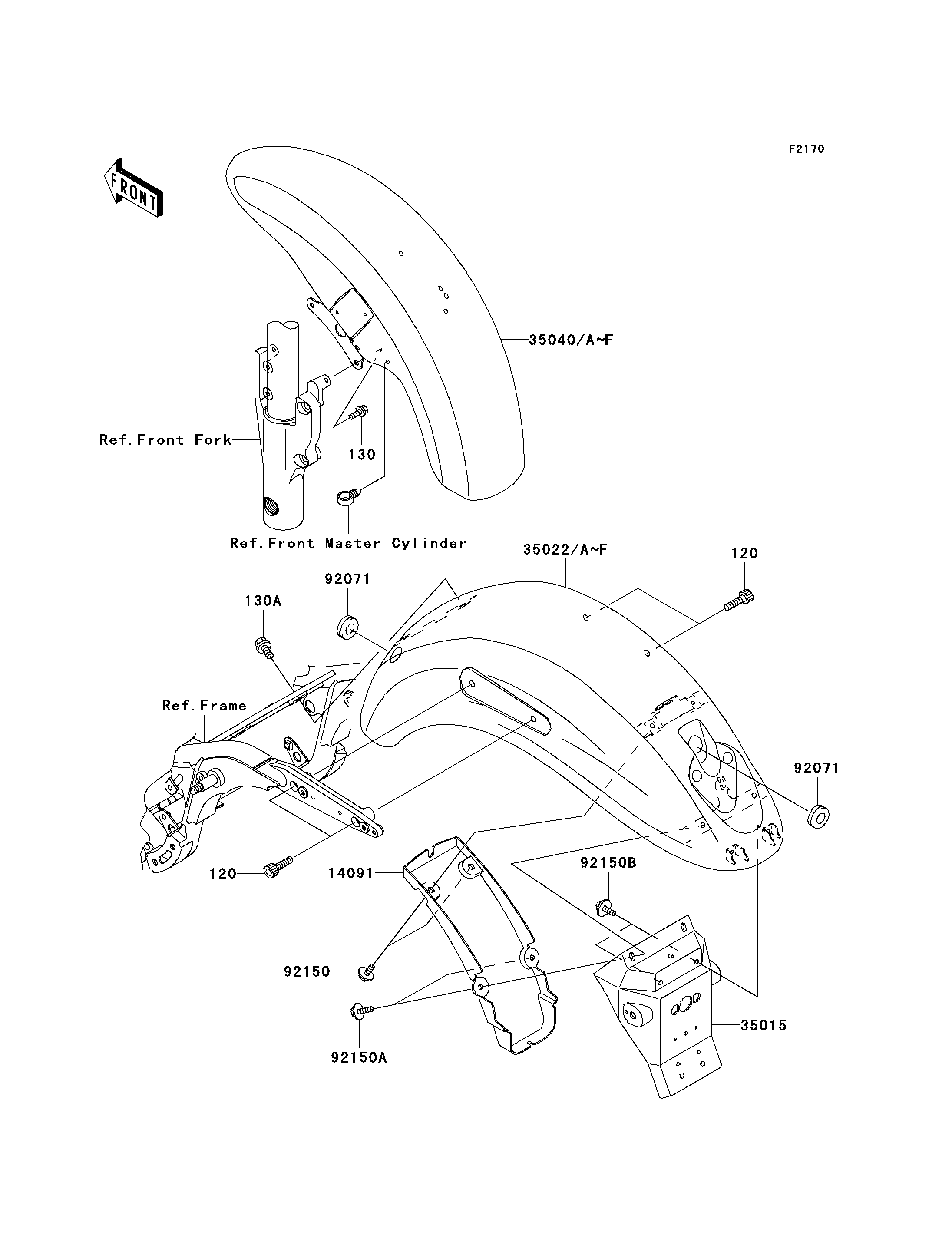

2003 Vulcan 1500 Mean Streak - Fenders

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130A
14091
35015
35022A
35022B
35022E
35040A
35040B
35040E
92071
92071
92150
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30,BLACK 120 120S0830 4
BOLT-FLANGED,6X16,BLACK 130 130J0616 4
BOLT-FLANGED,8X16,BLACK 130A 130J0816 2
COVER,TAIL LAMP 14091 14091-1348 1
FLAP-COMP 35015 35015-1051 1
FENDER-COMP-REAR,BLACK 35022A 35022-1354-B5 1
FENDER-COMP-REAR,M.P.SILVER 35022B 35022-1354-GU 1
FENDER-COMP-REAR,P.RED 35022E 35022-1354-234 1
FENDER-COMP-FRONT,BLACK 35040A 35040-1053-B5 1
FENDER-COMP-FRONT,M.P.SILVER 35040B 35040-1053-GU 1
FENDER-COMP-FRONT,P.RED 35040E 35040-1053-234 1
GROMMET 92071 92071-1265 2
BOLT,FLANGED,6X14 92150 92150-1689 2
BOLT,6X20 92150A 92150-1801 2
BOLT,FLANGED,6X16 92150B 92150-1894 2
FENDER-COMP-REAR,M.M.PURPLE 35022F 35022-1354-3F 1 CAUS
FENDER-COMP-FRONT,M.M.PURPLE 35040F 35040-1053-3F 1 CAUS
