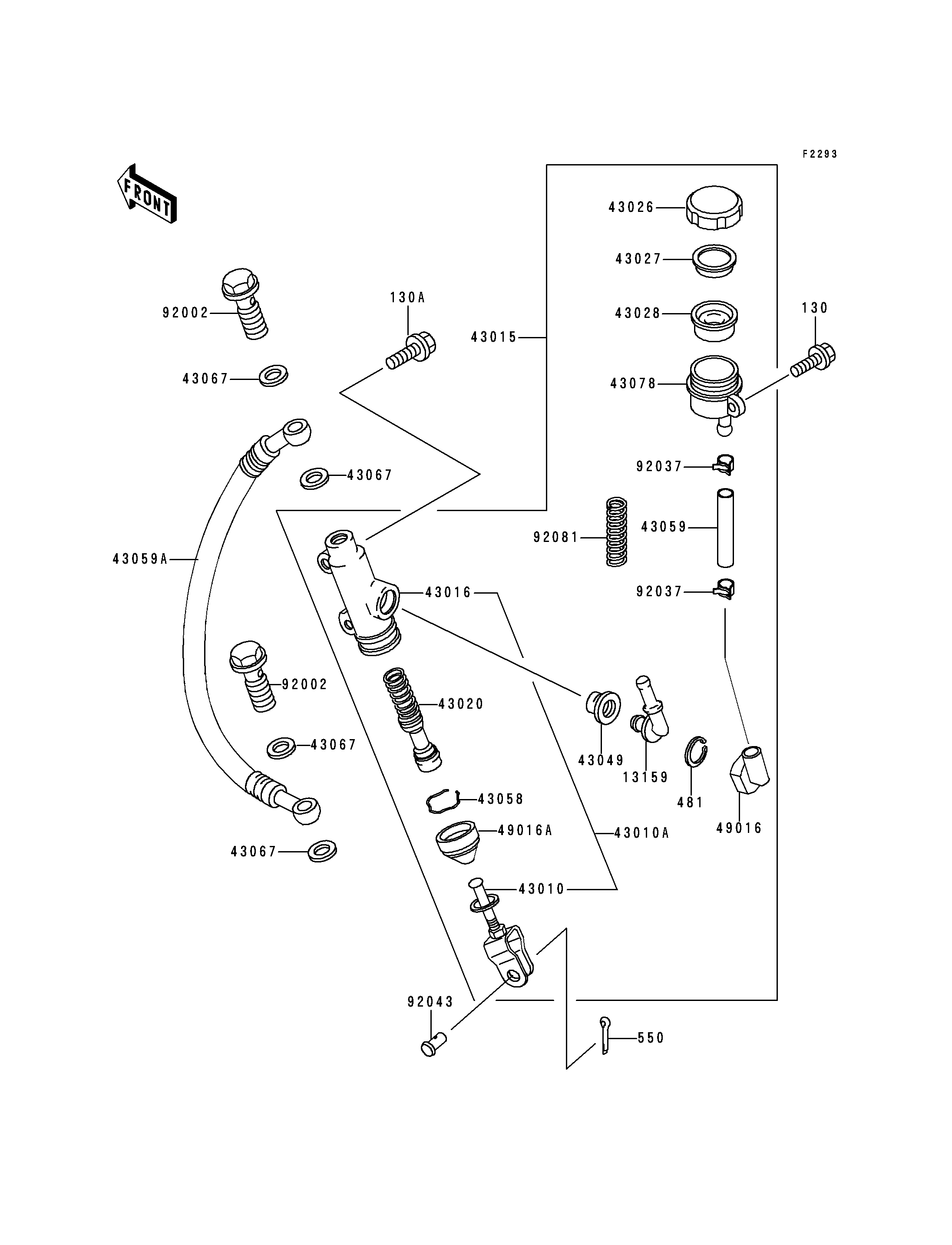

Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

130
130A
481
550
13159
43010
43010A
43015
43016
43020
43026
43027
43028
43049
43058
43059
43059A
43067
43067
43067
43067
43078
49016
49016A
92002
92002
92037
92037
92043
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130B0620 1
BOLT-FLANGED,8X30 130A 130J0830 2
CIRCLIP-TYPE-C,25MM 481 481J2500 1
PIN-COTTER,2.0X15 550 550D2015 1
CONNECTOR 13159 13159-1009 1
ROD-ASSY-BRAKE,RR 43010 43010-1051 1
ROD-ASSY-BRAKE,RR/MASTER CYL 43010A 43010-5006 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1134 1
CYLINDER-MASTER,RR 43016 43016-1101 1
PISTON-COMP-BRAKE 43020 43020-1036 1
CAP-BRAKE 43026 43026-1016 1
PLATE-DIAPHRAGM 43027 43027-1005 1
DIAPHRAGM 43028 43028-1016 1
PACKING 43049 43049-1008 1
RING,ROD STOPPER 43058 43058-004 1
HOSE-BRAKE,RR,L=138 43059 43059-1100 1
HOSE-BRAKE,RR 43059A 43059-1786 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1009 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1034 1
COVER-SEAL,BRAKE PISTON 49016A 49016-1048 1
BOLT,OIL,L=23 92002 92002-1888 2
CLAMP,BRAKE HOSE 92037 92037-1391 2
PIN,8X16 92043 92043-1013 1
SPRING,HOSE PROTECTER 92081 92081-1335 1
